Omicron CPC 100 Reference Manual

CPC 100 V1.41
5 - 18
Test Settings

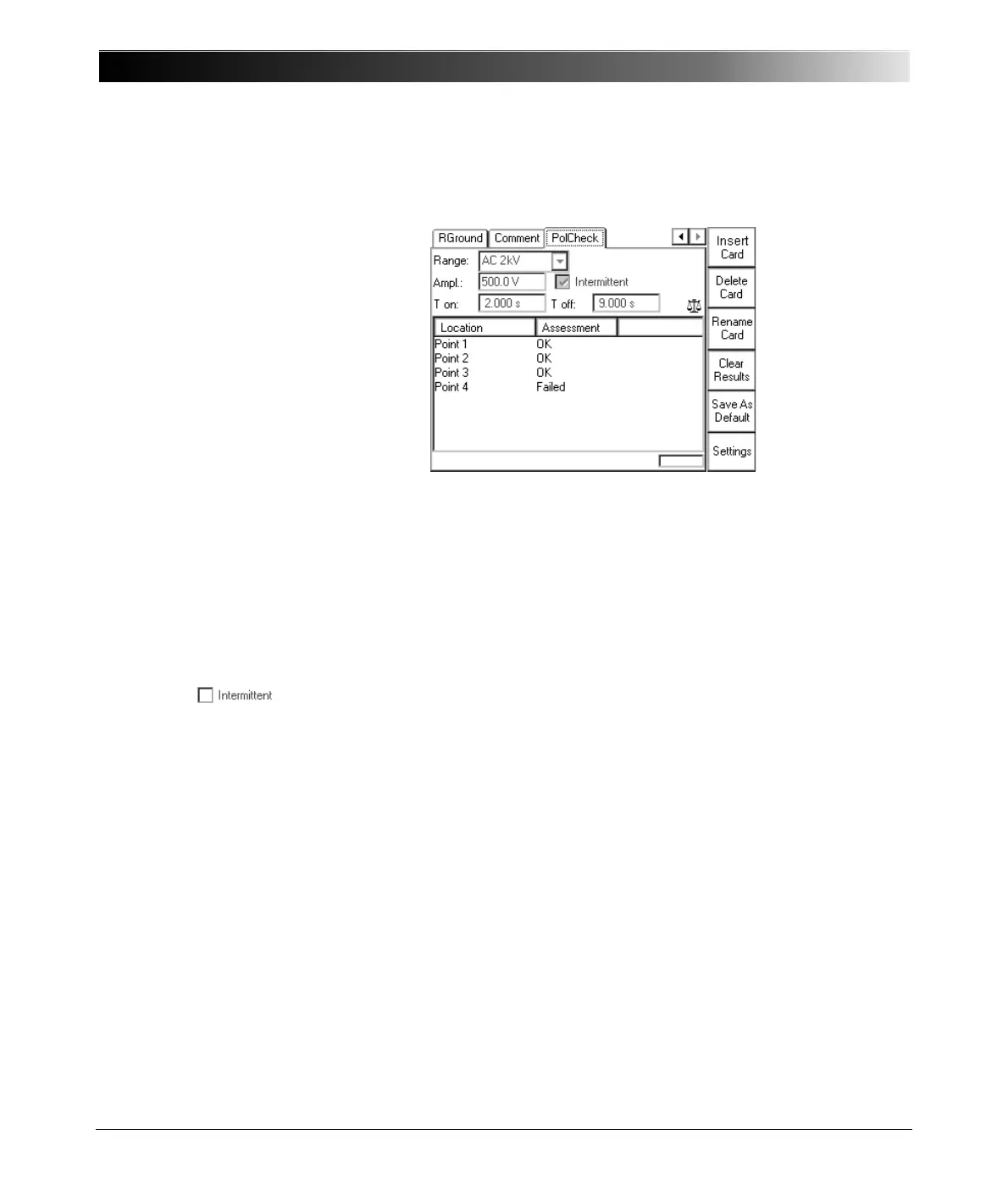

Figure 9:
PolCheck test card with
test points
Navigate to the parameter fields, and enter the values according to your test
requirements:
Clear the option "Intermittent" when working with voltage outputs.
Range: output range
Ampl.: maximum amplitude of polarity check output signal. Any value
between the minimum and maximum of the selected range is
possible.
