Scope of Transformer Tests
Go to the Test Card View and press I NSERT C ARD.
Use the context-dependent U
P /DOWN menu keys to the right, or the
handwheel, to browse through the structure. On Transformer, press E
NTER.
Alternatively, press the accelerator key to open Insert a new test card.
Transformer comprises the following test cards:

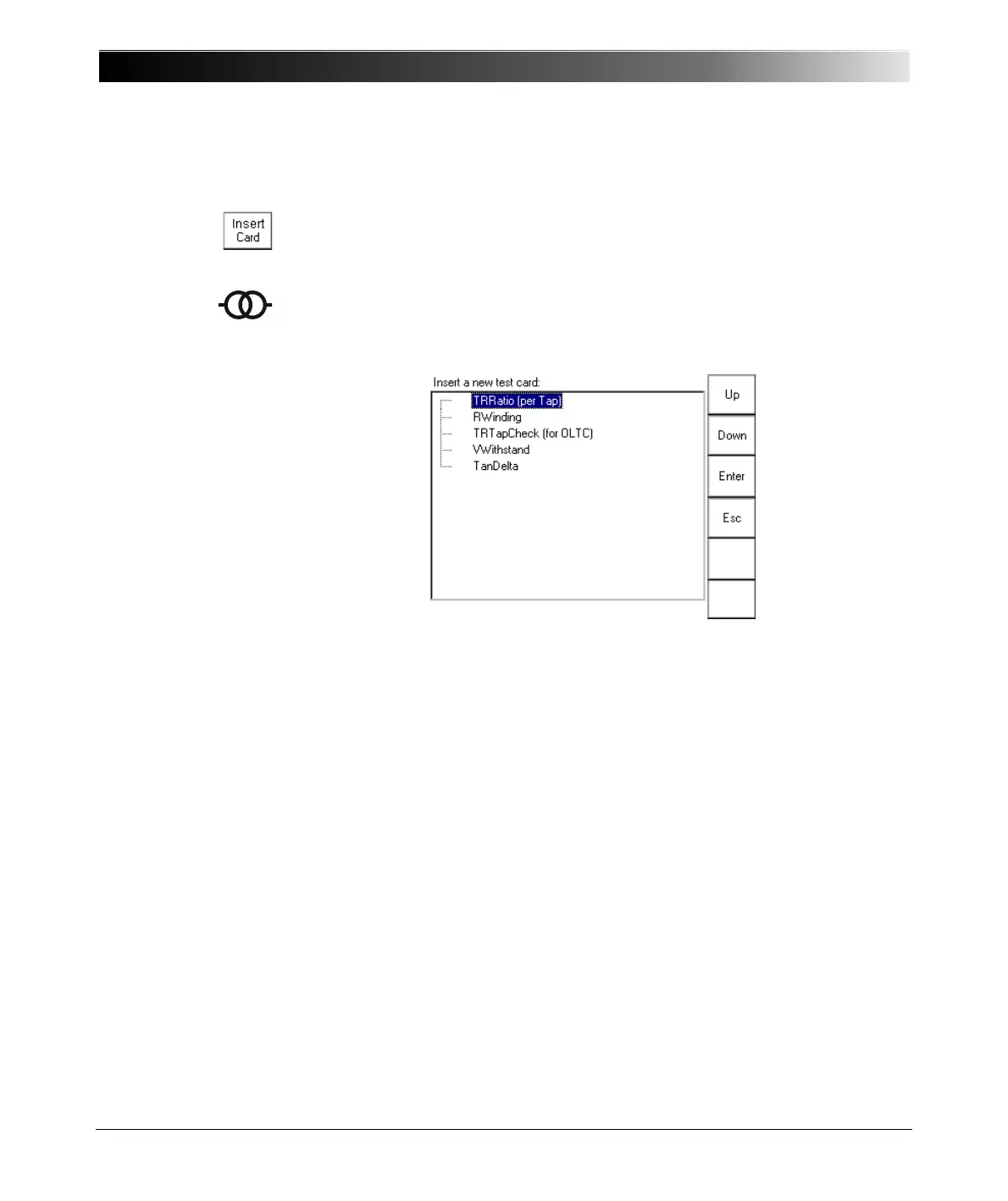

Figure 1:
Inserting Transformer
test cards
Highlight the test card of your choice either by navigating with the handwheel or
by using the context-dependent U
P /DOWN menu keys, and press E NTER.
Note: The test card TRRatio (per Tap) employs the method of frequency-
selective measurement, which is used to filter out interferences as
they usually occur in substations.
To learn more about frequency-selective measurement, please refer
to ”The Frequency-Selective Measurement” on page 3-6.

