CPC 100 V1.41
8 - 16
Generating an Intermittent High-Current Output
In a substation, certain control measurements and/or performance checks
require the injection of high current at one location, and the respective
measurement at another, sometimes remote location.
When CPC 100 outputs high current, duty cycles may apply to the selected AC
output range. The allowed pulse duty cycle ("on/off" operation) depends on the
selected range, the ambient temperature, the operating conditions of CPC 100
etc. For more information about duty cycles refer to ”CPC 100 Outputs” on page
16-5.
If you want to output high current for a longer period of time, perform such a test
by creating two states in Sequencer:
– one state that outputs high current
– and another state with a sufficient pause.
The duration of both states need to comply with the permitted duty cycle. This
will prevent an automatic shutdown of CPC 100 due to an overload.

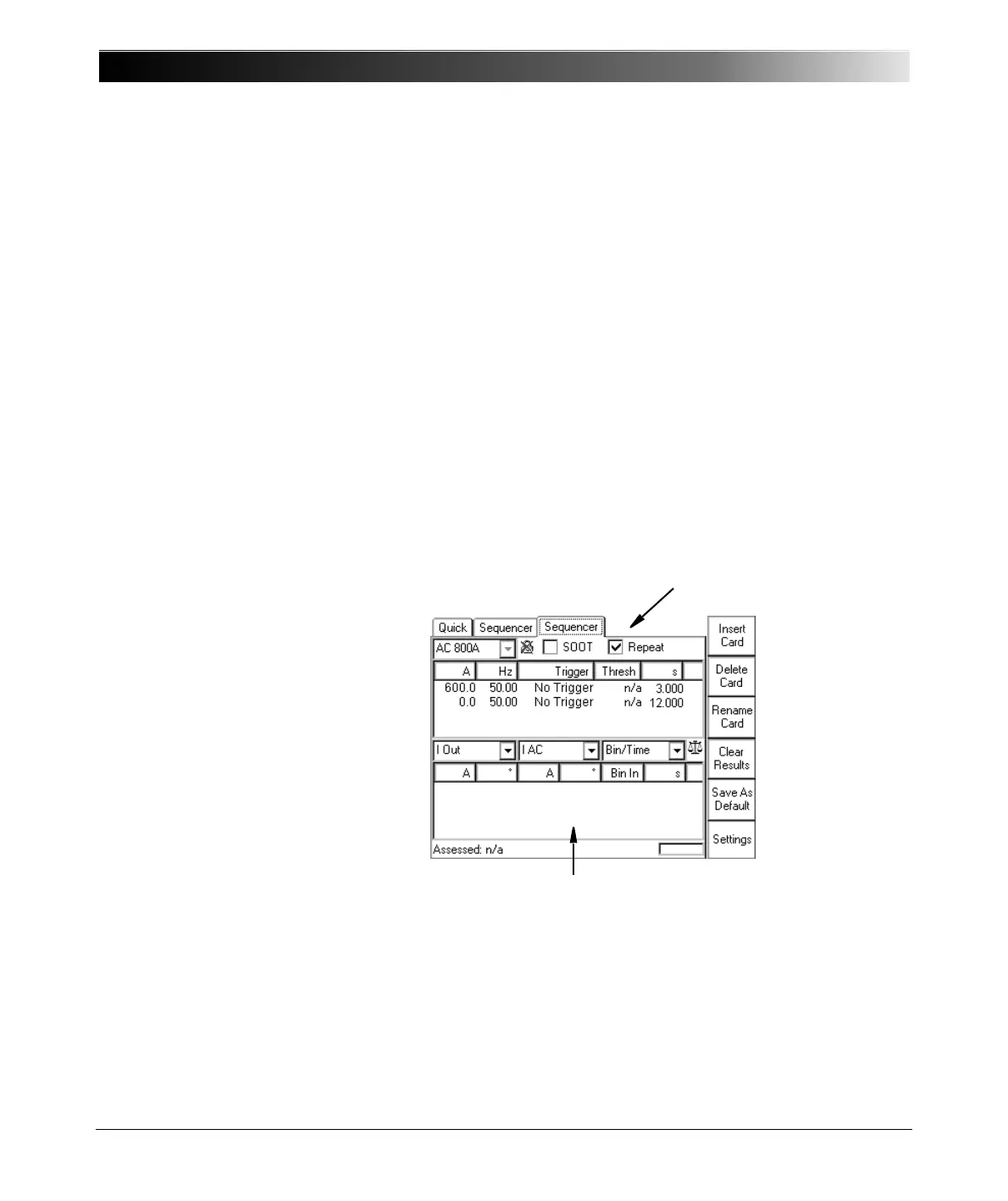

Figure 11:
Sequencer test card
with two states for an
intermittent high-current
output
Set the states in such a way that they constantly repeat: select "Repeat".
Measurement table not relevant for this test.
