Others - Sequencer
8 - 15
Since the "Repeat" check box is cleared, the sequence of five states executes
exactly one time and then terminates.

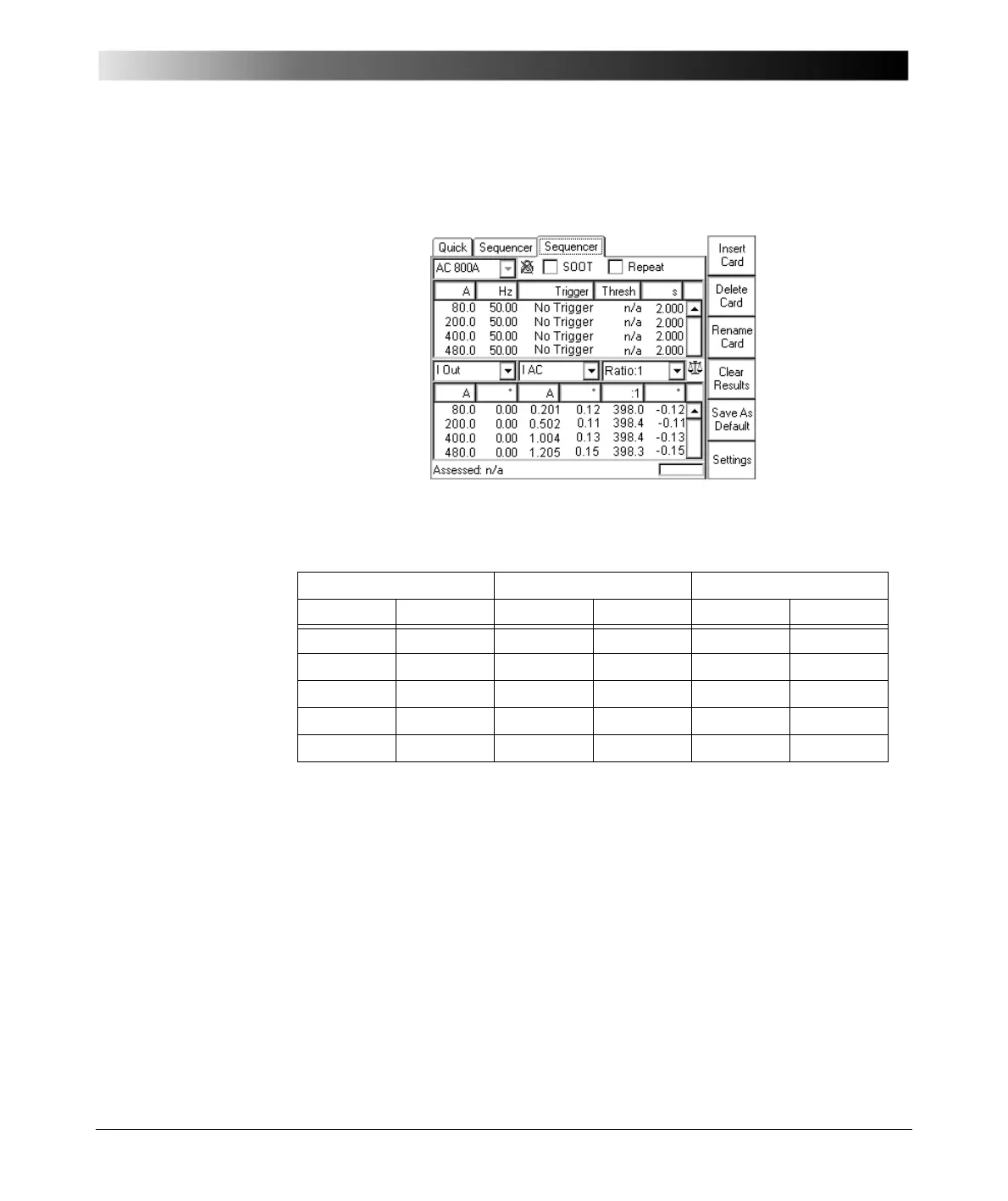

Figure 10:
Sequencer test card
with parameters and
measurements of the
five states (states 2...5
shown)
Measured values of the states 1 ... 5
I Out IAC Ratio:1
A°A°:1°
20 0 0.051 0.11 392.2 -0.11
80 0 0.201 0.12 398.0 -0.12
200 0 0.502 0.11 398.4 -0.11
400 0 1.004 0.13 398.4 -0.13
480 0 1.205 0.15 398.3 -0.15
