Omicron CPC 100 Reference Manual

Getting Started with Quick
3 - 3

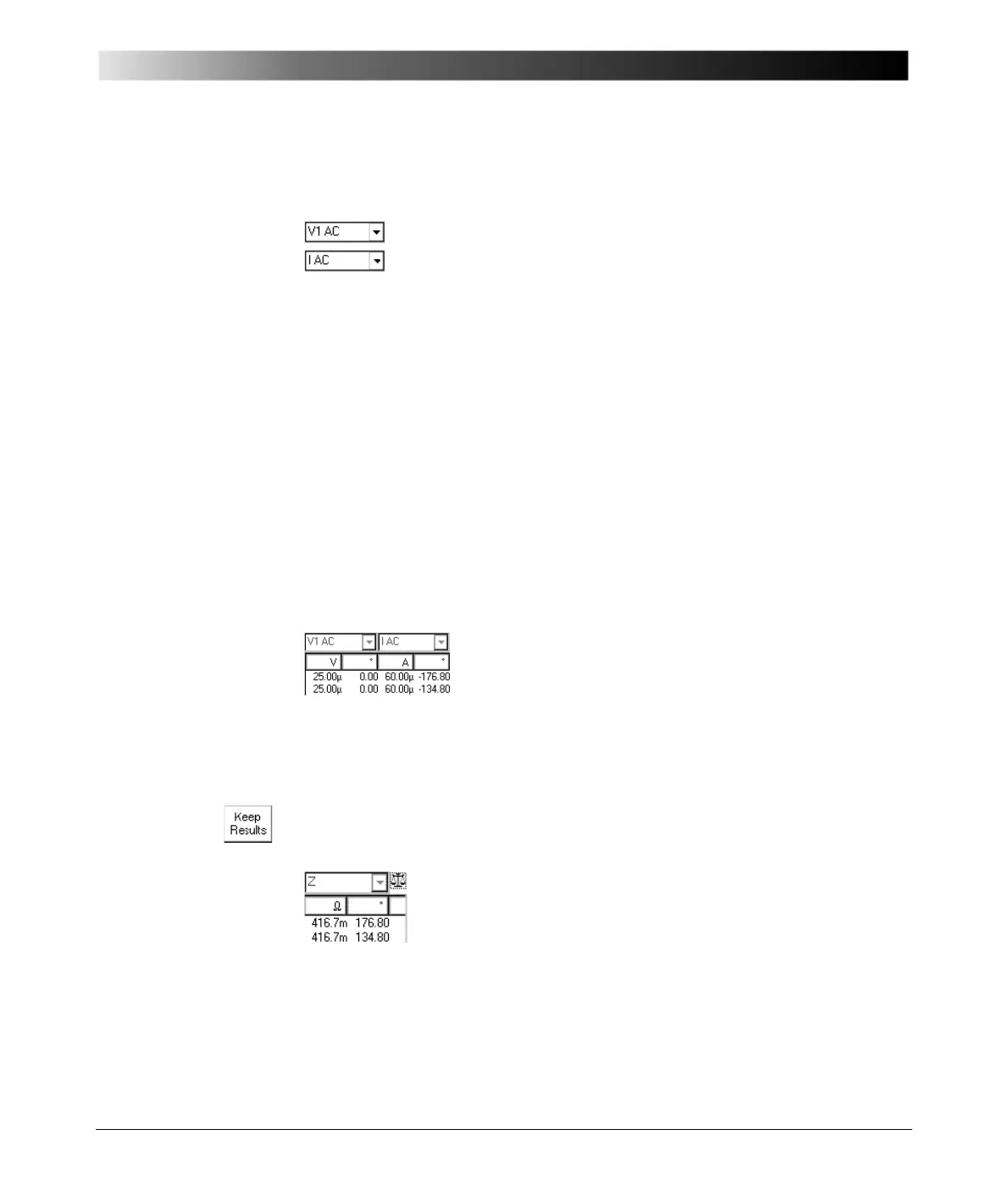

Measurement Settings
After having pressed K EEP RESULTS, the combo boxes of the measured
quantities are disabled, that is, the quantities cannot be changed.
Measured quantities (
⇒ Glossary)
Combo boxes to select the first and second quantity to
measure. Possible choices at each combo box:
•V1AC
•V1ACsel
1
•V2AC
•V2ACsel
•VOut
•VOutsel
•VT
•VTsel
•IAC
• I AC sel
1. sel = frequency-selective. To learn more about frequency-selective measurements, refer to ”The
Frequency-Selective Measurement” on page 6 of this chapter.
•IOut
•IOutsel
• I Clamp
• I Clamp sel
•CT
•CTsel
•VDC
•IDC
• f V1 AC
•fOut
V Out and I Out represent the measured values of the
actual output range.
Each combo box has two corresponding cells in the
measurement table below that display the measured
values, where possible; otherwise"n/a" is displayed.
Note: Not all measured quantities are available in all output ranges.
Calculated value
Both the items to select from in this combo box and the
corresponding display at the measurement table below
depend on the selected measured quantities.
In this combo box you determine what the measurement
table displays (see Table ”Display of calculated value in
measurement table” on page 4 of this chapter).

