Others - Sequencer
8 - 5
Next set the state(s) parameters,that is, the parameters that apply to this
particular state only. Each line of the states table represents one state.

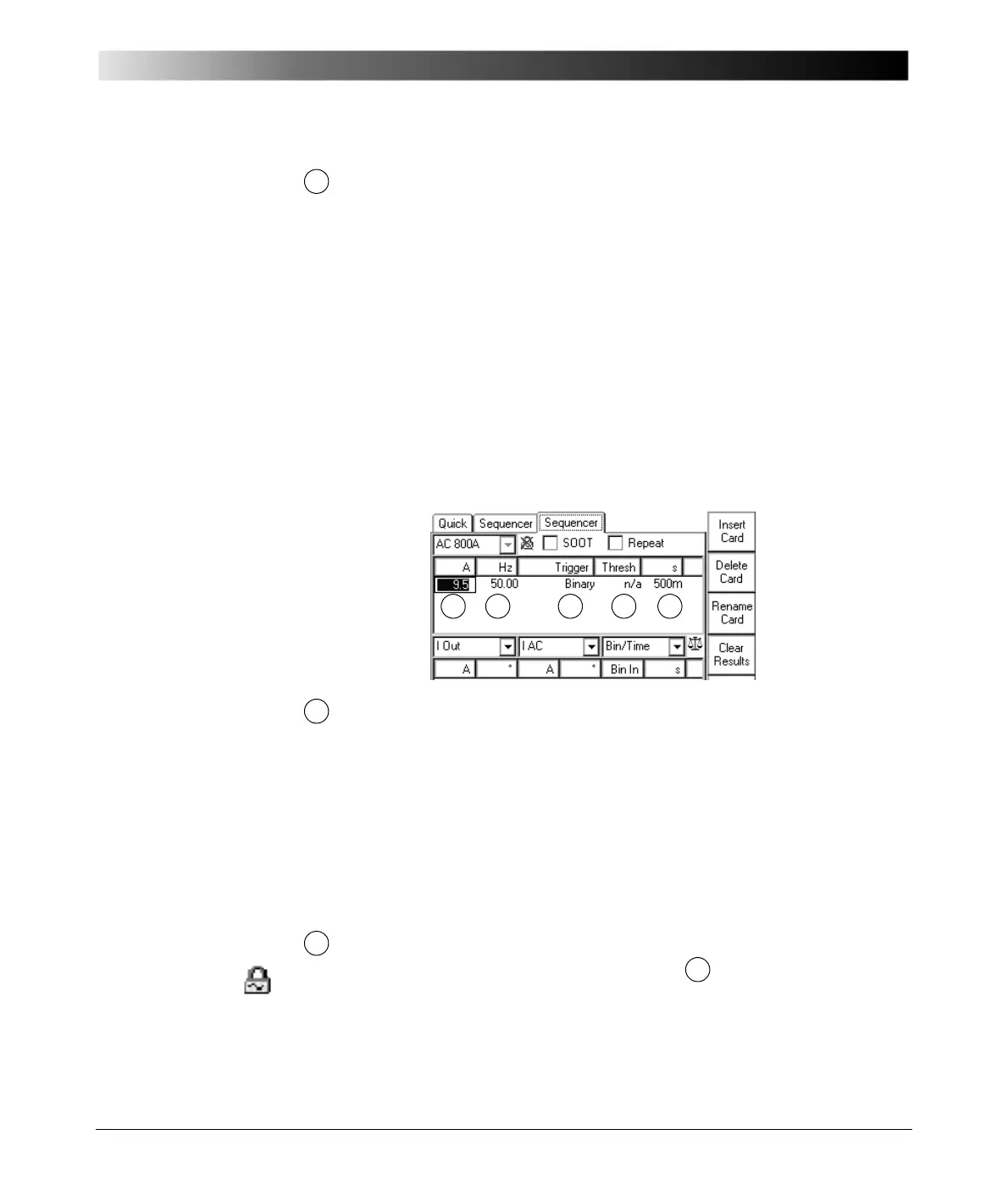

Figure 4:
Step 2 - Set the state
parameters
"Repeat" check box selected:
• A sequence of states is executed from state 1 to state x, and then
restarts with executing state 1 again. If "SOOT" is additionally
selected, the complete sequence is prematurely terminated if during
the execution of one of its states this state’s specified trigger condition
occurs.
"Repeat" check box cleared:
• A sequence of states is executed from state 1 to state x, and then
stops. If "SOOT" is additionally selected, the complete sequence is
prematurely terminated if during the execution of one of its states this
state’s specified trigger condition occurs.
Turn the handwheel to set the focus onto the states table’s first cell; in
Figure 4 above it is the output current. Then press the handwheel. The
cell turns into an entry field. Now set the output current value of your
choice by turning the handwheel, or use the number keys of CPC 100
soft-touch keyboard. Press E
NTER or the handwheel to acknowledge
your setting and move to the next table cell by turning the handwheel.
Note that the units of the states table (the table’s columns) depend on
the selected output range.
On applications with overload it is recommended not to use currents
above 600A without a current booster.
Frequency of the output signal.
If "Sync w/ V1AC" was selected (also refer to ), the table column
displays the phase angle of the output rather than the frequency. Set the
phase angle value relative to the phase angle of the V1 AC input signal.
To Next Page
