Omicron CPC 100 Reference Manual

Introduction
2 - 5

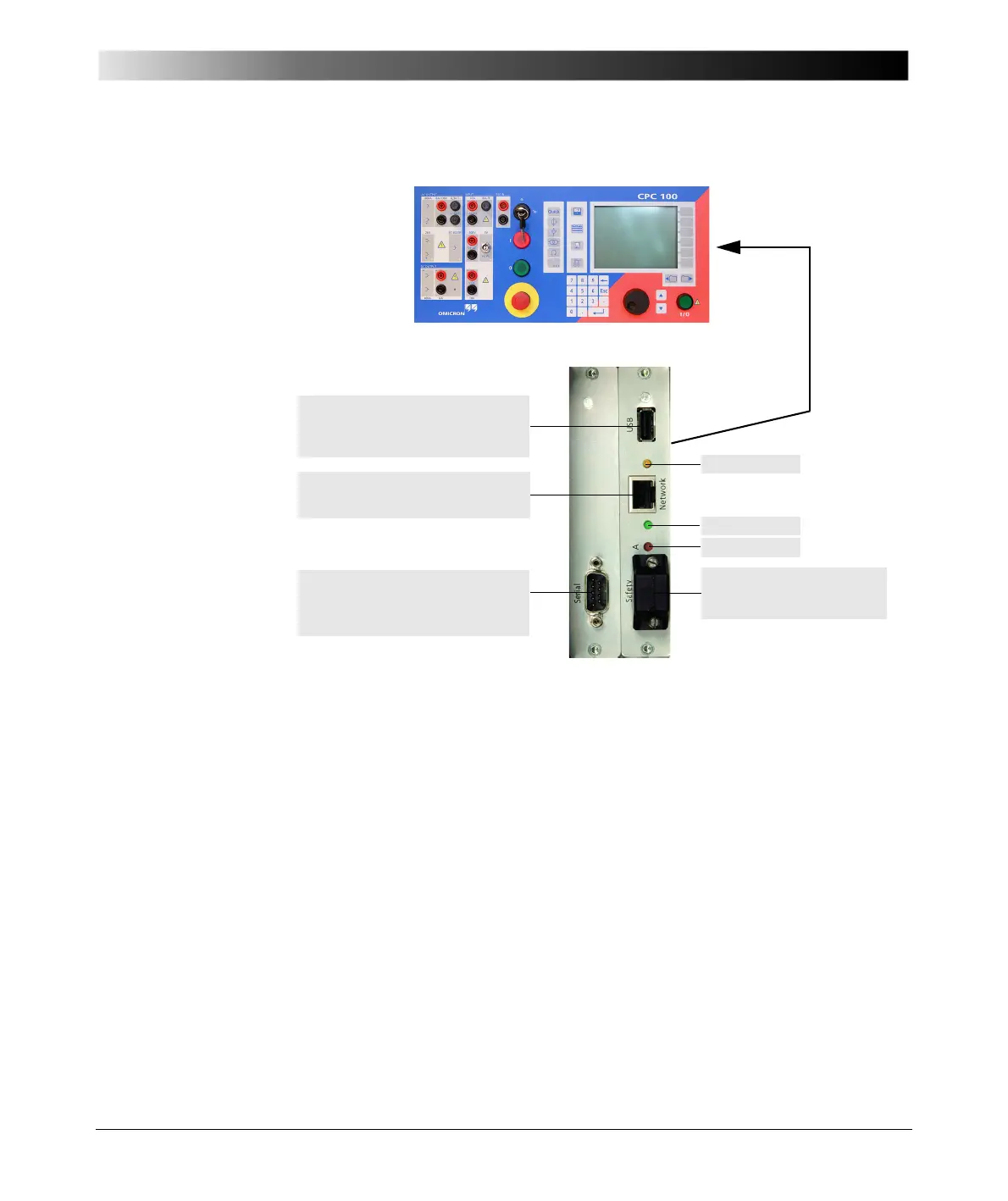

Figure 4:
ePC interfaces of the
CPC 100 V1
The CPC 100 V1 supports the USB interface 1.1 and 2.0 for connecting the USB
memory stick shipped with the CPC 100.
Note: The full functionality is guaranteed only for the stick delivered with the
CPC 100.
The serial and safety interfaces are identical with the CPC 100 V0 version (see
above). The network interface is an auto-crossover Ethernet connector that can
be connected to a network hub or directly to a PC or a notebook.
The CPC 100 V1 provides the following LEDs on the ePC interface:
• Green LED lights if CPC 100 is properly connected to a PC or network.
• Yellow LED lights if data is transferred from or to the network.
• Red LED serves for diagnosis purposes.
USB connector for connecting
OMICRON USB memory sticks
(see below)
RJ-45 socket for connecting CPC 100
to a PC or a network hub
Serial interface connector for
connecting optional CP TD1 test set
(see item 2 above)
Connector for external safety
functions (see item 3 above)
Red LED
Yellow LED
Green LED

