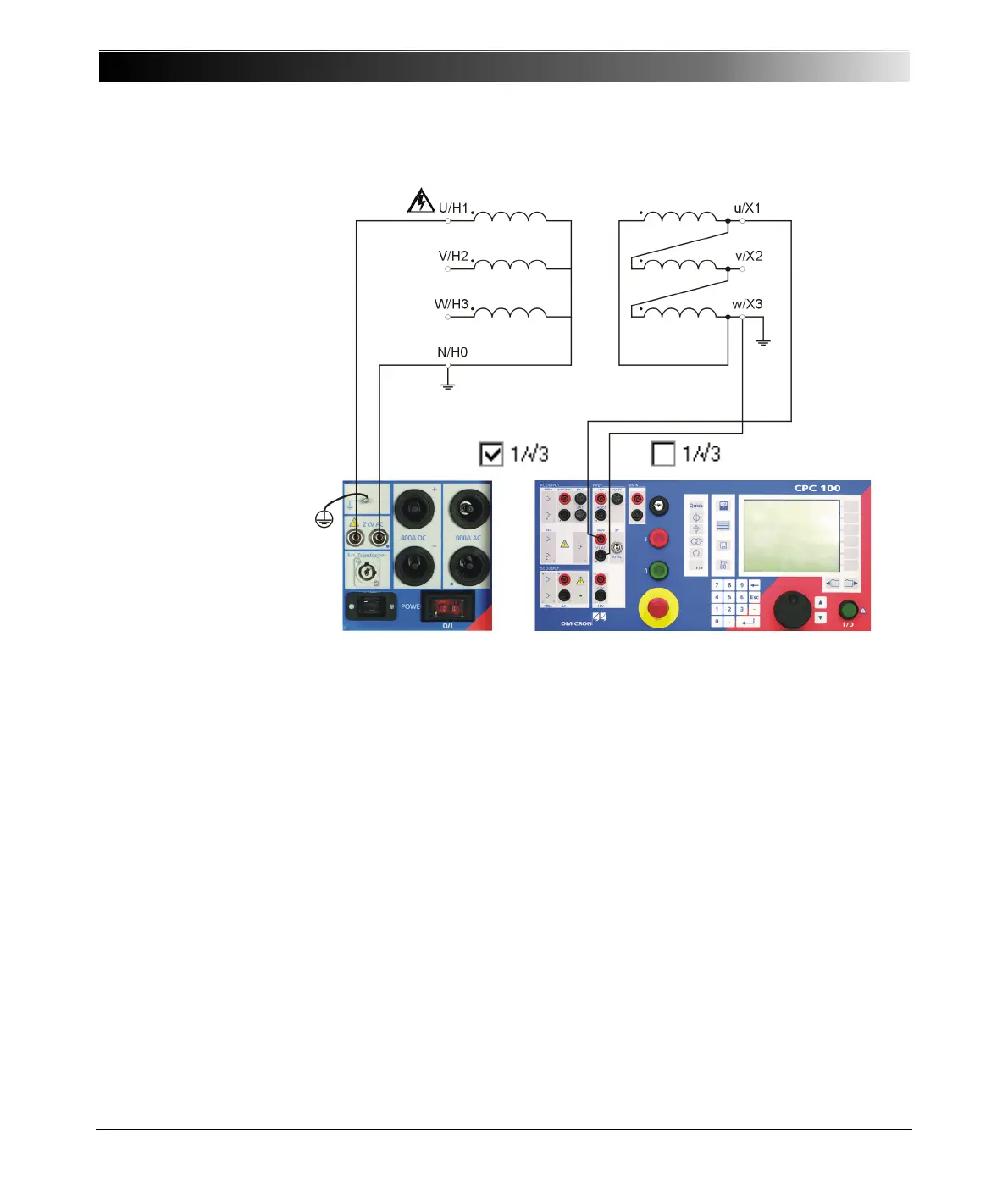

Figure 3:
Setup for testing a
power transformer ratio:
Yd5 transformer,
primary side star
connection, secondary
side delta connection
with a 5x30°=150°
phase shift.
