CPC 100 V1.41
1 - 10
However, in case of an internal insulation fault these outputs may
carry up to 300V. Consider these outputs life-hazardous!
– Always insert connectors completely.

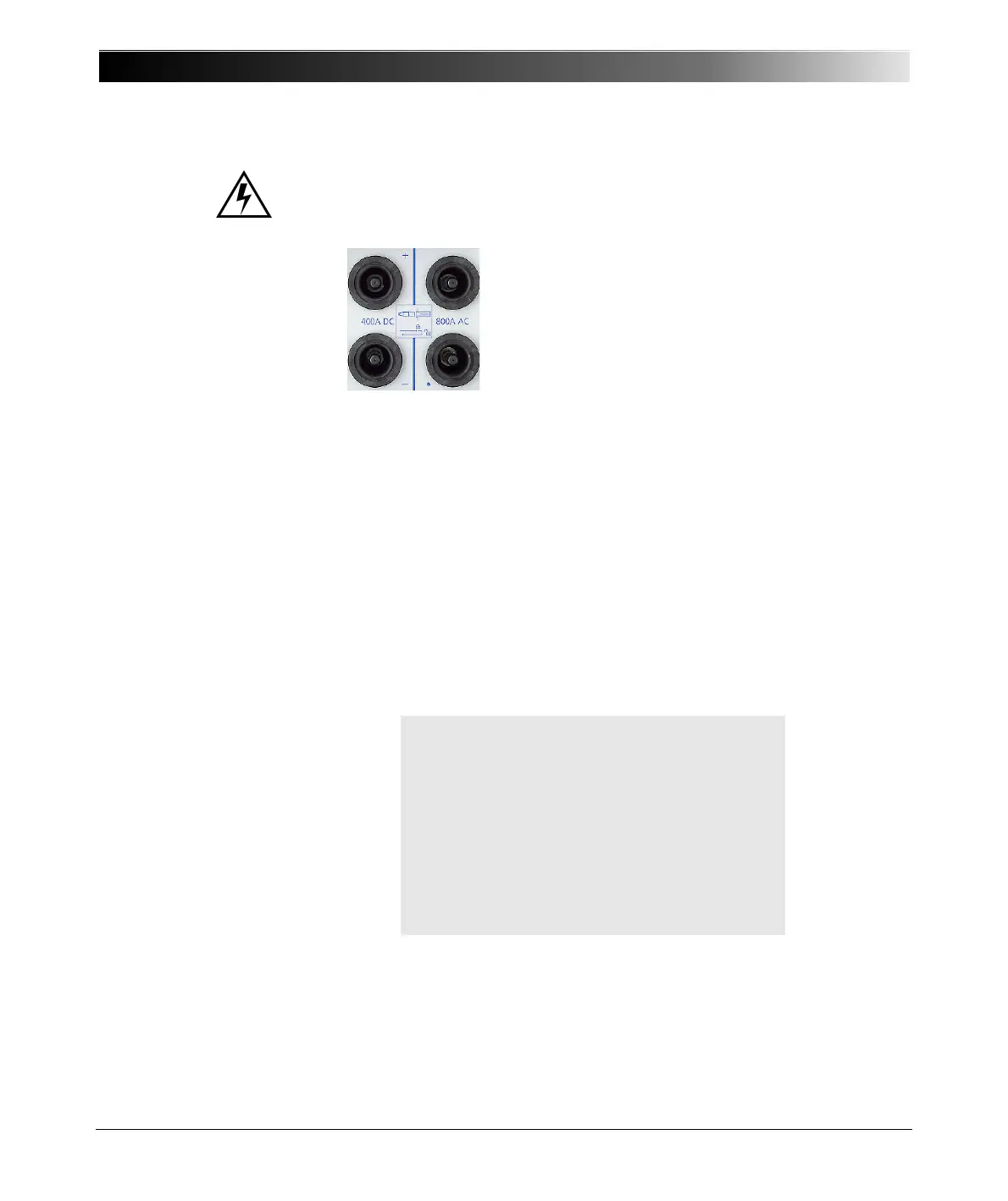

The counterpart of the high-current sockets are
locking connectors.
To lock these connectors safely, insert them carefully
until you feel a "click" position. Now they are locked.
Confirm this by trying to pull them out. This should not
be possible now.
To remove the locking connectors again, unlock them
by pushing them in first, and then pull them out.
– The high-current cables for both the 800A AC and 400A DC outputs are
equipped with connection clamps at one end. If these connection clamps
are attached to a test object’s terminal that is situated above your head,
make sure the clamp is securely attached. Due to the weight of the cables
the clamp may become loose and fall down.
• Do not operate CPC 100 under ambient conditions that exceed the
temperature and humidity limits listed at ”Technical Data” on page 16-1.
• Do not operate CPC 100 in the presence of explosives, gas or vapors.
• Opening CPC 100 invalidates all warranty claims.
•If CPC 100 or any add-on device or accessory does not seem to function
properly, do not use it anymore. Please call the OMICRON hotline.
FOR YOUR OWN SAFETY
Always follow the 5 safety rules:
1. Insulate
2. Secure to prevent reconnecting
3. Check isolation
4. Earth and short-circuit
5. Cover or shield neighboring live parts
