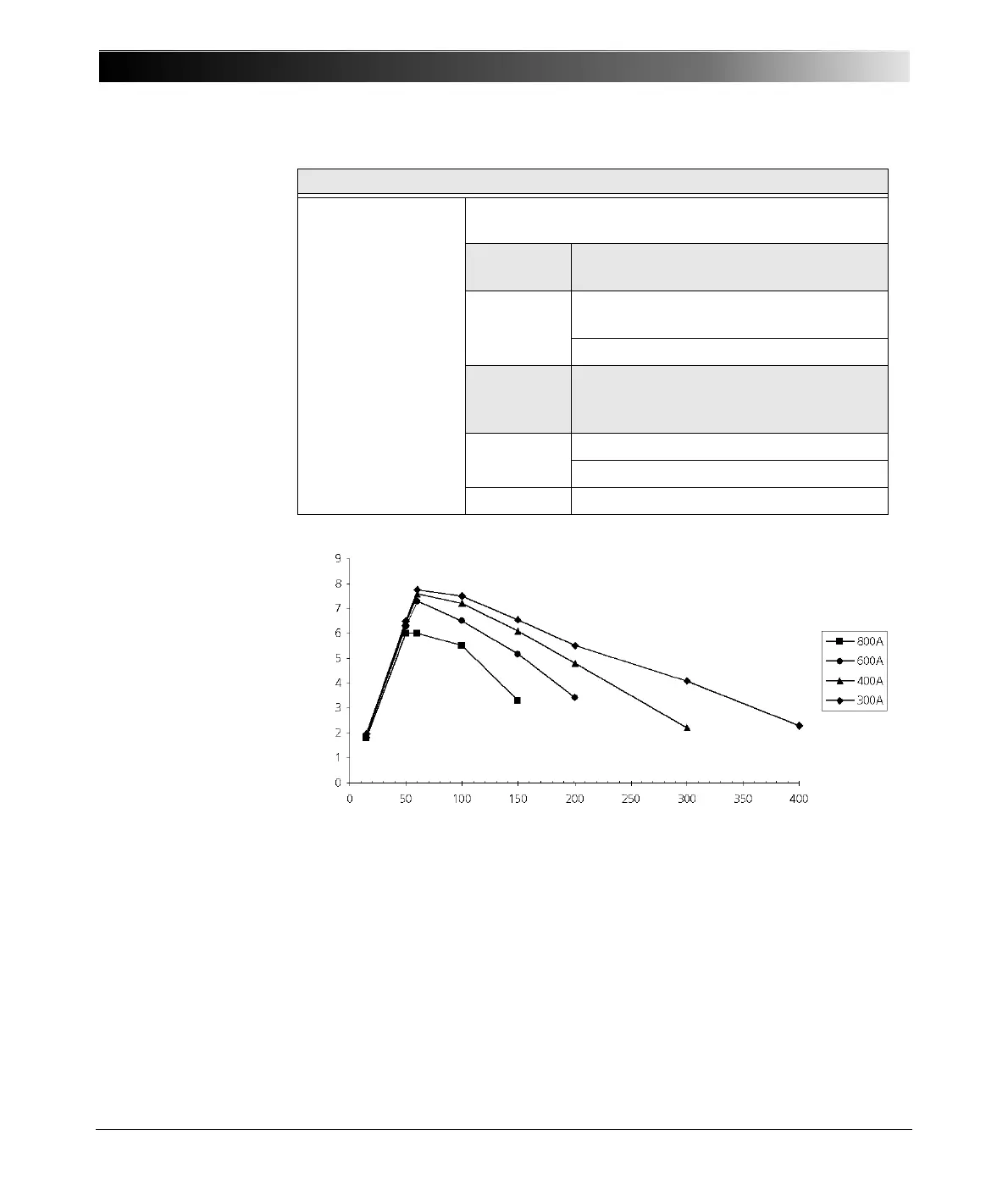

Figure 2:
Typical maximum
output voltage of
800A AC output
depending on frequency
and current
Measurement Internal precision current measurement from
0 ... 800A AC
Abs. max.
rating:
limited through output
Accuracy: typ. error < ± 0.1% (rd) ± 0.1% (fs),
guaranteed < ± 0.2% (rd) ± 0.2% (fs)
Possible crest factor: < 1.5
Phase
tolerance at
full scale:
typ. error < ± 0.1°,
guaranteed < ± 0.2°
Resolution: Measurement Display
100 mA/bit 10 mA
Connection: internally connected
800A AC output
Note: The signal for the 800A AC output is generated by an internal
transformer. To avoid saturation, sudden magnitude changes are
suppressed and the signal is output as a ramp. For several
applications the magnitude change is deferred even more, for
example, for CT ratio measurements.
The ramp changes for a full magnitude are
• one period of the signal, regardless of the size of the change for an
increase ramp
• 300ms for a decreasing ramp, or accordingly less if the magnitude
change is only a fraction of its full value.
voltage in V
rms
frequency in Hz
