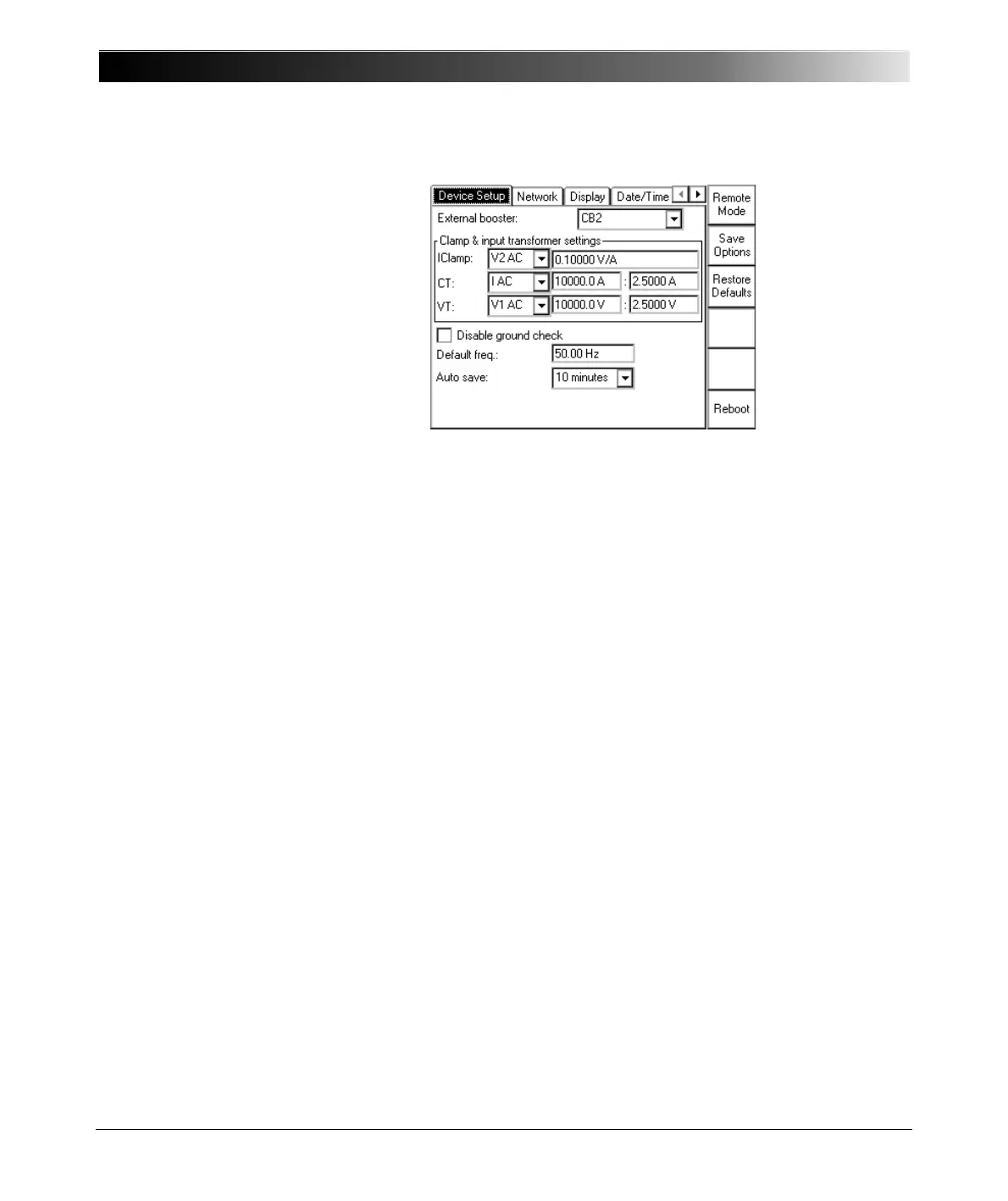

Figure 22:
Options tab Device
Setup
External booster
The "External booster" combo box allows to set the external booster:
•CB2 for CP CB2 current booster
•CU20 for CP CU20 coupling unit
•CU1 for CP CU1 coupling unit
For the default value associated with different instantiation procedures, see
Table 1: ”Instantiation procedures” on page 33.
Clamp & input transformer settings
When an input is not connected to the device under test directly but using a
current clamp, a CT or a VT, the ratio of these devices can be set here.
The "Clamp & input transformer settings" group box displays and, if required,
allows you to change settings for external devices:
• IClamp for the current clamp parameters
• CT for the transformation ratio of the current transformer
• VT for the transformation ratio of the voltage transformer
By default, the transformation ratios of the current and voltage transformers for
the selected external device are preset. For the default value associated with
different instantiation procedures, see Table 1: ”Instantiation procedures” on
page 33.
