Note: Trigger conditions with "<" are meaningful in combination with
external signals only, that is, with signals that are not coming from
CPC 100.
Reason: if the trigger signal comes from CPC 100, the trigger
condition will always be "true" at the moment the I/O (test start/
stop) push-button is pressed.
After having pressed K
EEP RESULTS, the trigger event is locked and
cannot be changed.
Data entry field for the threshold value.
Setting a threshold value is not possible ("n/a", as shown above), if
either
– a binary trigger condition
–no trigger
–overload
was selected.
After having pressed K
EEP RESULTS, data entry for the threshold
value is disabled, that is, the value cannot be changed.

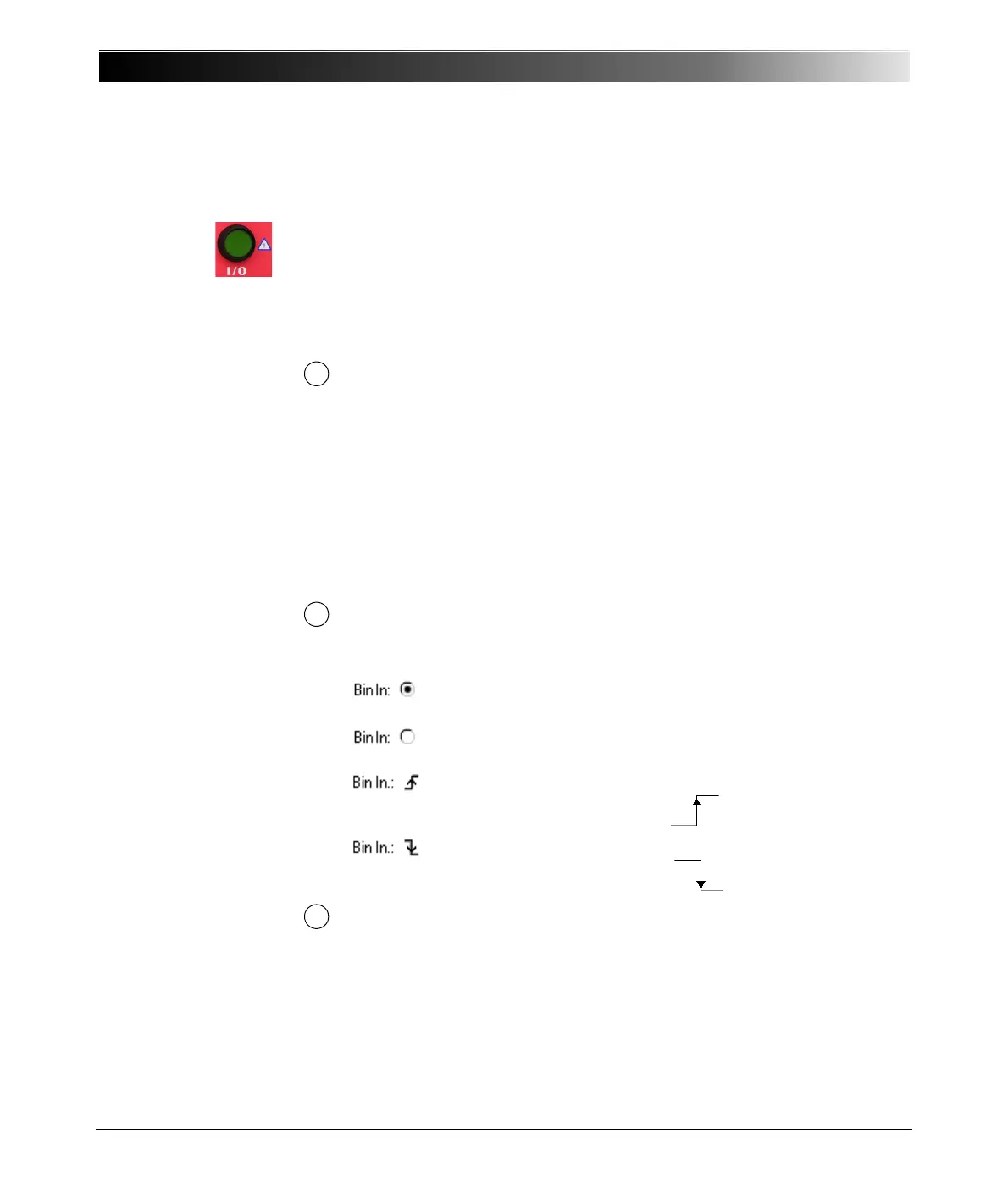

Bin.In:
Indicates the signal condition at the binary input Bin In. 4 different
characteristics are possible:
Closed: potential-free contact between BinIn+ and BinIn–
closed.
Open: potential-free contact between BinIn+ and BinIn–
open.
Come:
trigger signal with rising edge occurred at BinIn.
Go:
trigger signal with falling edge occurred at BinIn
Delay time display
The delay time is the time between the last change of the CPC 100
output value and the occurrence of the trigger event.
