Chapter 3: Setup
Power Supply Box - Features and Parts

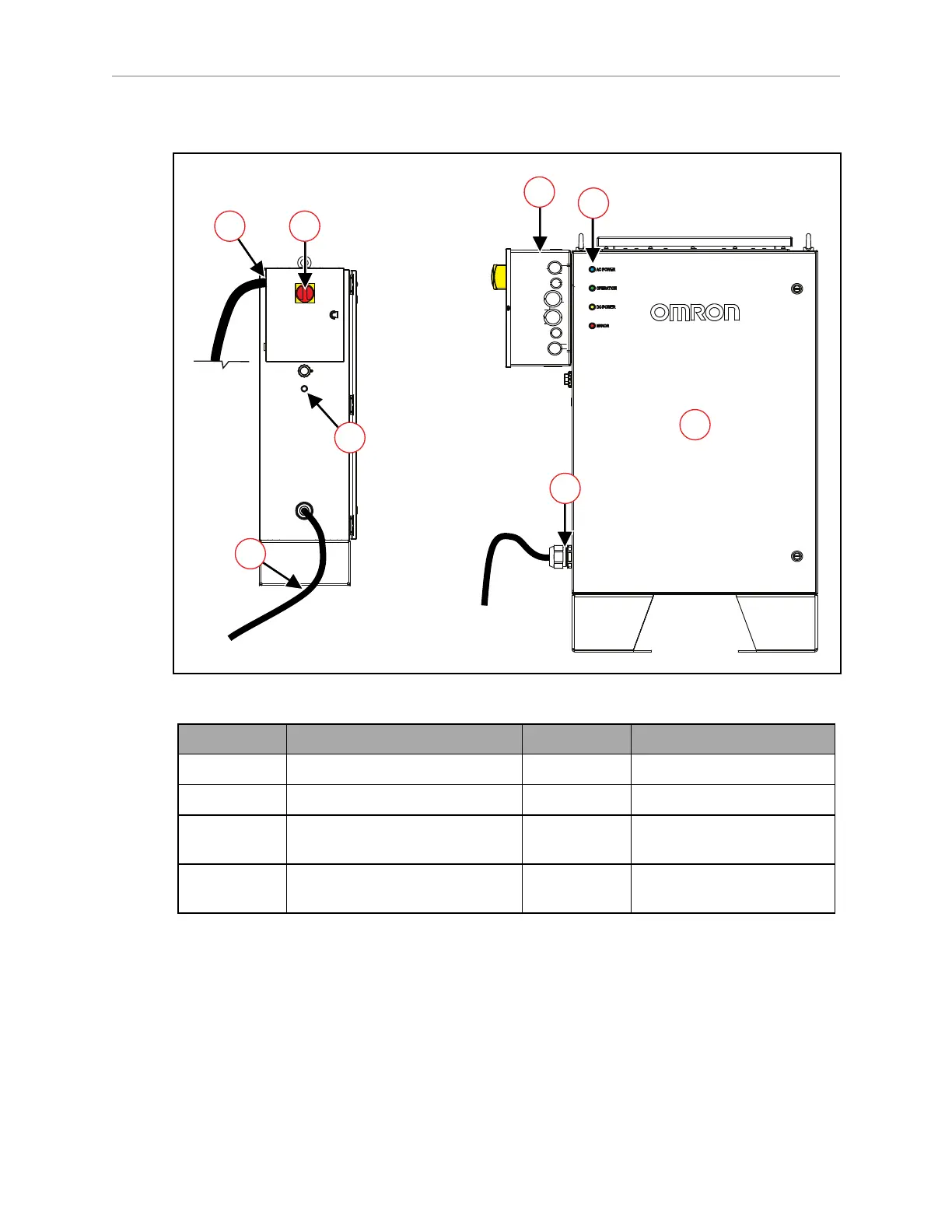

Figure 3-67. Power Supply Box - Features and Parts
Callout Description Callout Description
A Main electrical compartment E Main disconnect switch
B Electrician access box F LED indicators
C Facility power cable (user-sup-
plied)
G Outlet power cable
D Output power cable strain relief
(user-supplied)
H Push button
There are four LED indicators on the power supply box, as displayed in Figure 3-67. For
information on the power supply box LED indicators, see: Indicators, Controls, and Con-
nections on page 189.
Power Supply Box - Dimensions
The following figure provides dimensions of the power supply box.
