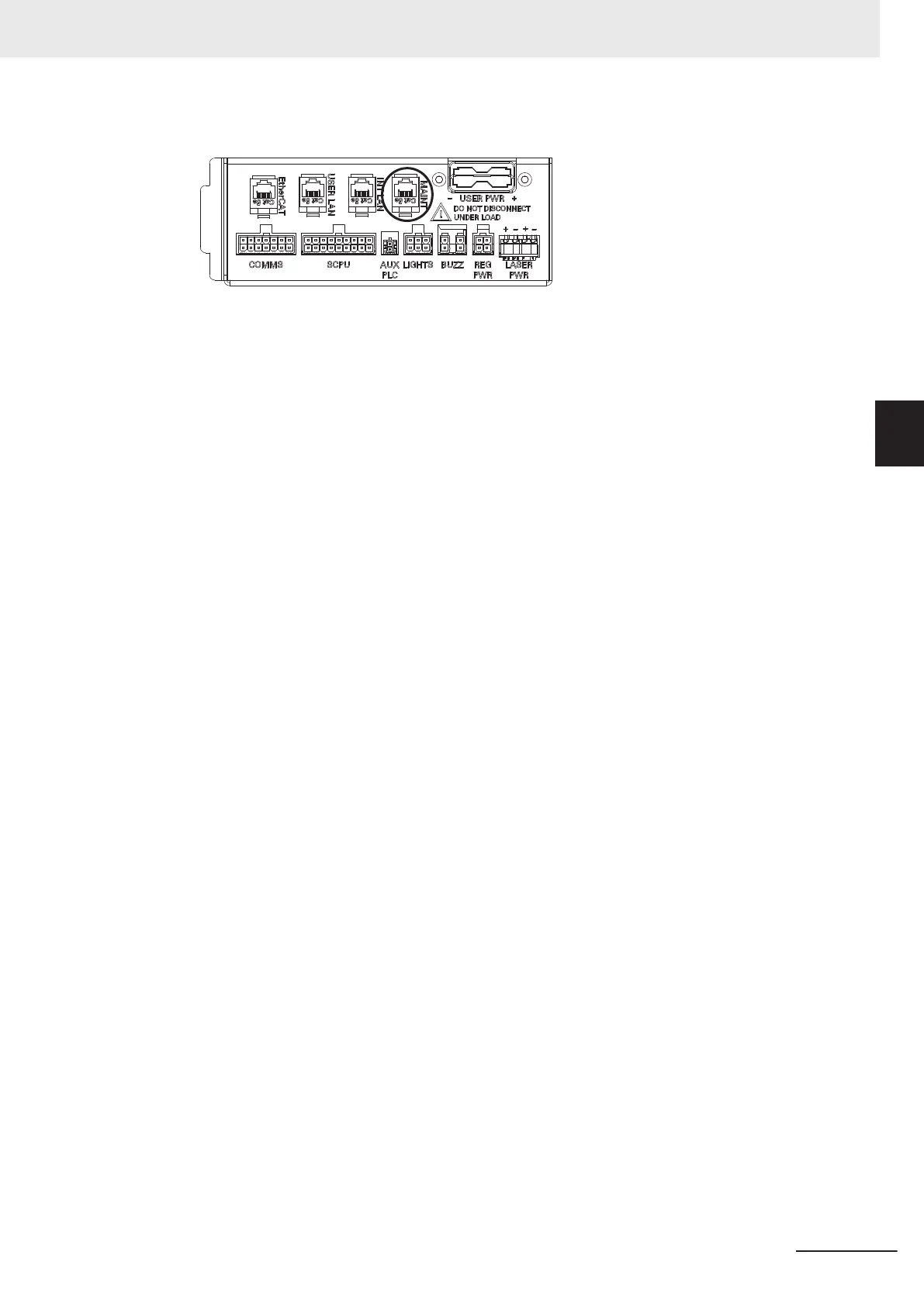

7 Connect one end of the Ethernet patch cable to the Maintenance Port on the Connector Panel.
8 Connect the other end of the Ethernet patch cable to the rear port of the passthrough connec-
tor.
9
Replace the User Connections area cover.
10
Replace the Right Skin to complete this procedure.
3 Installation
3-45
AMR (Autonomous Mobile Robot) MD-series Platform User's Manual (I681)
3-12 Maintenance Port Extension Procedure
