Physical Specifications
Physical specification of the AMR and other items are provided below.
2-2-1
Dimensions
Dimensional specifications are provided in the following sections.

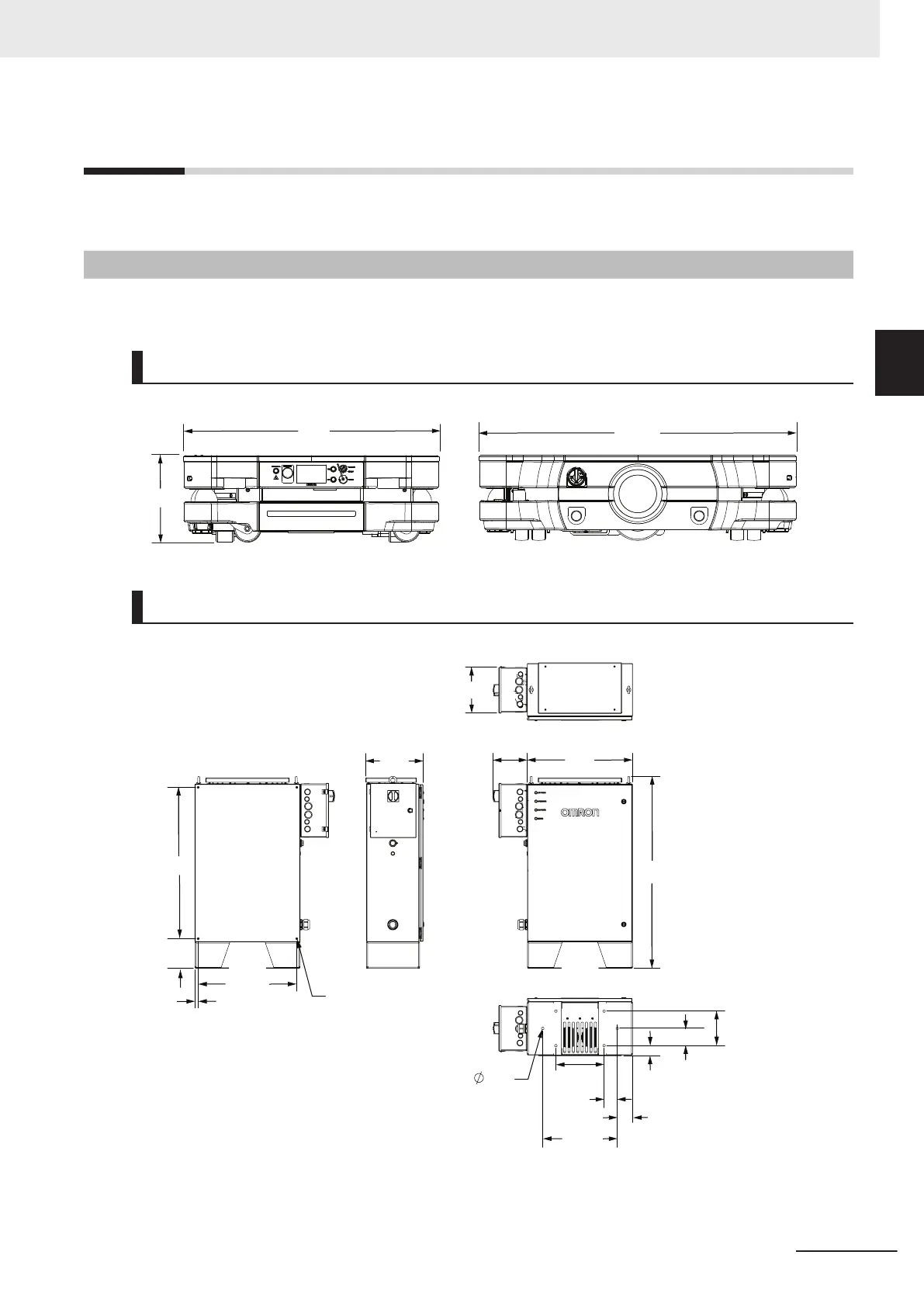

Overall Dimensions
The overall dimensions of the AMR are provided below.
944
320
1194
Power Supply Box Dimensions
Physical dimensions of the Power Supply Box are provided below.
265
876.3
171.5
19.1
571.5
4X M10 X 1.5
333
200
610
1112
6X
14.2
279.3
76.2
431.7
89.0
58.9
100.1
200.2
