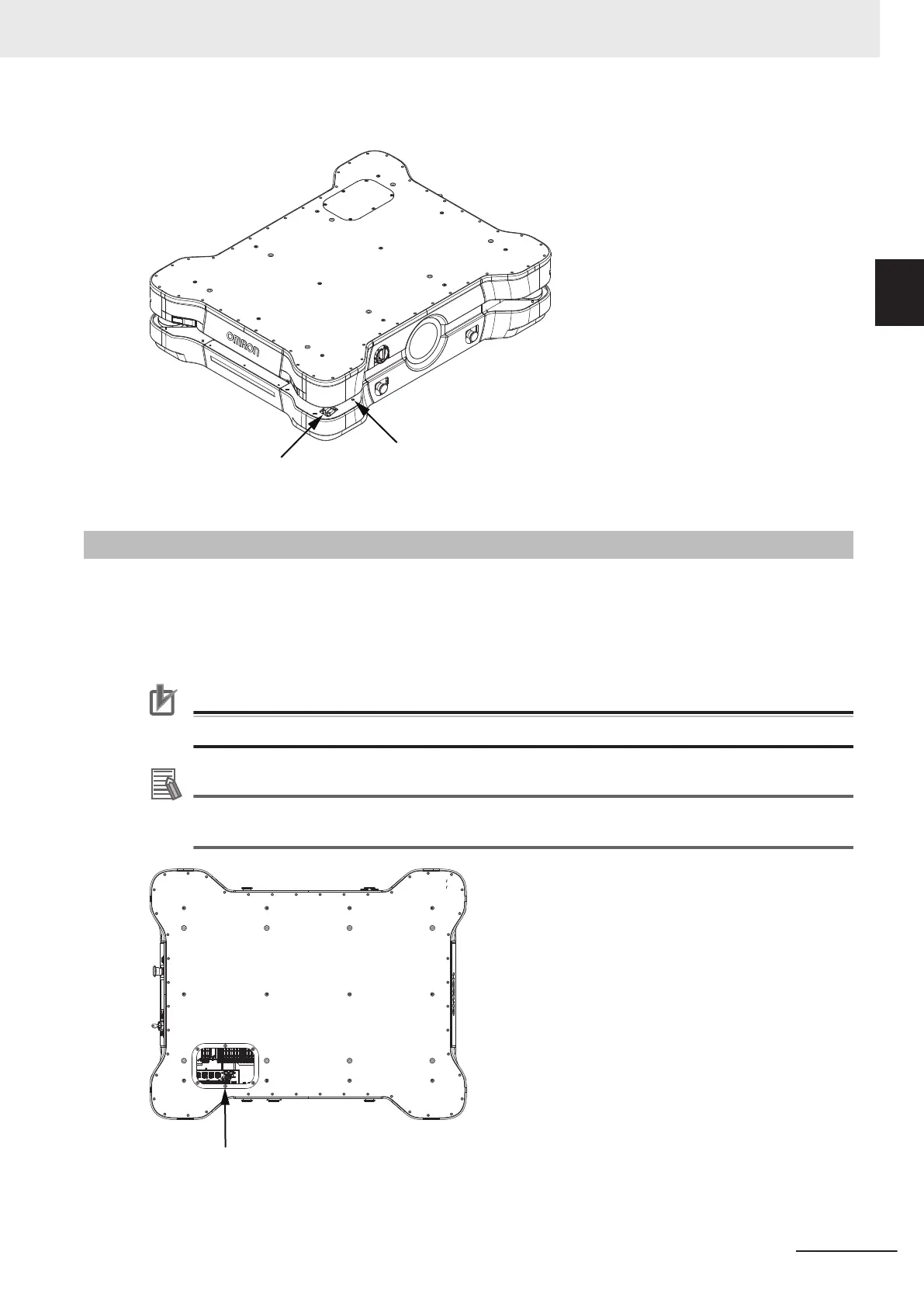

A red LED charge light illuminates when power is present at the charging contacts.
LED
Charging
Contacts
1-2-7
User Connections Area
Connections for power, communications, safety devices, inputs, outputs, and other optional items are
provided in the User Connections area. These connections are typically used for powering and con-
trolling a payload structure.
The User Connections area is protected with a removable cover.
Precautions for Correct Use
Do not place additional components in the User Connections area.
Additional Information
If any covers or other items are removed from the AMR, the ingress protection (IP rating) will be
compromised.
User
Connections
