Installation and WiringFP2/FP2SH
4 − 5
4.1 Installation
Space of Programming Tool Connection

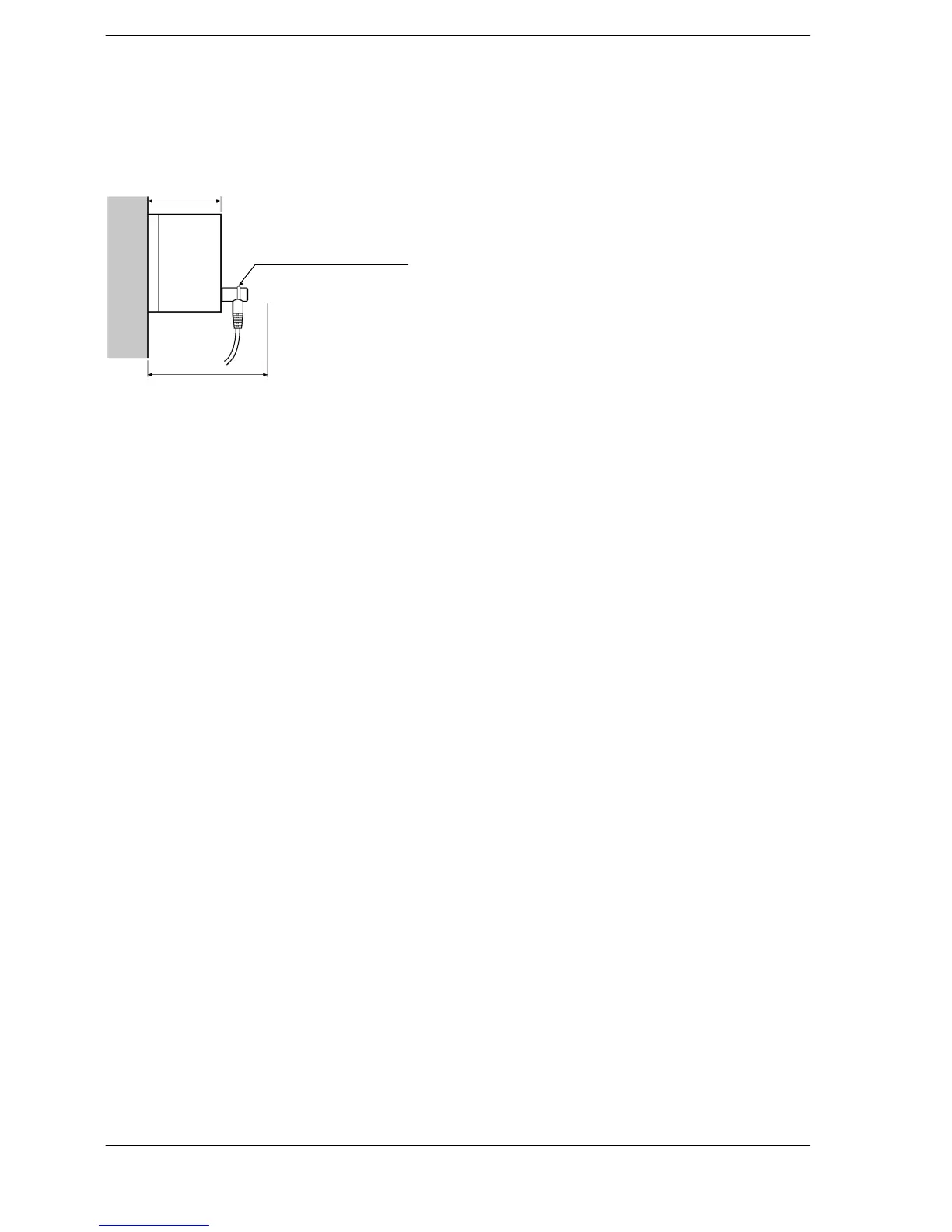

Leave a space of at least 170mm/6.693in. from the mounting surface for programming
tool connections and wiring.
Approx. 110mm/4.331in.
170mm/6.693in. or more
Peripheral connection cable
FP2/
FP2SH
unit
Operating environment
(Use the unit within the range of the general specifications when installing)
Ambient temperatures:0 to +55 °C
Ambient humidity: 30% to 85% RH (at 25 °C, non−condensing)
For use in pollution Degree 2 environment.
− Do not use it in the following environments.
− Direct sunlight
− Sudden temperature changes causing condensation.
− Inflammable or corrosive gas.
− Excessive airborne dust, metal particles or saline matter.
− Benzine, paint thinner, alcohol or other organic solvents or strong alkaline solutions
such as ammonia or caustic soda.
− Direct vibration, shock or direct drop of water.
− Influence from power transmission lines, high voltage equipment, power cables, pow-
er equipment, radio transmitters,or any other equipment that would generate high
switching surges. (100mm or more)
