Installation and WiringFP2/FP2SH
4 − 7
4.1 Installation

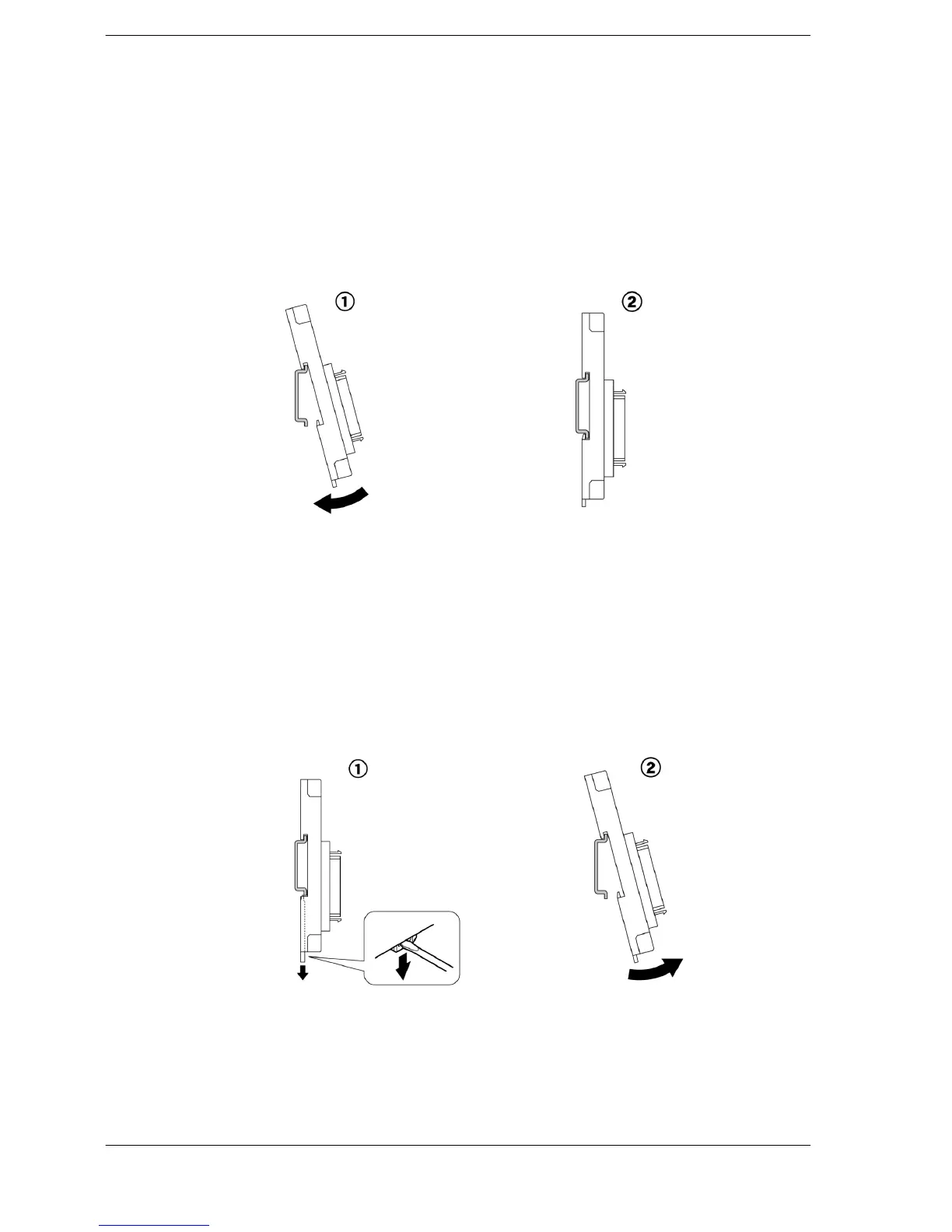

Installation to a DIN Rail
Procedure:
1. Attach the railing on the rear of the backplane to the DIN
rail.
2. Push the backplane in the direction of the arrow, as il-
lustrated below, so that it attaches securely.
Removal from a DIN Rail
Procedure:
1. Place the tip of a flat-headed screwdriver into the slot
for the DIN rail attachment lever.
2. Pull out the DIN rail attachment lever with the flat-headed
screwdriver and remove the backplane from the DIN rail.
