4.1 Installation
FP2 backplane H type
Three expansion backplanes H type can be added on for expansion.
Connect a cable from the connector of the basic backplane to the outside connector of
the expansion backplane with the smallest number, and then connect a cable from the
inside connector to the outside connector of the next expansion backplane.

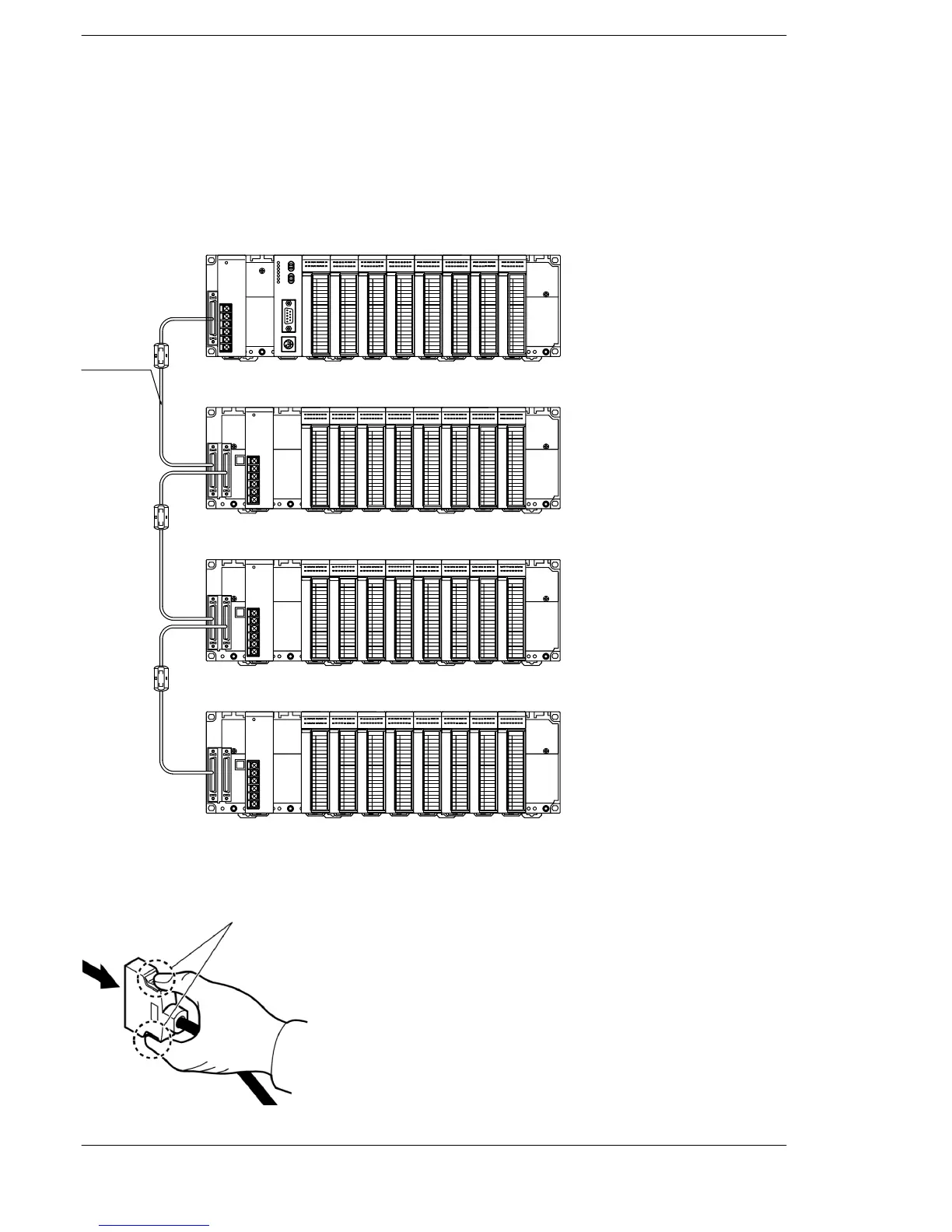

Expansion
cable
Basic backplane
Expansion backplane 1
Expansion backplane 2
Expansion backplane 3
To
outside
con-
nector
To
inside
con-
nector
To
inside
con-
nector
To
outside
con-
nector
To
outside
con-
nector
Removing the expansion cable
Hold down the buttons on the side of the connector to release it from the locked condi-
tion and pull out the expansion cable.
Hold down the buttons and pull outward.
