Installation and WiringFP2/FP2SH
4 33
4.4 Wiring the Connector Type I/O Units

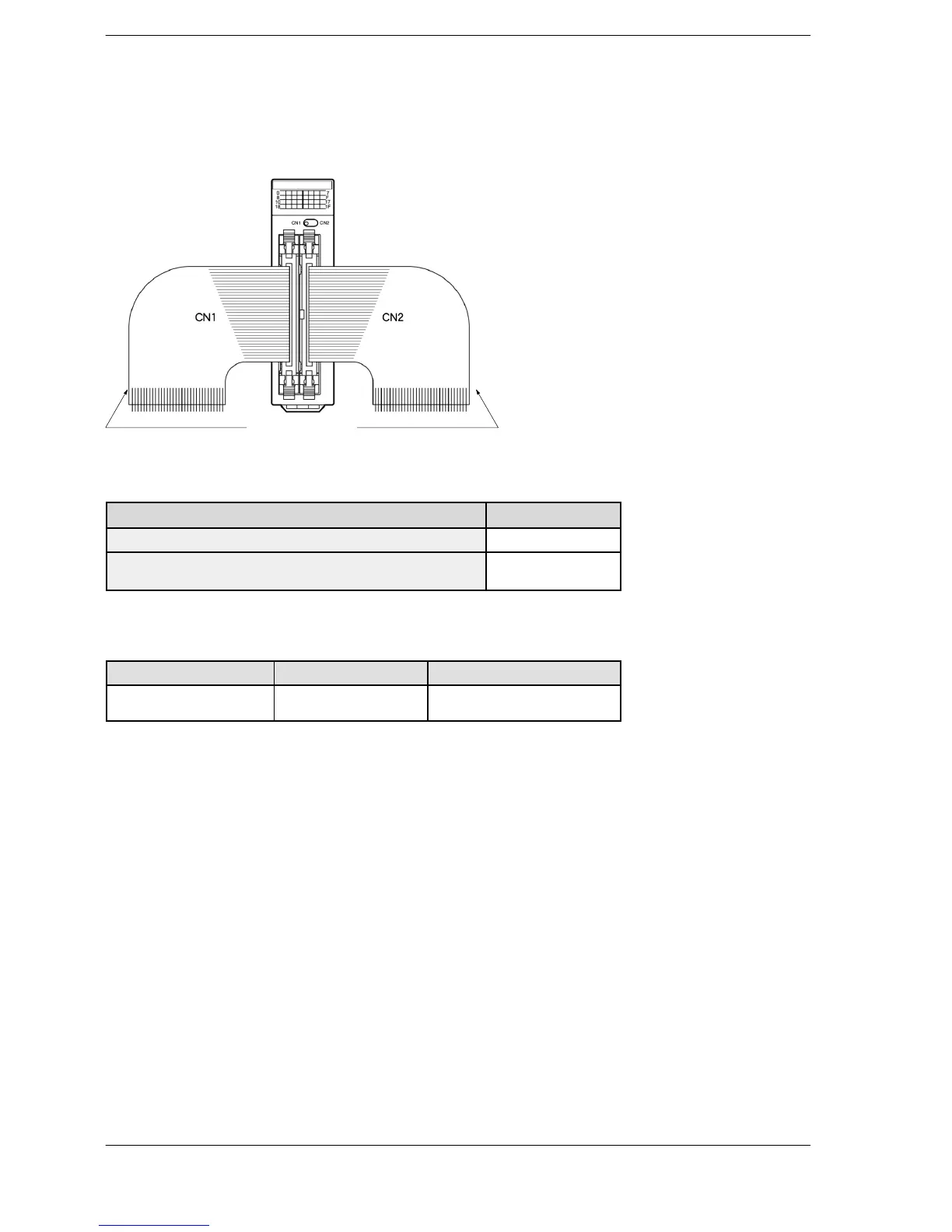

Flat Cable Connection Diagram for the 32point Type I/O Units, 64-point
Type I/O Units and I/O Mixed Unit
Cable no.1 side Cable no.1 side
Flat Cable Connector
Item Part number
Set of flat cable connector AFP2802
Flat cable connector (with strain relief, pitch of 1.27mm)
(2 pieces)
Suitable Wires (twisted wire)
Size Pitch Rated current
AWG28
(7pcs./dia.0.127)
1.27mm 1A
