FP2/FP2SHFP2/FP2SH Operation
6 − 24
6.7 FP2SH ROM Operation

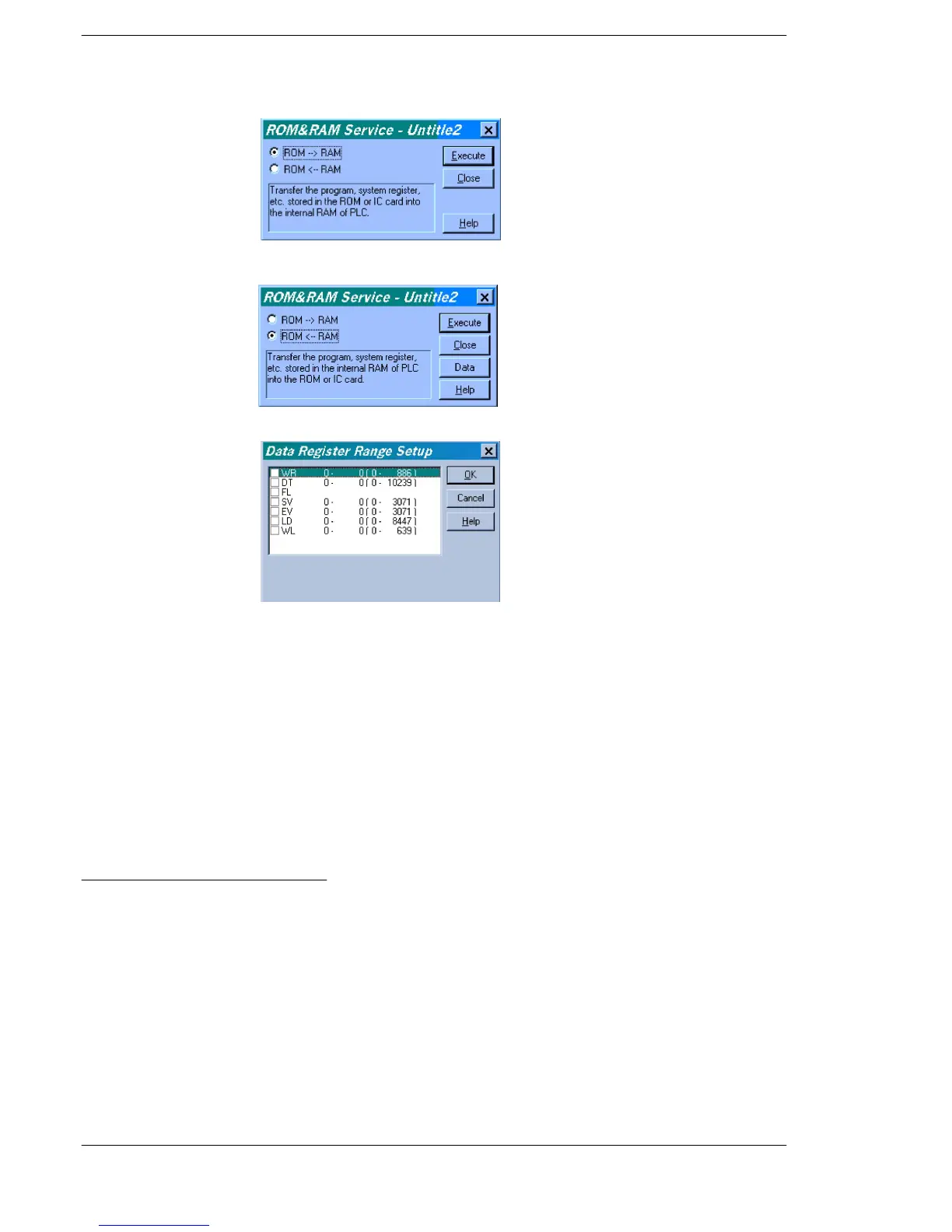

The “ROM & RAM Service” window opens.
3. Select “ROM ← RAM” and press the “Data” button.
The “Data Register Range Setup” window opens.
4. Select the data and specify the range.
Clicking on the check box in front of the data type speci-
fies whether or not that data can be sent. Data marked
with a check mark can be sent.
To specify the range, double−click on the list.
Storage Capacity of User ROM
The potential storage capacity of user ROM is:
Number of program step
Fixed value (2k words)
+ Data capacity
Total number of words
The largest total value of the above is 128k words.
Precautions for Comment Storage
Editing of the program cannot be done during ROM operation. Transfer the data after
set the DIP switches SW2 to off.
