IC Memory CardFP2/FP2SH
7 − 5
7.1 Using the IC Memory Card
Using the Card to Expand the Data Memory Area
Data written to data registers and other destinations is written to the IC memory card.
When the card is used in this way, the IC memory card can be used as an expanded
memory area that lets data be written and read using the sequence program.
Data is written using the F13 (ICWT) instruction of the sequence program, and is read
from the IC memory card using the F12 (ICRD) instruction.
The FROM type of card can only be used for reading data.

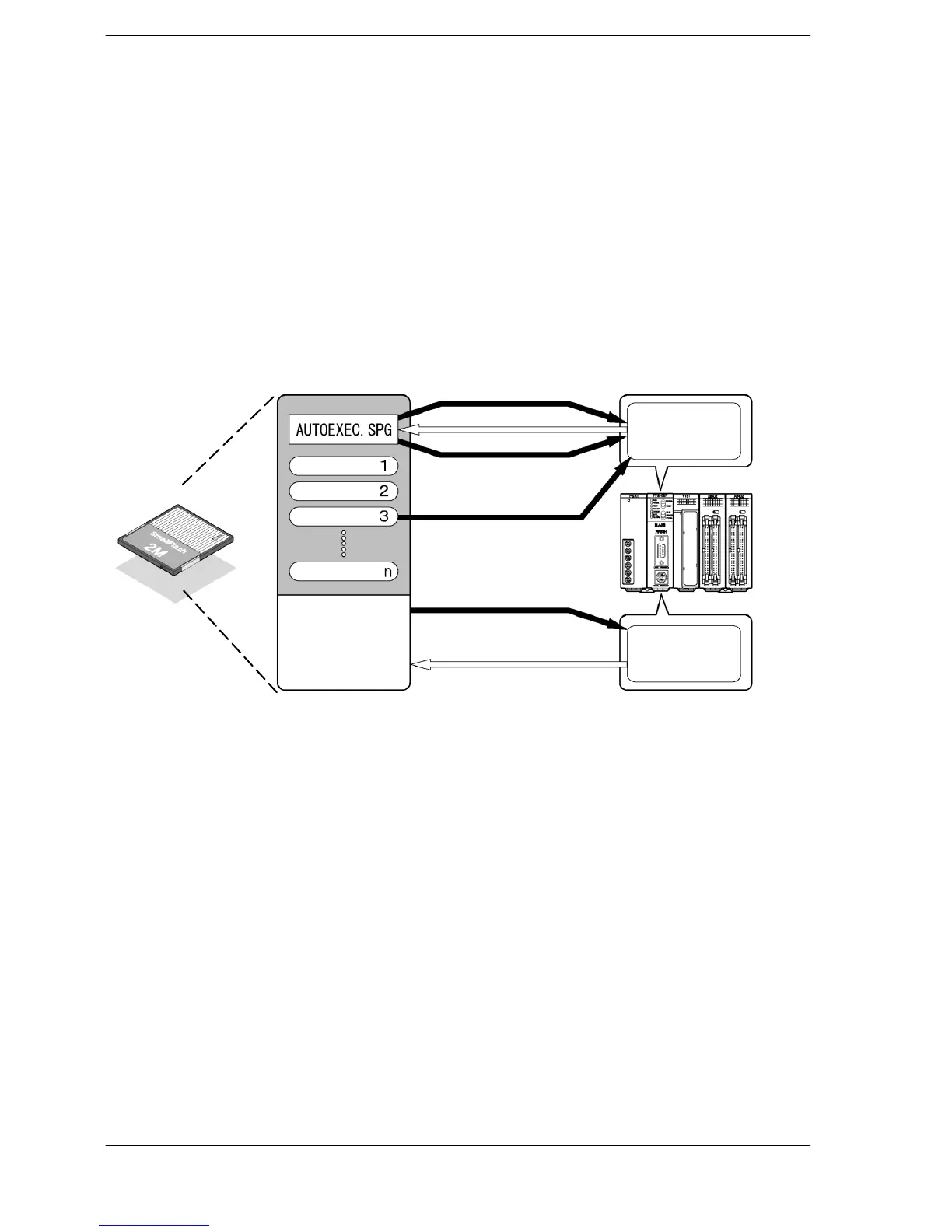

How the IC memory card is used
IC memory card
Program
Program
Program
Program
Expanded data
memory
Expanded
memory area
Program memory area
Power on, automatic operation
RAM→ROM transmission
ROM→RAM transmission
F14 (PGRD) instruction
F12 (ICRD) instruction
F13 (ICWT) instruction
(SRAM type only)
Operation memory
Program memory
(Internal RAM)
To Next Page
