Parts and FunctionsFP2/FP2SH
2 − 17
2.3 Expansion Memory Unit and ROM (for FP2 CPU)

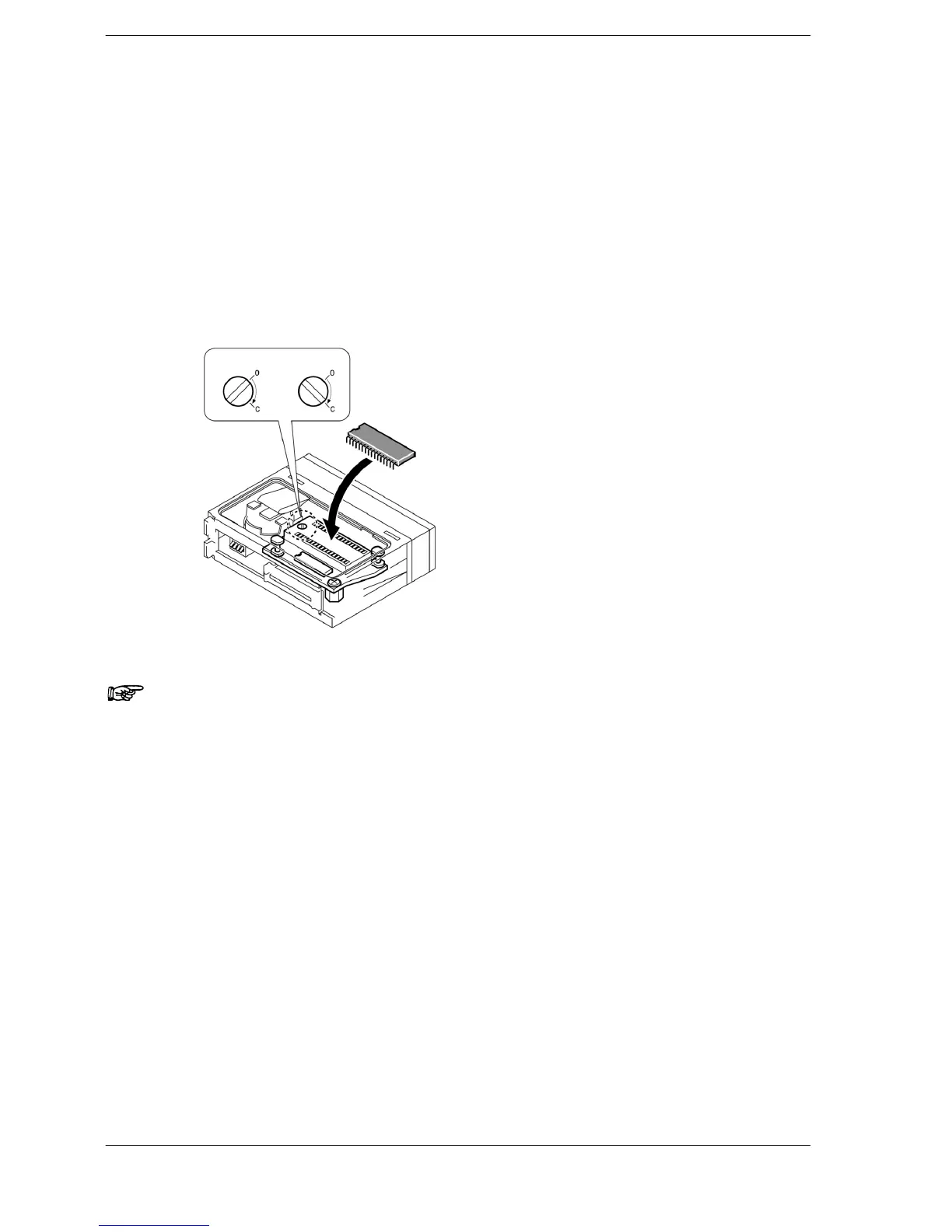

Installing the ROM
Procedure:
1. Release the lock for the ROM IC socket.
2. Make sure that the lead pitch of the ROM matches that of the socket.
3. Making sure that the orientation is correct, insert the ROM into the
socket.
4. Return the lock to the locked position completely after the ROM is
inserted.
LockLock release
ROM
Note
When removing or installing the expansion memory unit, the con-
tents of the internal RAM may be erased. Therefore, always save
the program onto a disk before beginning the removal and instal-
lation operations. During the installation or removal operations,
do not touch the leads on any of the IC with your hands.
