FP2/FP2SHParts and Functions
2 − 46
2.10 Output Units Specifications

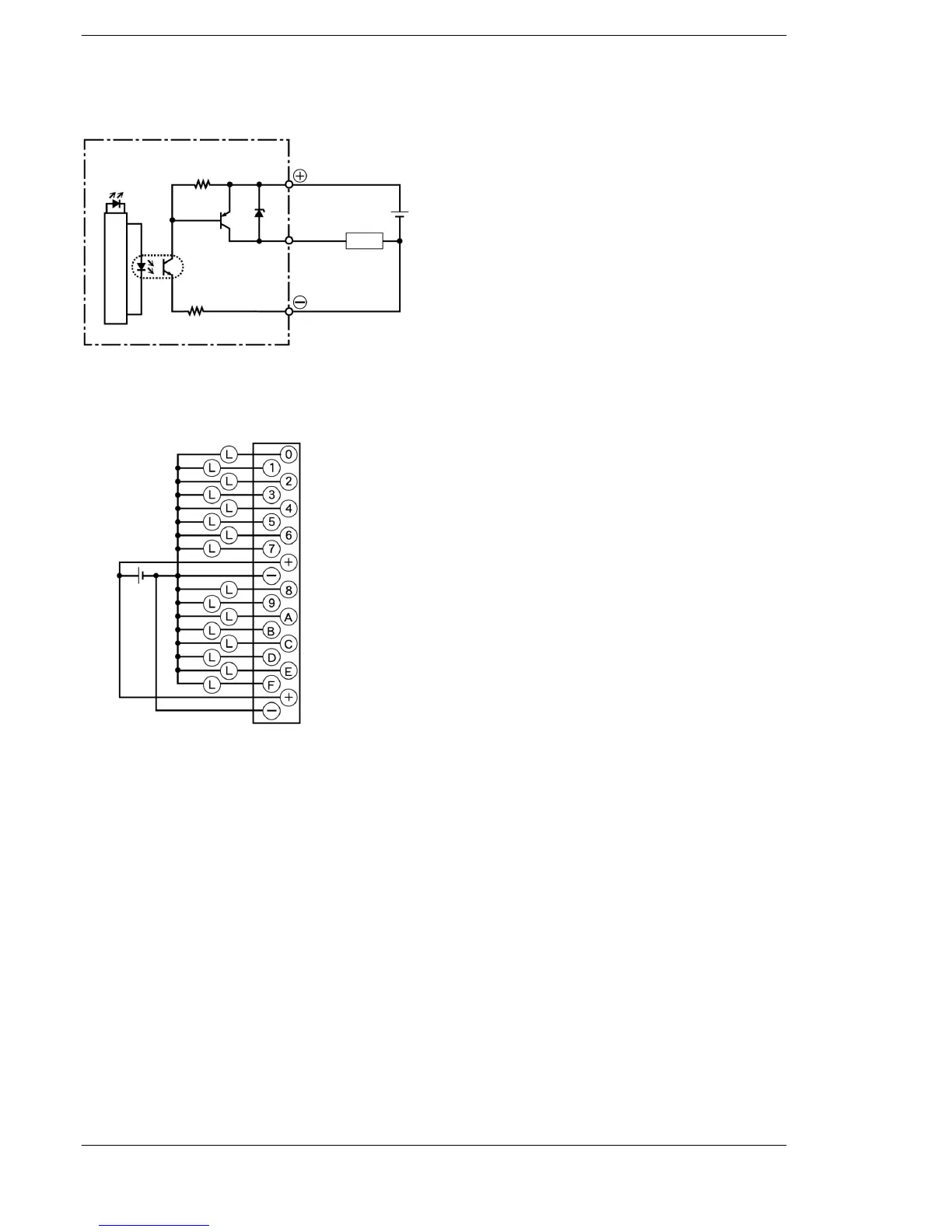

Internal Circuit Diagram
Output indicator
LED
Internal circuit
Output
Load
5 to 24V DC
3.9kΩ
2.0kΩ
Pin Layout
5 to 24V DC
Output Y0 to YF
For more information regarding the applicable pressure connection (crimp) terminals
and wiring, refer to section 4.5.1.
