Phoenix Contact RFC 4072S User Manual

RFC 4072S
216 / 272
PHOENIX CONTACT 108580_en_02

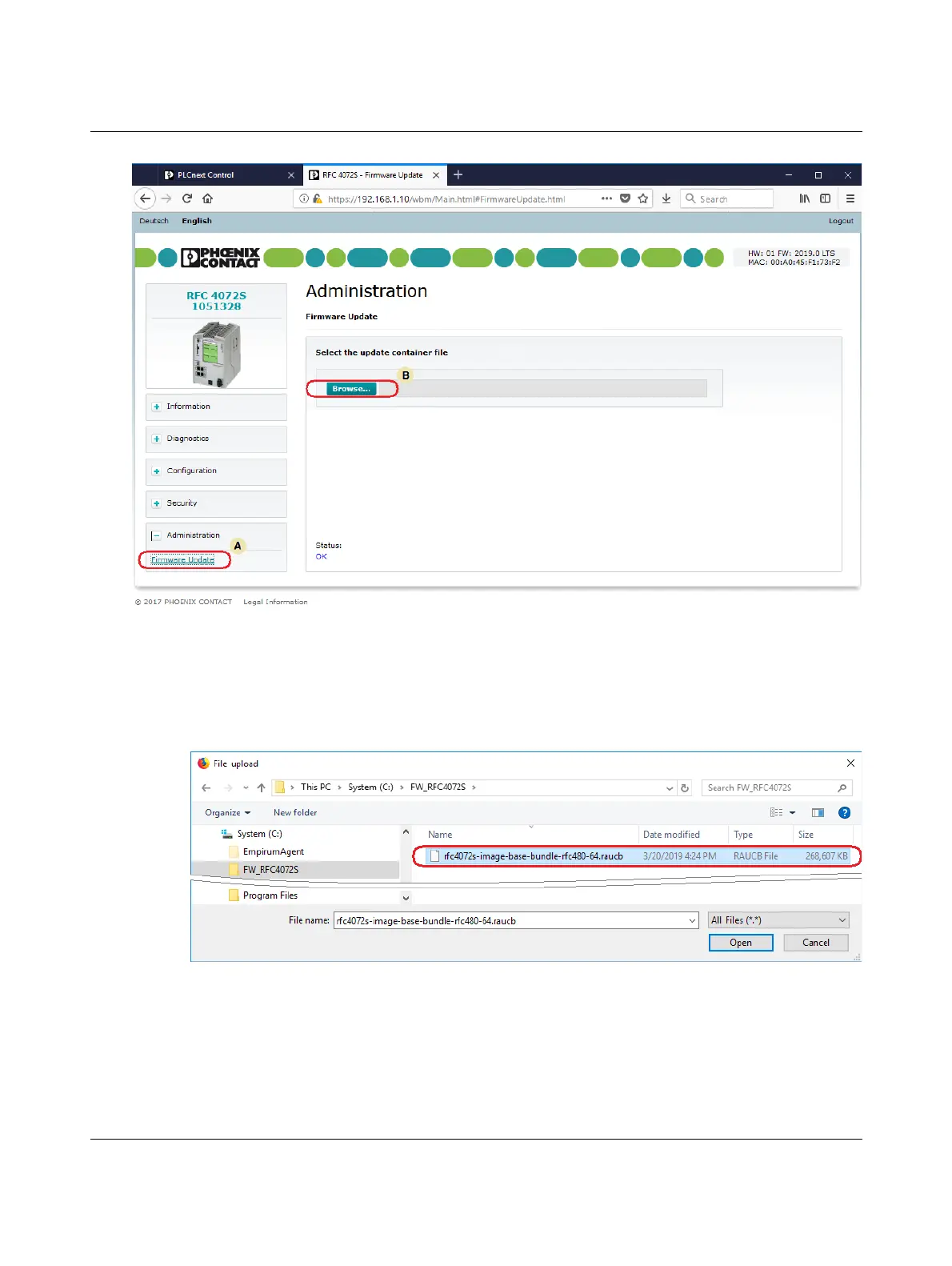

Figure 9-21 WBM: Administration – Firmware Update
• Click on the “Browse” button (B in Figure 9-21) and follow the further instructions.
• In the window that opens, select the destination directory to which you have copied the
update file.
• Click on the update file (*.raucb).
Figure 9-22 WBM: Administration – Selecting the firmware container
• Click on the “Open” button.

Phoenix Contact RFC 4072S Specifications

General

Brand	Phoenix Contact
Model	RFC 4072S
Category	Controller
Language	English
