Pinnacle Systems, Inc. TARGA 3000 User Manual

32 Chapter 2: TARGA Specific Control Panels Within Adobe Premiere

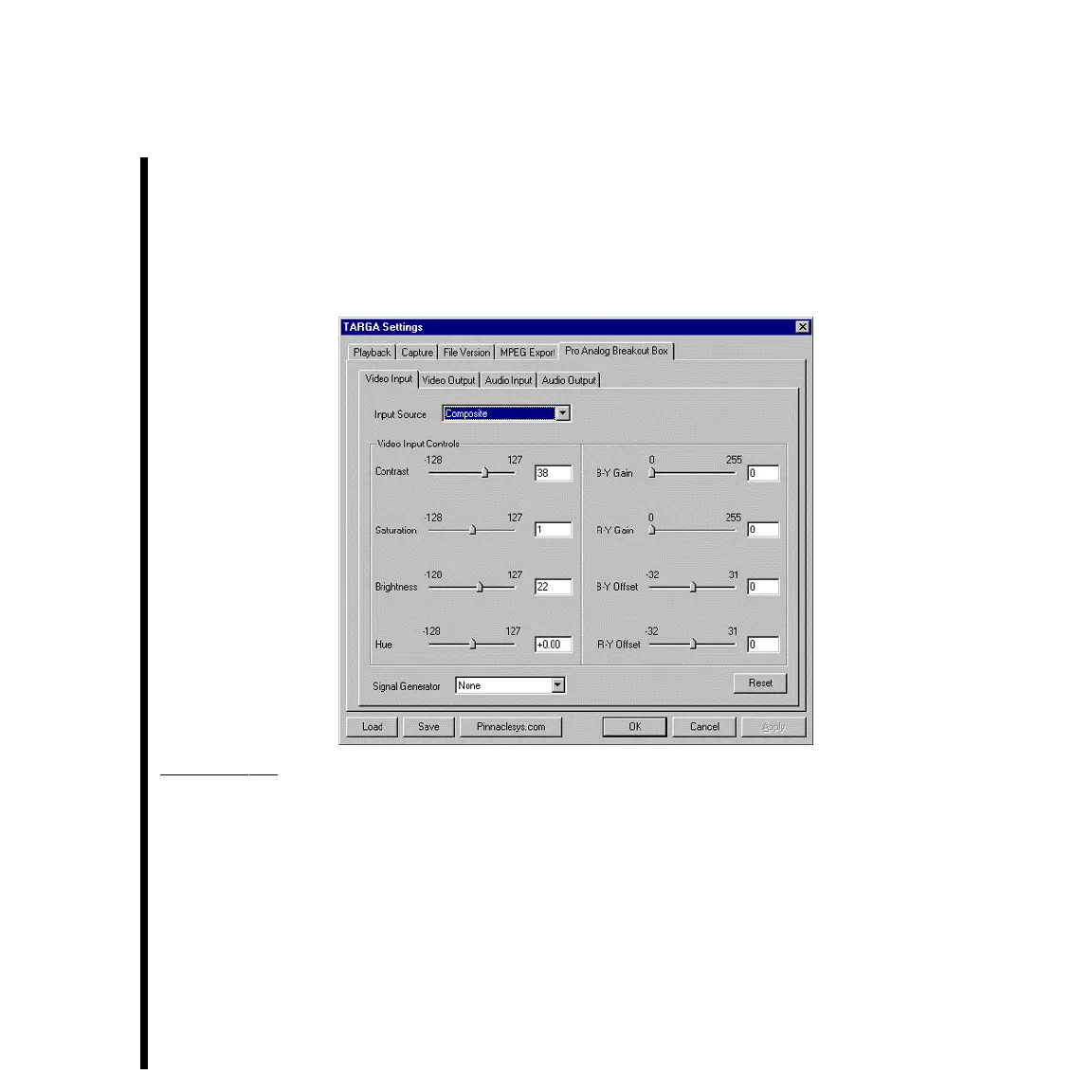

TARGA Settings Pro Analog Breakout Box Tab
(Video Input)
The Pro Analog Breakout Box tab appears if your have a Pro Analog Breakout Box
attached to your TARGA card. The “Video Input” subtab allows adjustments to be made
to the video signal being sent as input to the Breakout Box before that video signal is
digitized by the TARGA 3000 card.
Input Source -- Source of the signal input coming to the Breakout Box from your video
input device. Since all video inputs on the Breakout Box are active simultaneously, you
need to set the TARGA 3000 card for the video input format that is to be used. The
choices given for the Pro Analog Breakout Box are:
• Composite
• Ref
• S-Video (Y/C)
• YUV (Y, B-Y, R-Y)
