Chapter 1: Description
Quantum Scalar i6000 User’s Guide 3

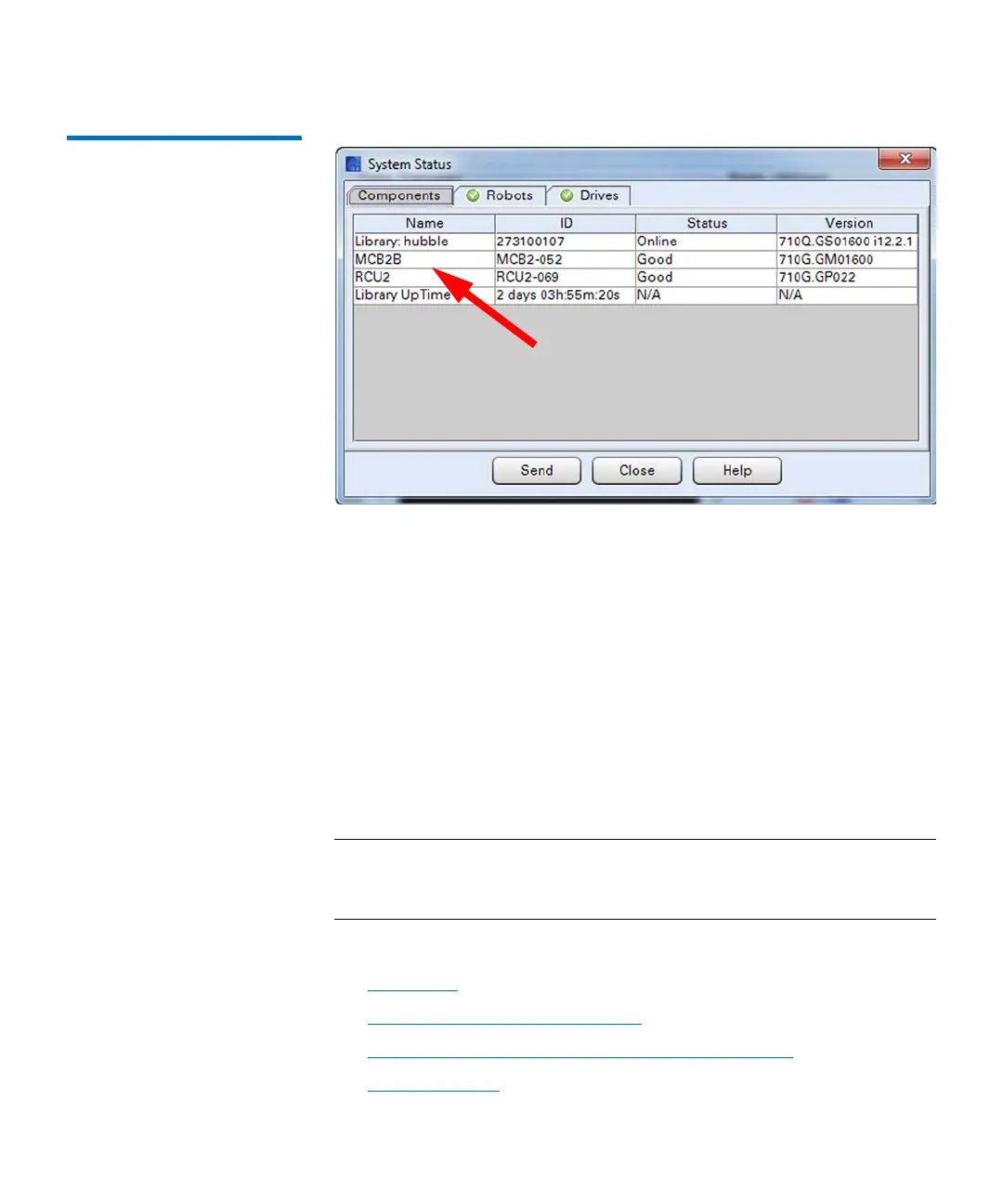

Figure 2 Components Tab
For Gen 1 systems, the maximum library can be configured to
accommodate from 100 LTO cartridges to 5,322 LTO cartridges (for a
single-robot library) or 5,376 LTO cartridges (for a dual-robot library).
For Gen 2 systems, the maximum library can be configured to
accommodate from 100 LTO cartridges to 7,146 LTO cartridges (for a
single-robot library) or 7,224 LTO cartridges (for a dual-robot library).
In March of 2013, a High Density Expansion Module (HDEM) was made
available to provide increased storage capabilities. A single HDEM can
hold up to 720 total slots; 540 on two independent carousels and 240
on the front door.
This chapter provides a description of the following features and
components:
Note: The library software features described in this guide apply to
both the Scalar i2000 and the Scalar i6000. However, certain
features are available on Scalar i6000 only.
This chapter includes the following sections:
• Front View on page 5
• Hardware Configuration Options on page 6
• Dual Robotics Configurations and Parking Modules on page 7
• Control Module on page 10
