Chapter 13: Running Your Library
Library Management Console (LMC)
Quantum Scalar i6000 User’s Guide 457

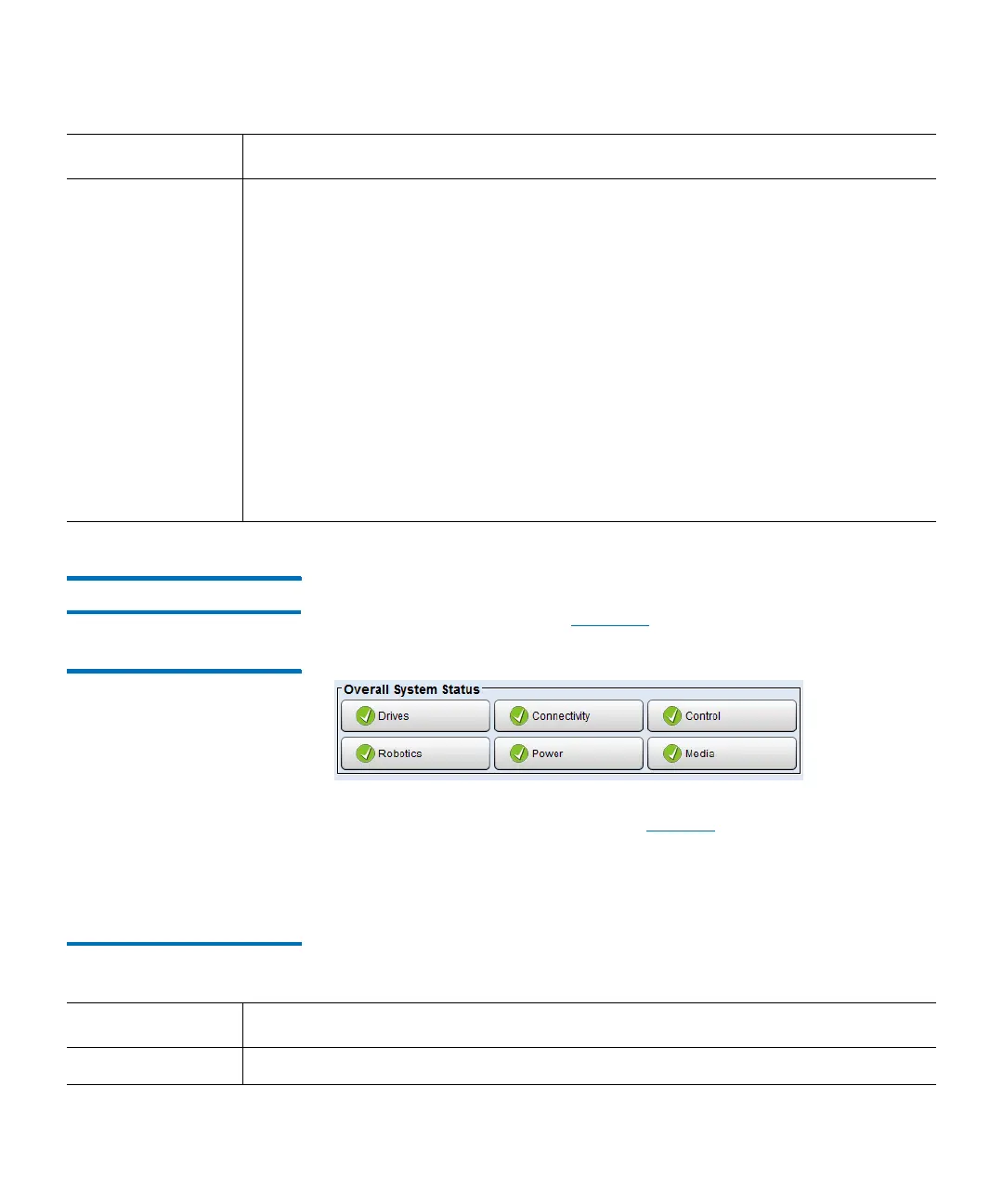

System Status Buttons System status buttons are located in the Overall System Status area at
the bottom of the LMC (see
Figure 48).
Figure 48 System Status
Buttons in Good Status
Each button represents a subsystem. Tabl e 53 shows the library
subsystems and some of the components that each subsystem
represents. Each field replaceable unit (FRU) in the library belongs to
one of the subsystems.
Table 39 Subsystems and Their
Components
Configuration Configuration summary information is presented textually. Data points reported
are:
• Number of tape drives
• Drive types: AIT, LTO or—for the physical library only—Mixed
• Total number of licensed storage slots (appears only in the physical library
view)
• Total number of storage slots in the physical library or partition, depending on
the current view
• Library type
• Number of robots (library view only).
Note: If the numbers shown are displayed in yellow or orange, then 80% of the
available resources are used. If the numbers are displayed in red, then
90% of the available resources are used.
Area Description
Subsystem Components
Drives Drives, such as brick firmware, drive bricks, drive sleds
