Chapter 15: Maintaining Your Library
Maintenance Actions
570 Quantum Scalar i6000 User’s Guide
Working With
Connectivity
The Connectivity dialog box enables you to do the following:
• Reset an I/O blade
• Reset the Fibre Channel port on an I/O blade
• Power cycle an EEB or I/O blade
• Visually locate a specific EEB or I/O blade in the library
To reset or identify port/blade connectivity:
1 Log on as an administrator.
2 Make sure that you are viewing the physical library. From the View
menu, click the name of the physical library.

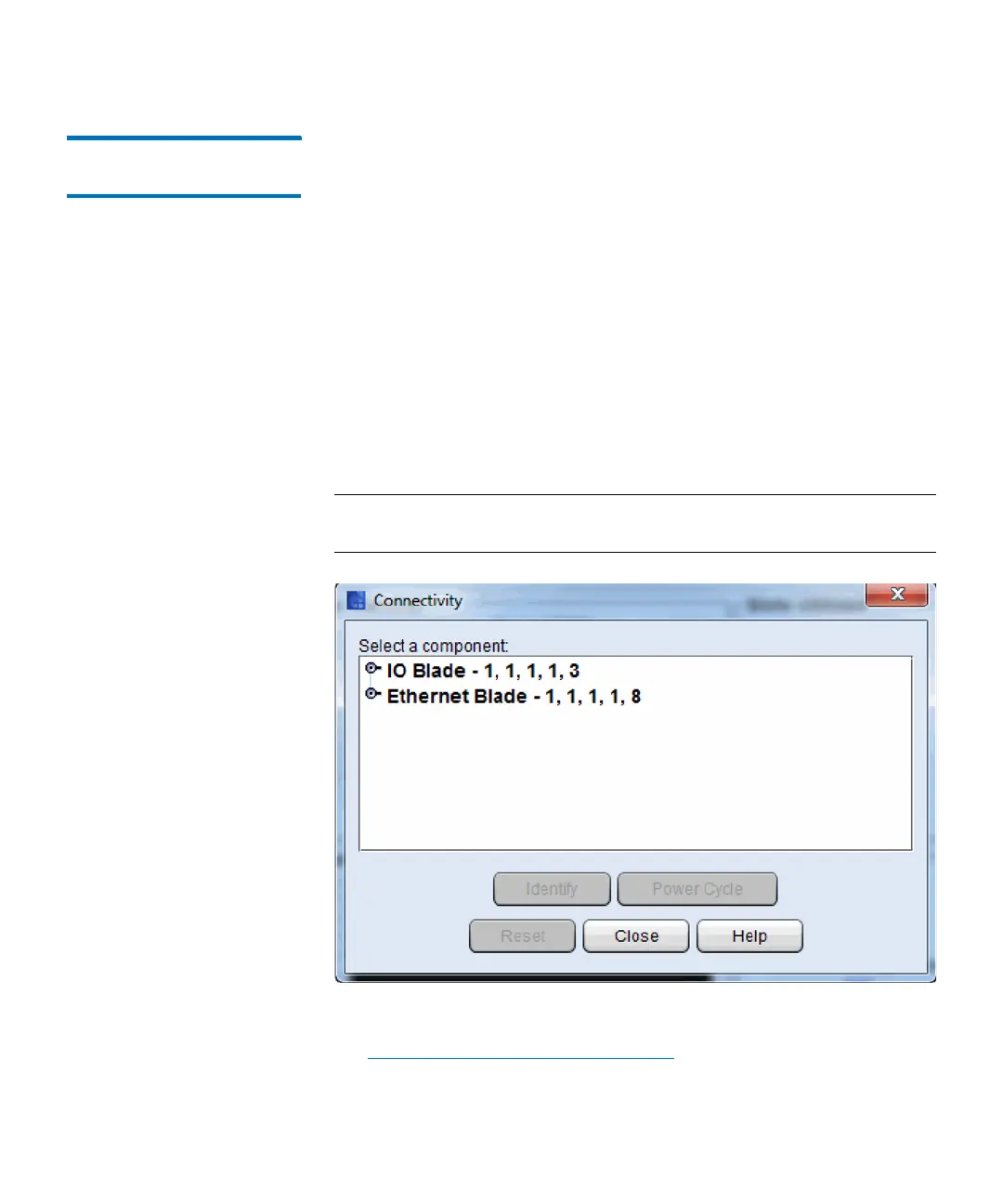

3 Click Too l s > Connectivity. The Connectivity dialog box appears
with the EEB and all I/O blades in the library listed.
Note: If the physical library is not offline, you receive a message that
asks you whether you want to take it offline. Click Yes.
4 To display the ports for a specific blade, click the name of the blade
(EEB or I/O blade). For information about location coordinates, see
Understanding Location Coordinates on page 459.
