Chapter 3: Configuring Your Library
Configuring Fibre Channel I/O Blades
210 Quantum Scalar i6000 User’s Guide
Configuring LUN Mapping
1 Log on as an administrator.
2 To ensure you are working from the physical library, from the main
console, select View and click the name of the physical library.
3 Click Setup > Blades > Access > FC Host. The FC Host dialog box
appears.

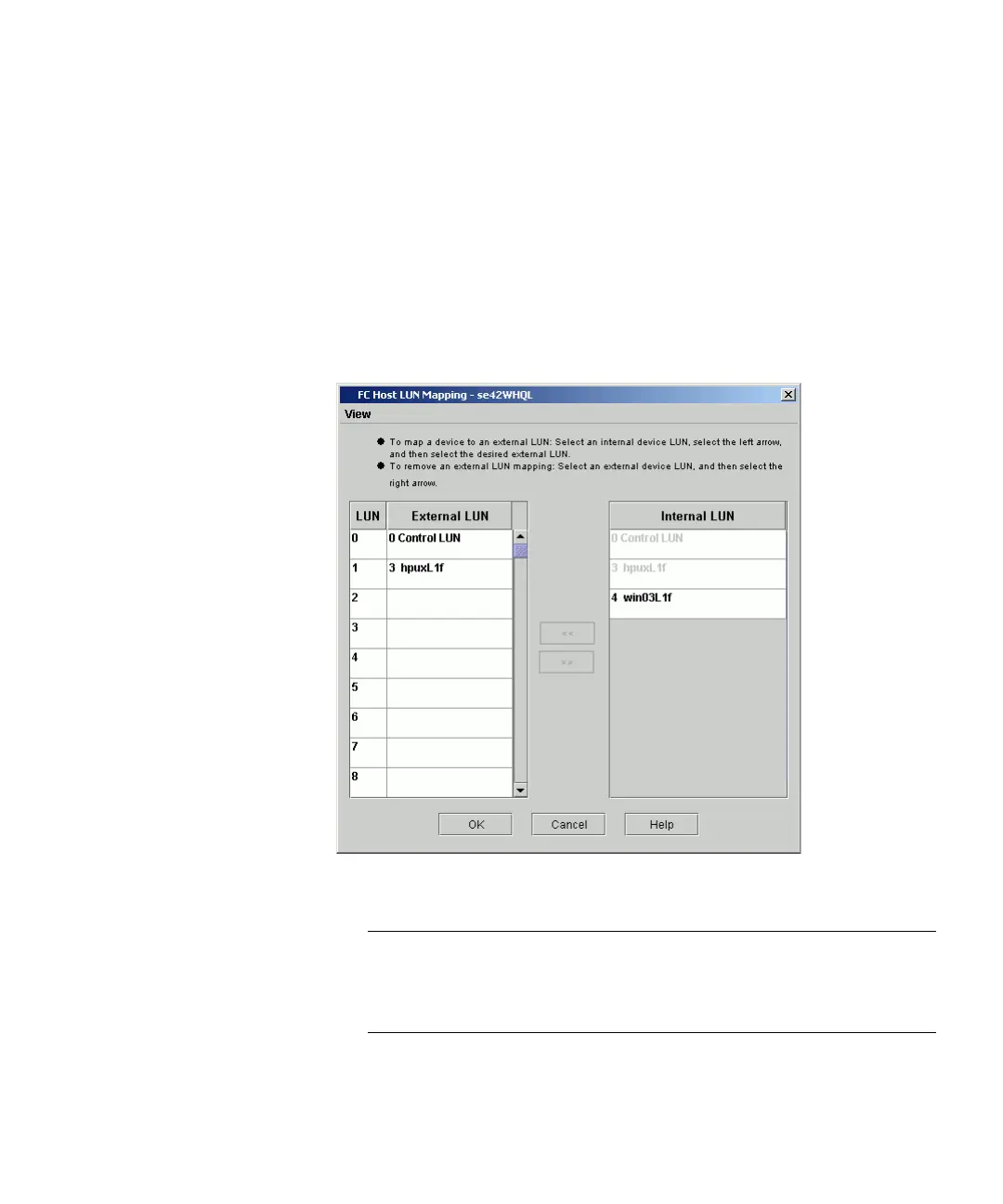

4 Select a host on the FC Host dialog box, click LUN Mapping. The FC
Host LUN Mapping dialog box appears in its default view.
This dialog box displays all partitions and drives connected to the
blade to which the host is attached.
Note: If you delete a partition that is currently displayed on the
FC Host LUN Mapping dialog box, the internal LUN and
any external LUN mappings for the partition will no longer
appear on the dialog box.
