Chapter 1: Description
I/O Management Unit
Quantum Scalar i6000 User’s Guide 23

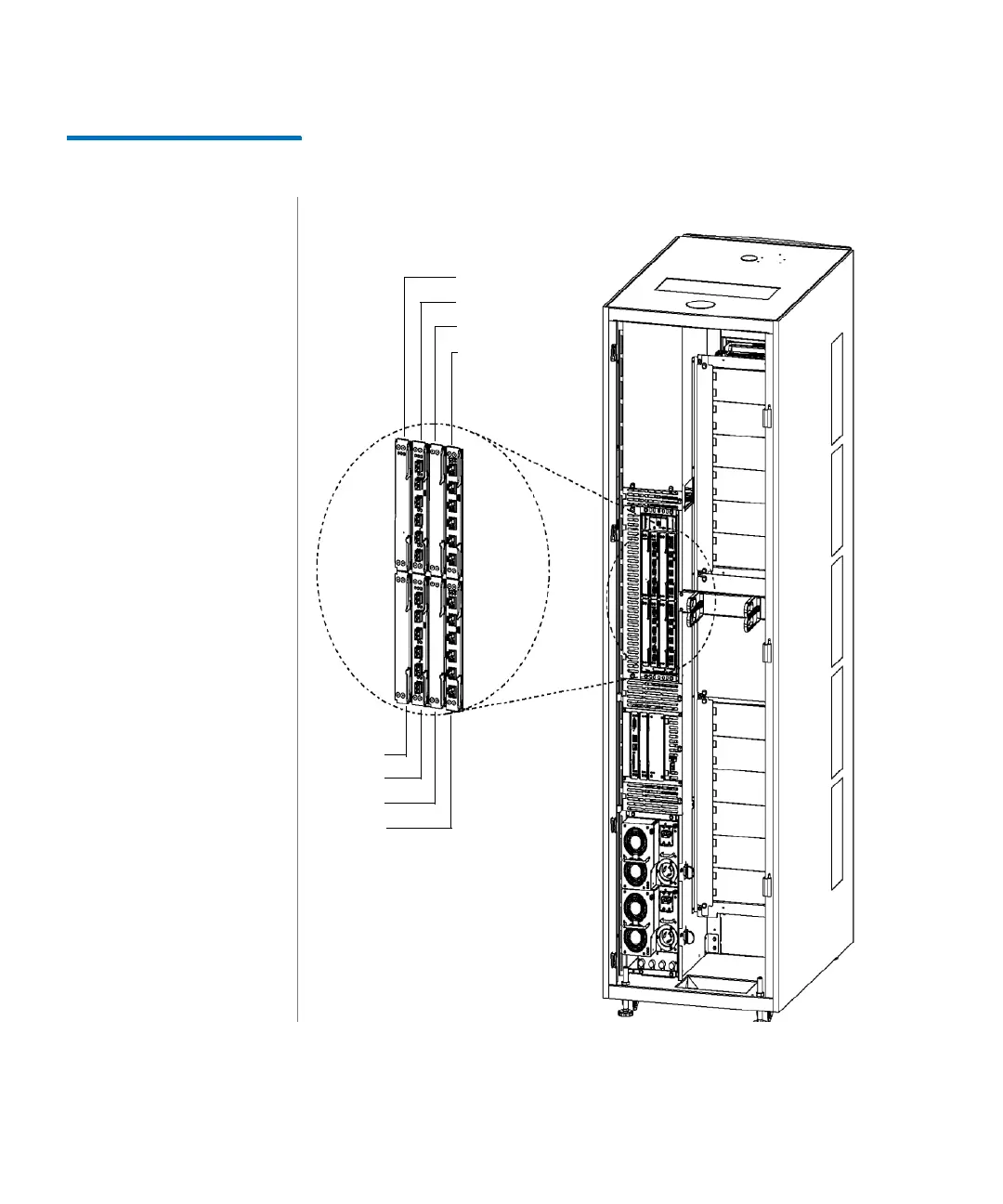

Figure 15 I/O Management
Unit
Bay 1 - Not used
Bay 3 - FCB #1
Bay 5 - FCB #3
Bay 7 - EEB for lower
drive cluster
Bay 2 - CMB
Bay 4 - FCB #2
Bay 6 - FCB #4
Bay 8 - EEB for
upper drive
cluster
CMB = Control management blade
FCB = Fibre Channel I/O blade
EEB = Ethernet Expansion blade
