•The Ethernet Blade Status dialog box displays information about
the Ethernet Expansion Blade (EEB) connection.
You must perform the following procedures while viewing the physical
library.
Viewing I/O Blade Status Information
1 Make sure that you are viewing the physical library. From the View
menu, click the name of the physical library.
2 Click Monitor > Connectivity > IO Blade. The IO Blade Status
dialog box appears.

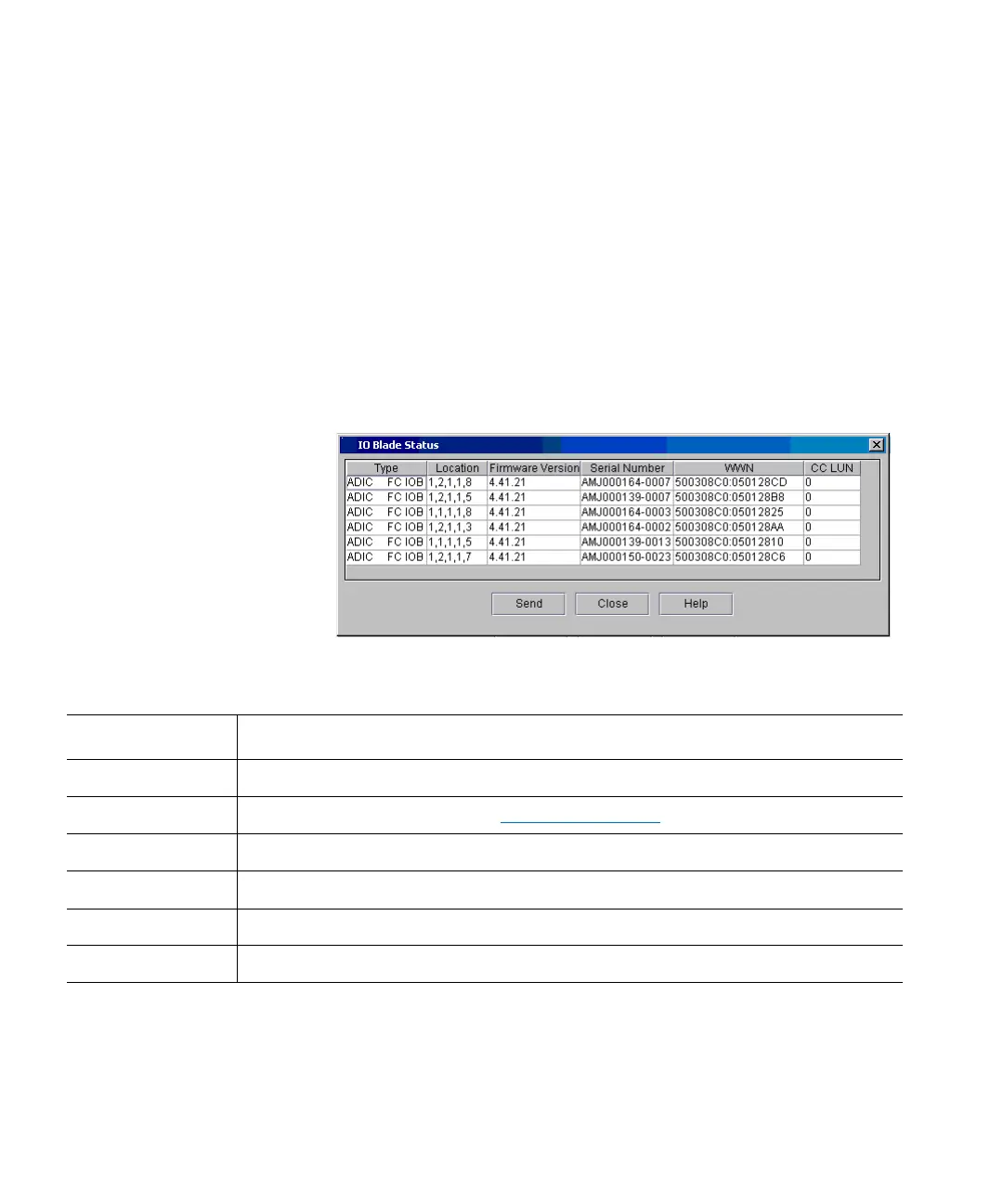

See the following table for descriptions of the elements on the IO
Blade Status dialog box.
3 From the IO Blade Status dialog box, you can perform the
following tasks:
• Change the sorting of I/O blades in the status list (for example,
by type or location) by clicking the column heading by which
Element Description
Type The type of I/O blade (“FC IOB” indicates an I/O blade).
Location The location of the blade (see I/O Blade Locations on page 468).
Firmware Version The firmware version of the blade.
Serial Number The serial number of the blade.
WWN The World Wide Name of the blade.
CC LUN The Command and Control LUN (typically, the CC LUN is mapped to LUN 0).
