Setup with TSMA6B-BP + TSMA6/6B + Downconverter TSMExxDC

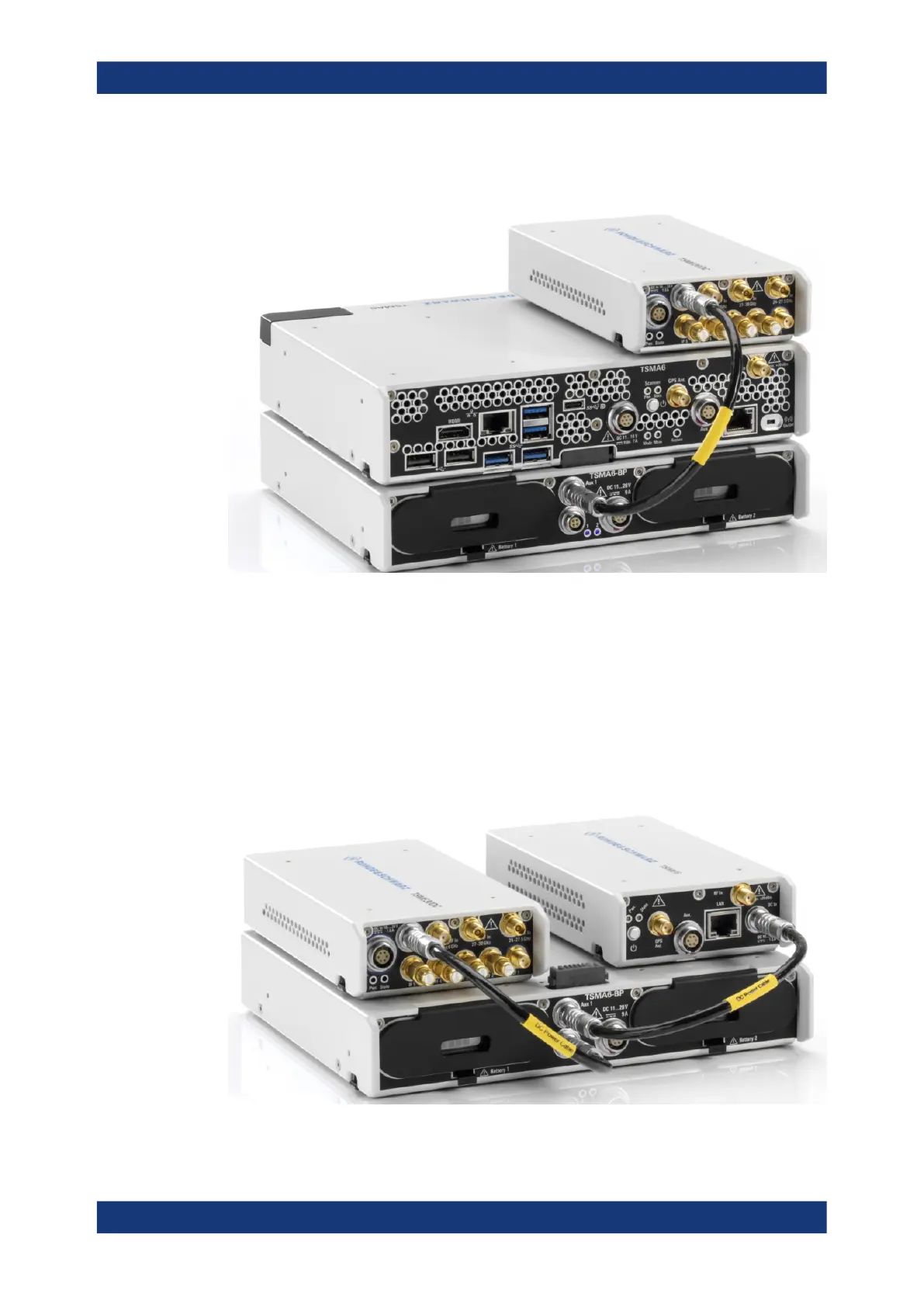

Figure 7-8: TSMA6B-BP + TSMA6/6B + downconverter TSMExxDC
Setup with TSMA6B-BP + TSME6 + TSMExxDC
Connect up to two R&S TSME6/TSMExxDC. Use one of the following solutions.
●
Connect the devices with 2 x R&S TSMA6-BPPT single power cables to AUX1 and
AUX2 port of the R&S TSMA6 (see Figure 7-9).
●
Connect the devices with 1 x R&S TSMA6-BP2T dual power cable to AUX1 or
AUX2 port of the R&S TSMA6 (see Figure 7-15).
Figure 7-9: TSMA6B-BP + TSME6 + TSMExxDC
Vibration-proofed stacking
