To connect the R&S TSME6 and the R&S TSMExxDC with the R&S TSMA6, the fol-

lowing steps must be performed.

4 collar screws are part of the standard accessory of the R&S TSMA6. Additional collar

screws are part of the R&S TSME6/TSMExxDC accessory or can be ordered as spare

parts (R&S no. 4900.0804.00).

1. Screw the collar screws on the top of the R&S TSMA6 with a Torx 8 screw driver.

● Torque: 0.66 Nm ± 0.05 Nm

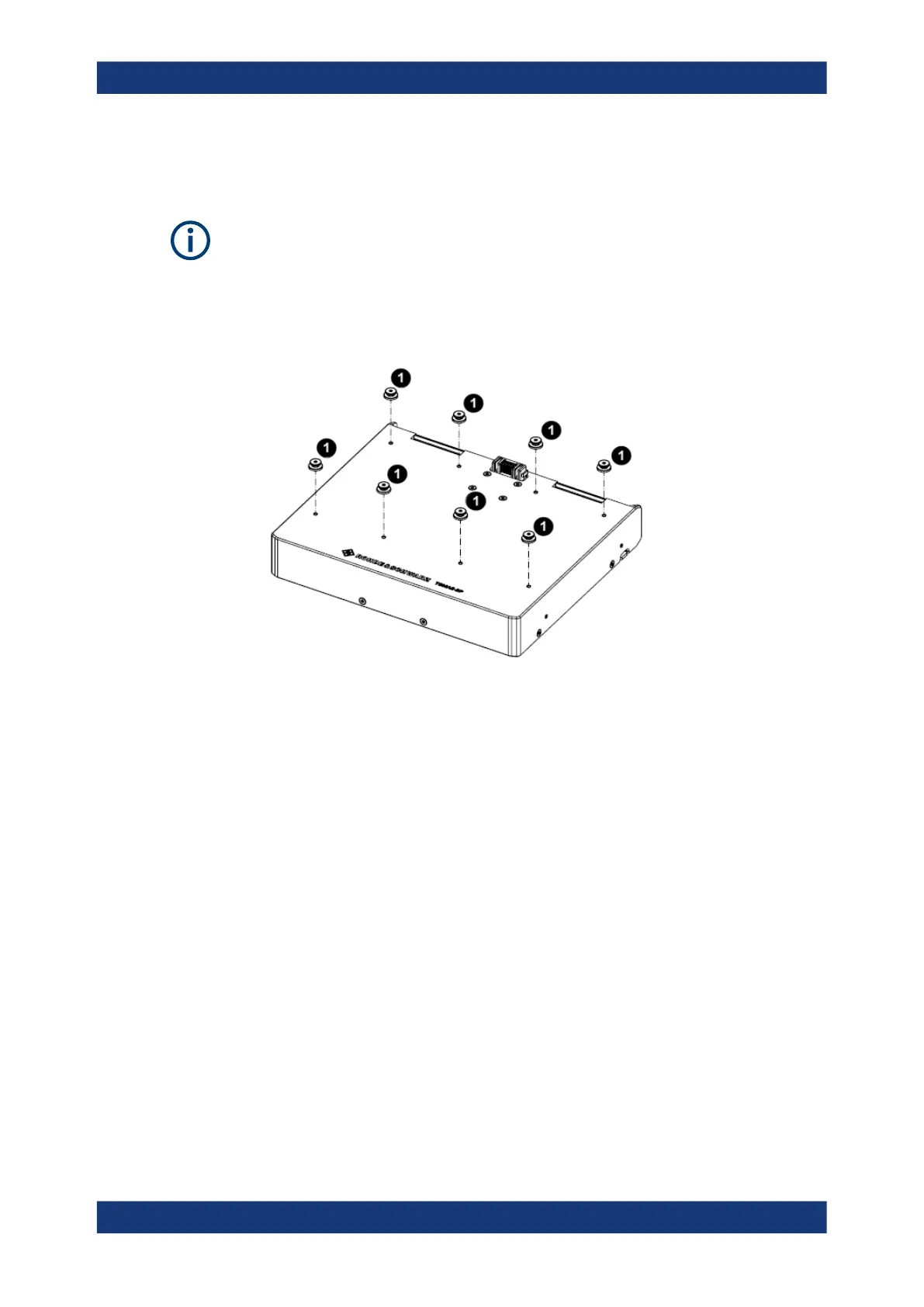

Figure 7-10: Collar screws

1 = 8 x Collar screws (R&S No.4900.0804.00)

2. Align the collar screws with the snap-in holes on the bottom of the R&S TSME6

and R&S TSMExxDC and press these devices down.

Vibration-proofed stacking
