Measurement Setup
R&S
®
TSMA6
73User Manual 4900.8057.02 ─ 11
Setup with TSMA6B-BP + 2 x TSME6 + TSMExxDC

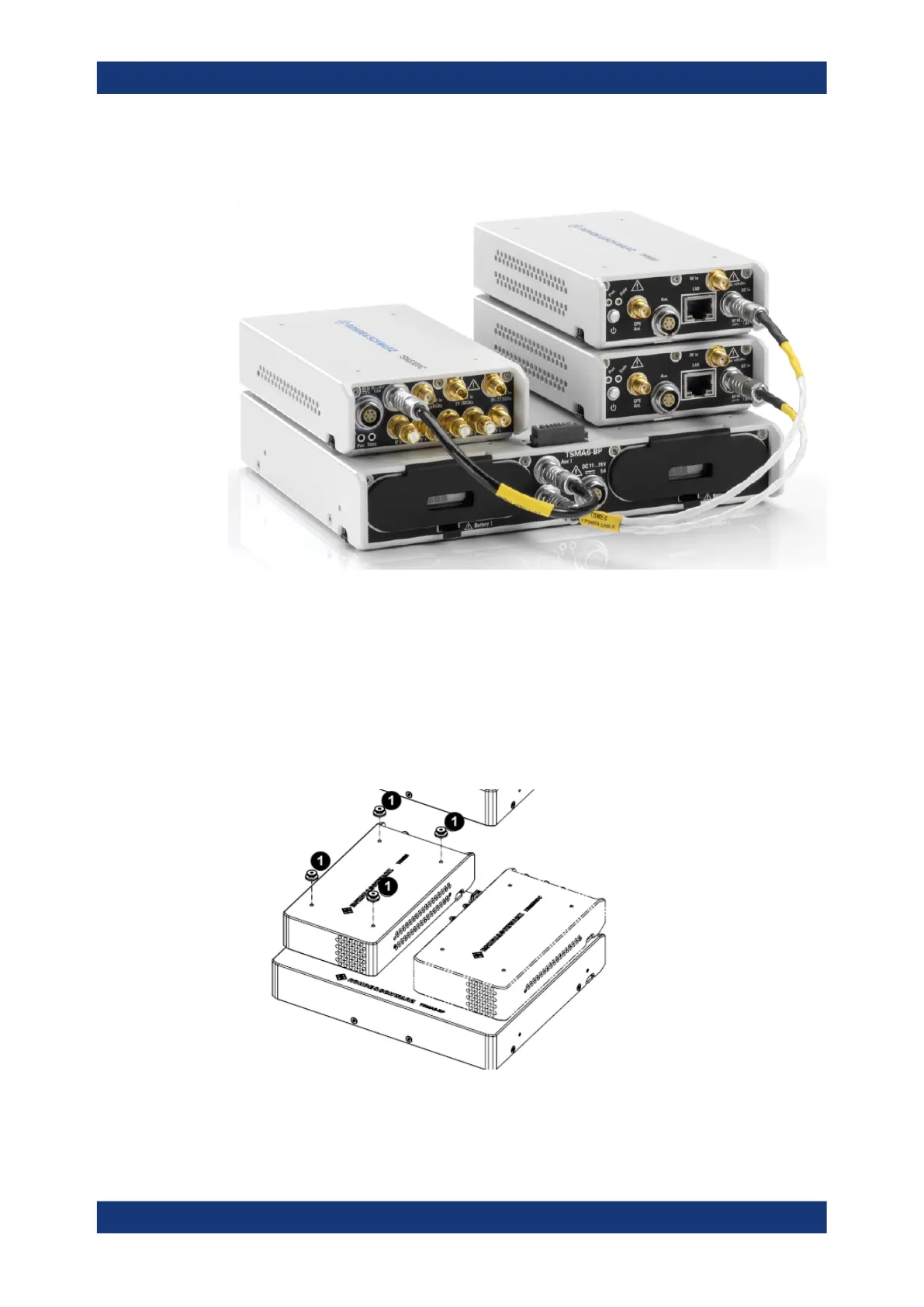

Figure 7-12: TSMA6B-BP + 2 x TSME6 + TSMExxDC
To connect 3 and 4 R&S TSME6/TSMExxDC devices, proceed as follows.
1. Mount the devices 1 and 2 according to steps described in Chapter 7.1.3, "Con-
necting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC/TSMS53DC",
on page 67.
2. For the devices 3 and 4, screw the additional collar screws on top of the already
mounted devices.
Figure 7-13: Aligning R&S TSMA6, 2x R&S TSME6 and R&S TSMExxDC
1 = Collar screws
Vibration-proofed stacking
