1-BIN TRAY UNIT INSTALLATION (B544)
B291/B295/B296/B297 SM
1-28

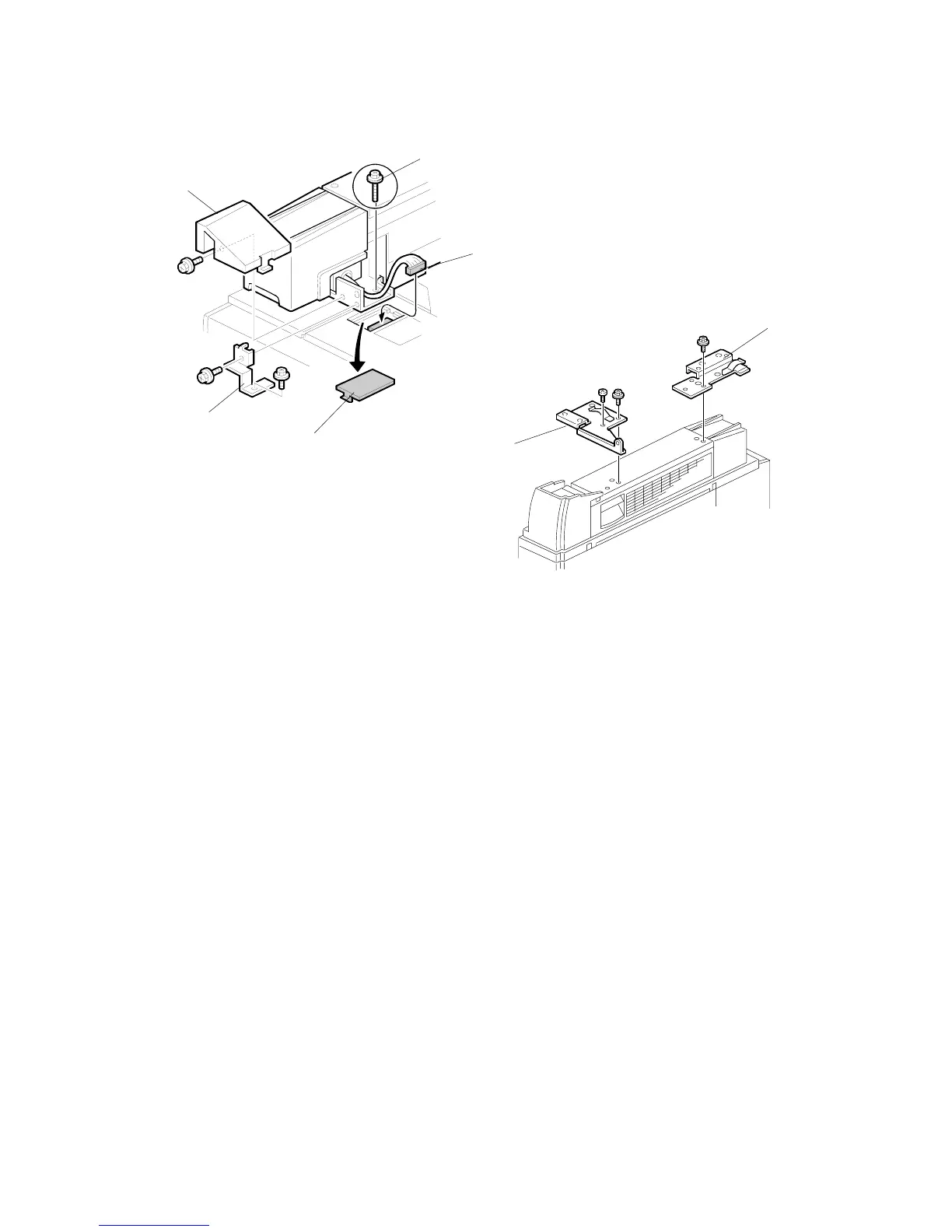

9. Secure the 1-bin tray unit [A] (! x 1 M3 x14).
10. Remove the cover [B].
11. Install the grounding bracket [C] (! x 2 M3 x 6).
12. Connect the harness [D].
13. Install the connector cover [E] (! x 1 M3 x 8)
14. Re-install the front bracket [F] (! x 2 M4 x 7, M4 x 10) and the rear bracket [G]
(! x 1 M4 x 10).
