1-BIN TRAY UNIT INSTALLATION (B544)
B291/B295/B296/B297 SM
1-30

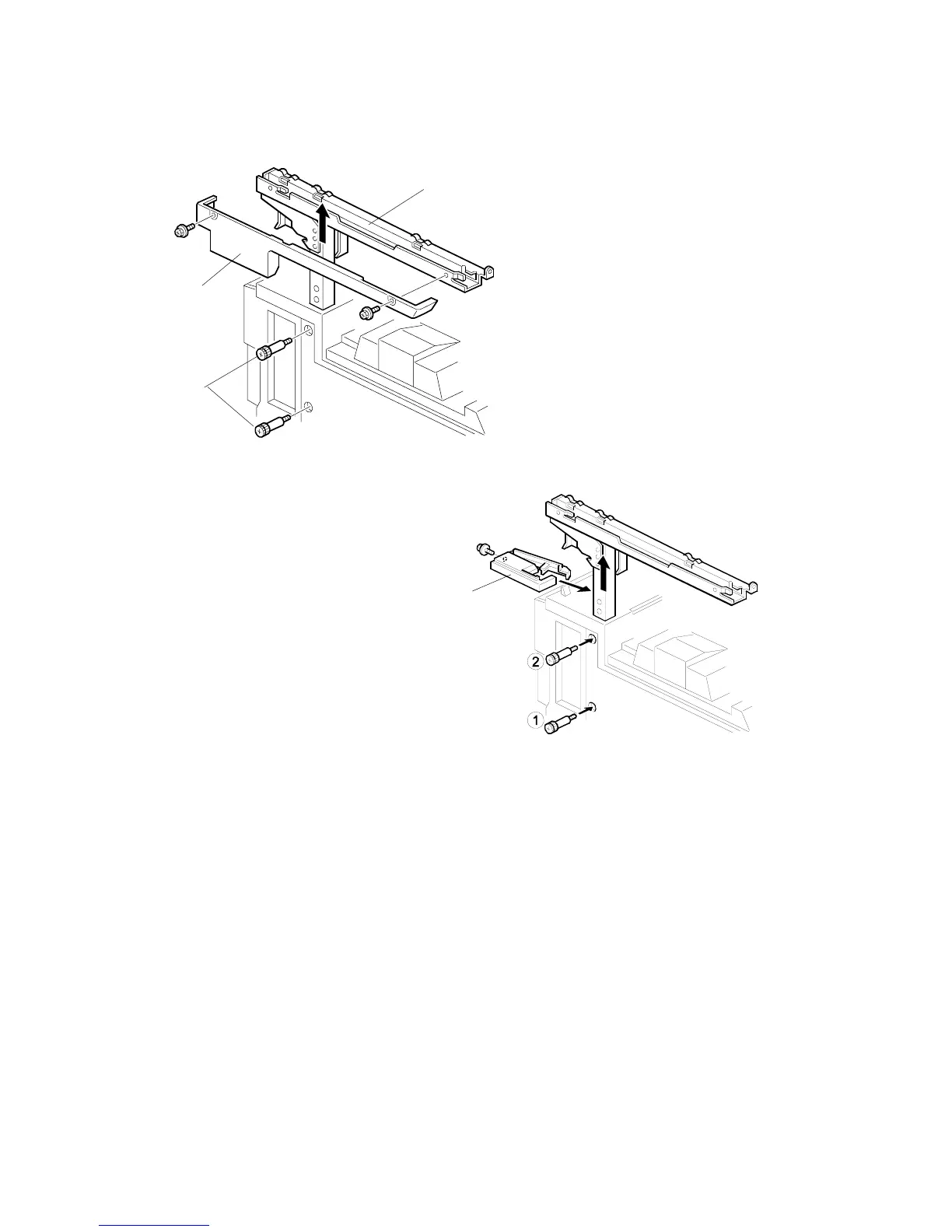

16. Remove the scanner stand cover [A] (! x 2).
17. To adjust the height of the scanner stand, first remove [B] (! x 2) to release the
scanner stand [C].
18. Raise the scanner stand until the next set of screw holes in the main frame can
be seen through the screw holes in the scanner stand.
19. Secure the stand (! x 2: ", #) and install the arm cover [D] (! x 1).
B544I104.WMF
B544I500.WMF
[A]
[B]
[C]
[D]
