1-BIN TRAY UNIT INSTALLATION (B544)
SM B291/B295/B296/B297
1-31
Installation

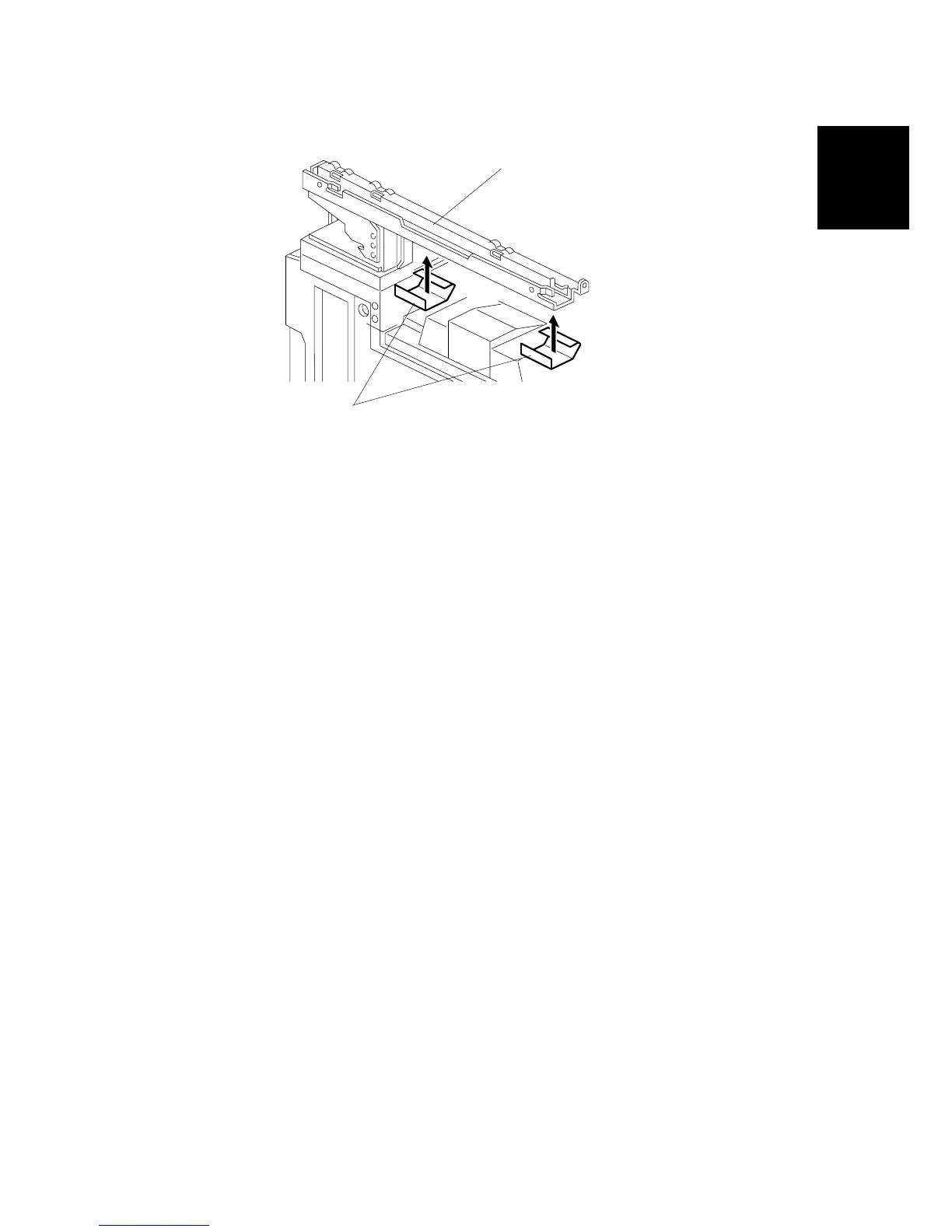

20. Attach two mylar strips [A] to the scanner stand [B].
21. Reinstall the scanner stand cover.
22. Reinstall the scanner unit.
23. Turn on the main switch and check the 1-bin tray unit operation.
B544I106.WMF
[A]
[B]
