Rockwell Automation Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015D-EN-P - February 2015 25
Installation and Wiring Chapter 2
Control Module to Sensing
Module Assembly
You can connect any E300 Control Module to any E300 Sensing Module. The
following illustrations show the steps that are required to make this connection.

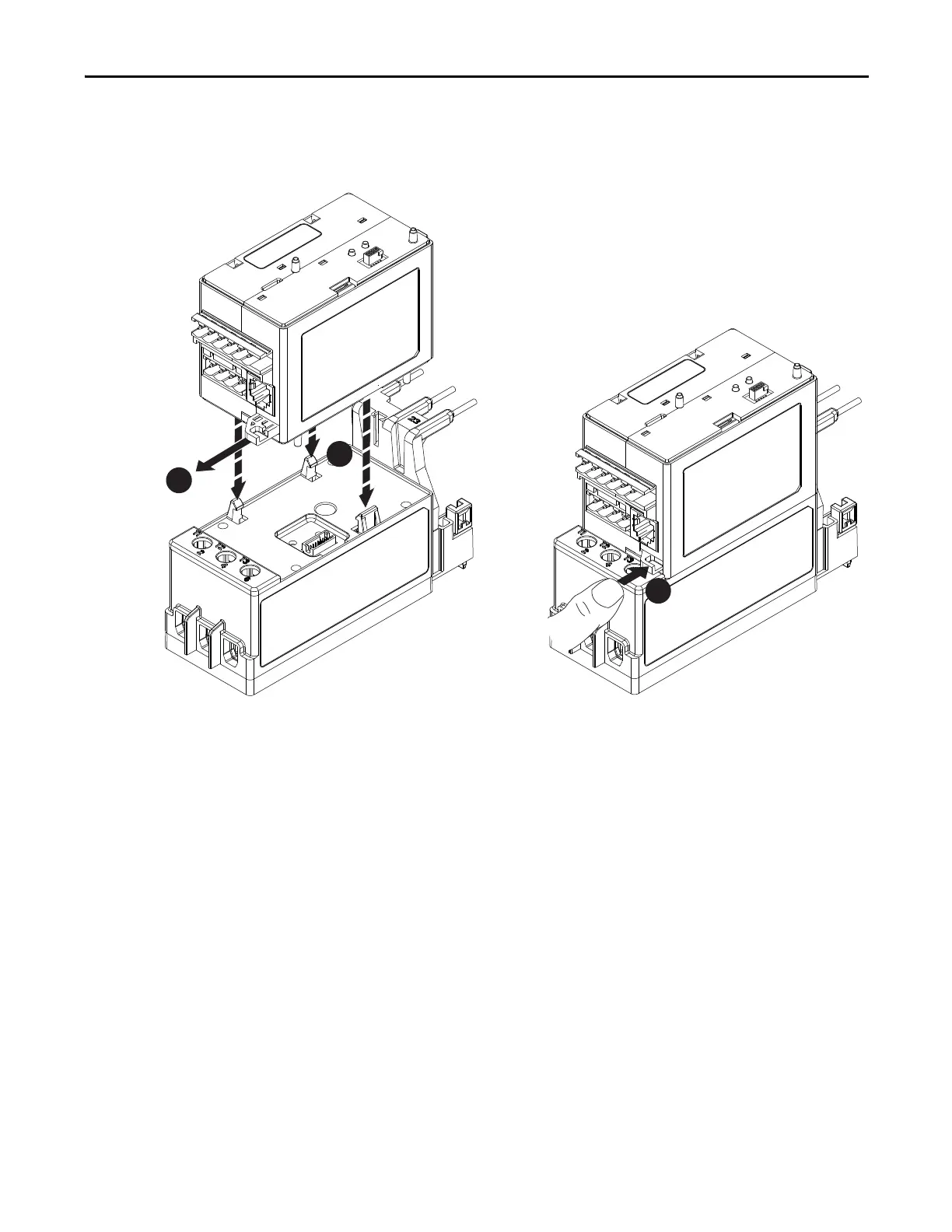

Figure 6 - Control Module to Sensing Module Assembly
2
3
1
