Chapter 2 Installation and Wiring
Expansion Digital Module

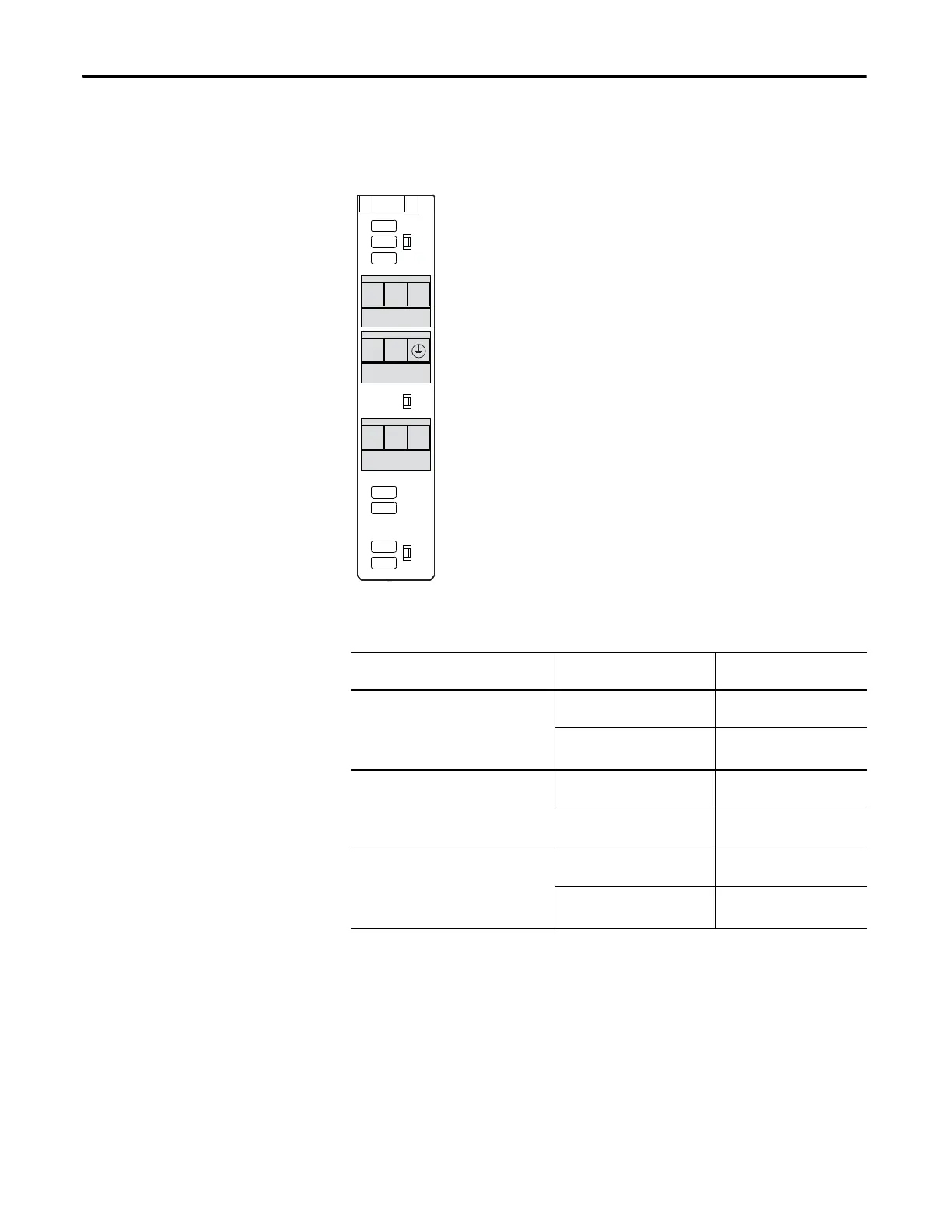

Figure 30 - E300 Expansion Digital Module Terminal Designations
Table 3 - E300 Expansion Digital Module Wire Size and Torque Specifications
Wire Type Conductor Torque
Cat. No.
193-EXP-DIO-42-_ _ _
Stranded/Solid [AWG]
Single
24...12 AWG
5 lb-in
Multiple
(stranded only)
24...16 AWG
5 lb-in
Flexible-Stranded with Ferrule Metric
Single
0.25…2.5 mm
2
0.55 N•m
Multiple
0.5...0.75 mm
2
0.55 N•m
Coarse-Stranded/Solid Metric
Single
0.2...2.5 mm
2
0.55 N•m
Multiple
0.2...1.5 mm
2
0.55 N•m
IN0 IN1 INC
IN2 IN3
RS2
R04 R14 RC3
