Diagnostic Station Chapter 3

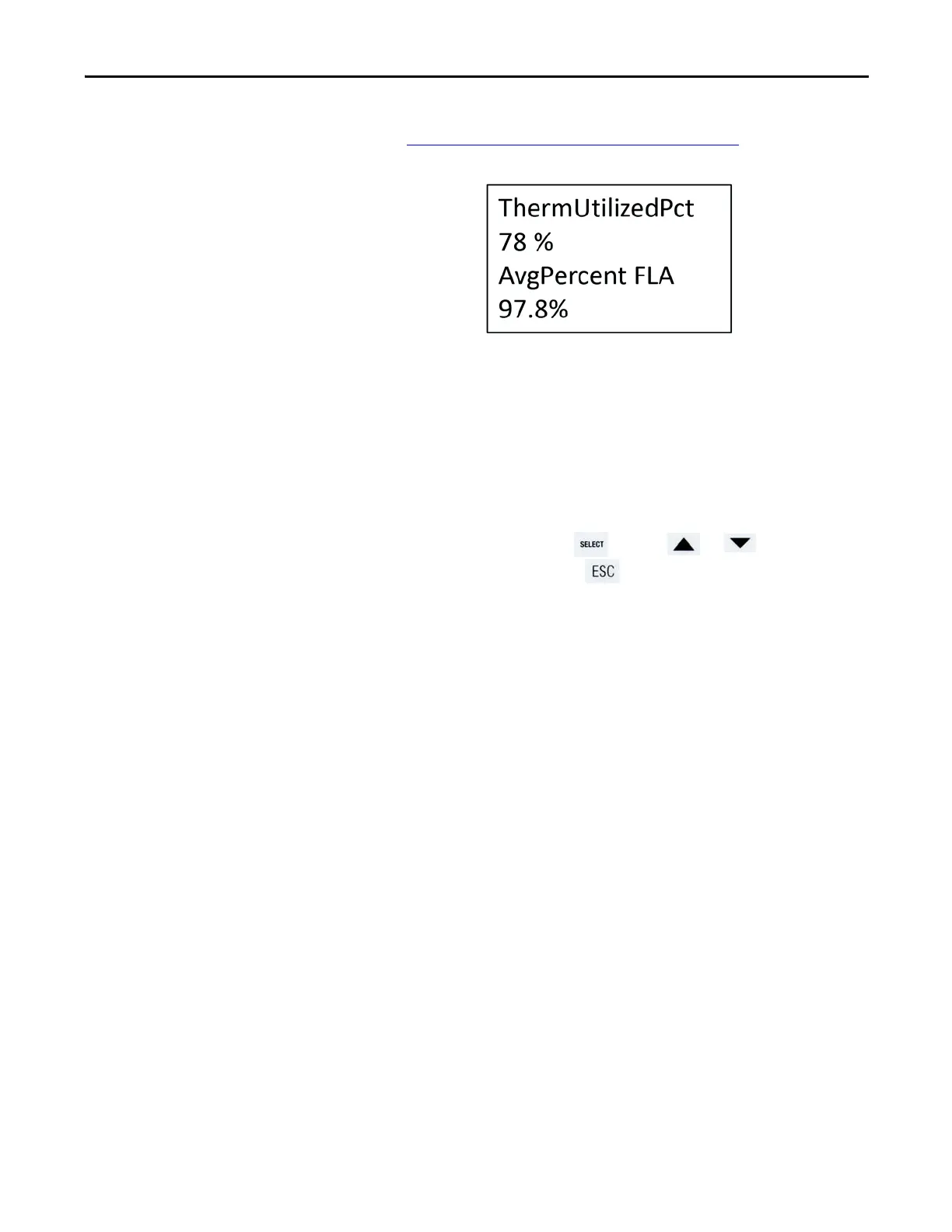

The user-defined screens allow you to select up to two parameters per screen.
Refer to Diagnostic Station User-defined Screens on page 86
to configure the
Screen# and Parameter# (Parameters 428…435).
If you do not press any navigation keys for a period that is Defined by Display
Timeout (Parameter 436), then the Diagnostic Station will automatically cancel
any editing modifications, restore the previous value, and return to its
programmable display sequence.
Stopping the Display Sequence
To stop the display sequence, press . Use the or keys to manually
sequence through the displays. Press to return to the automatic display
sequence.
If you do not press any navigation keys for a period that is Defined by Display
Timeout (Parameter 436), then the E300 Diagnostic Station automatically
returns to its programmable display sequence.
