Chapter 3 Diagnostic Station
Automatic Trip and Warning
Screens

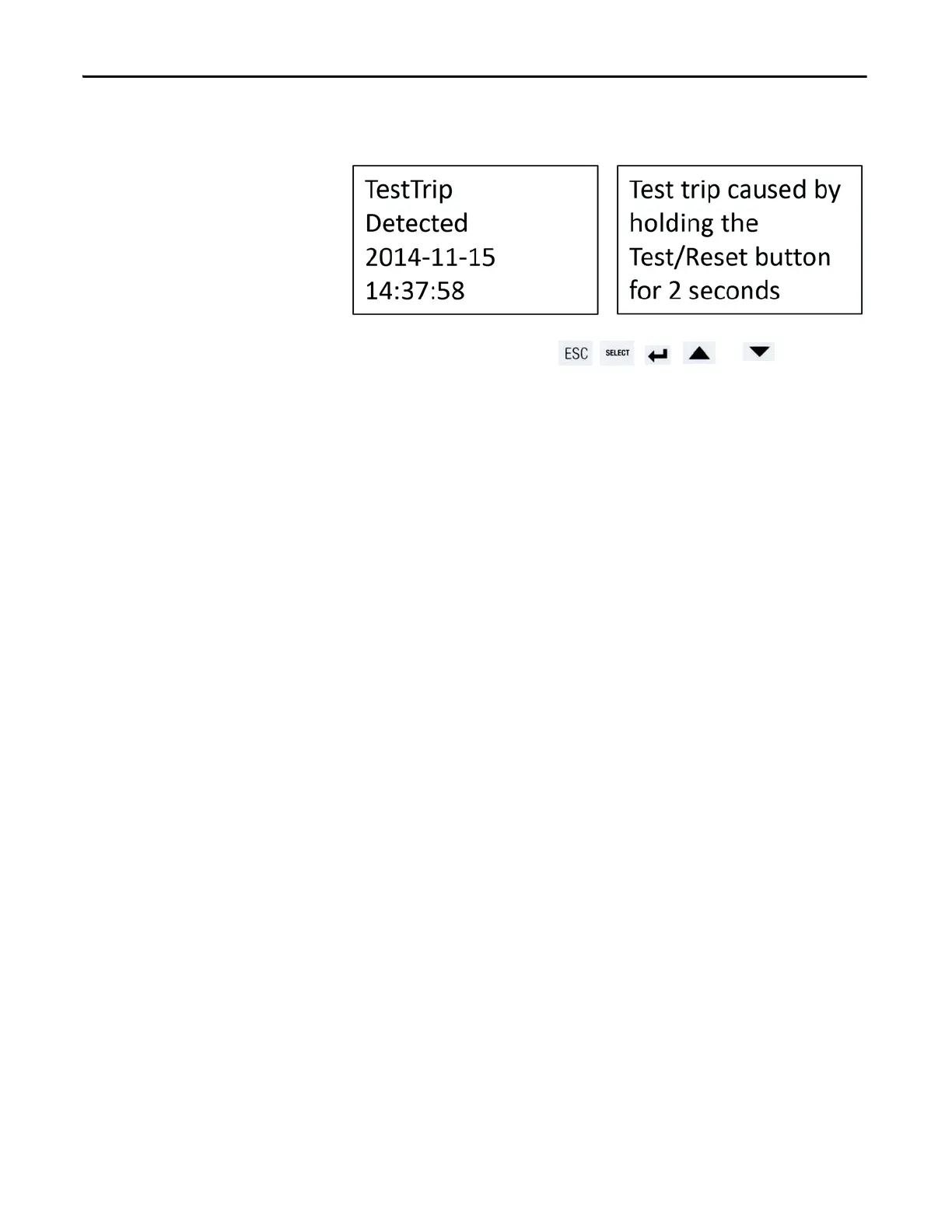

When the E300 Electronic Overload Relay is in a trip or warning state, the E300
Diagnostic Station automatically displays the trip or warning event.
Press any of the navigation keys ( , , , , or ) to return to
the automatic display sequence.
When the trip or warning event clears, the E300 Diagnostic Station
automatically returns to its programmable display sequence.
If a different parameter is displayed and you do not press any navigation keys for a
period that is Defined by Display Timeout (Parameter 436), then the E300
Diagnostic Station will automatically return to the trip or warning screen if the
trip or warning event is not cleared.
