Chapter 3 Diagnostic Station

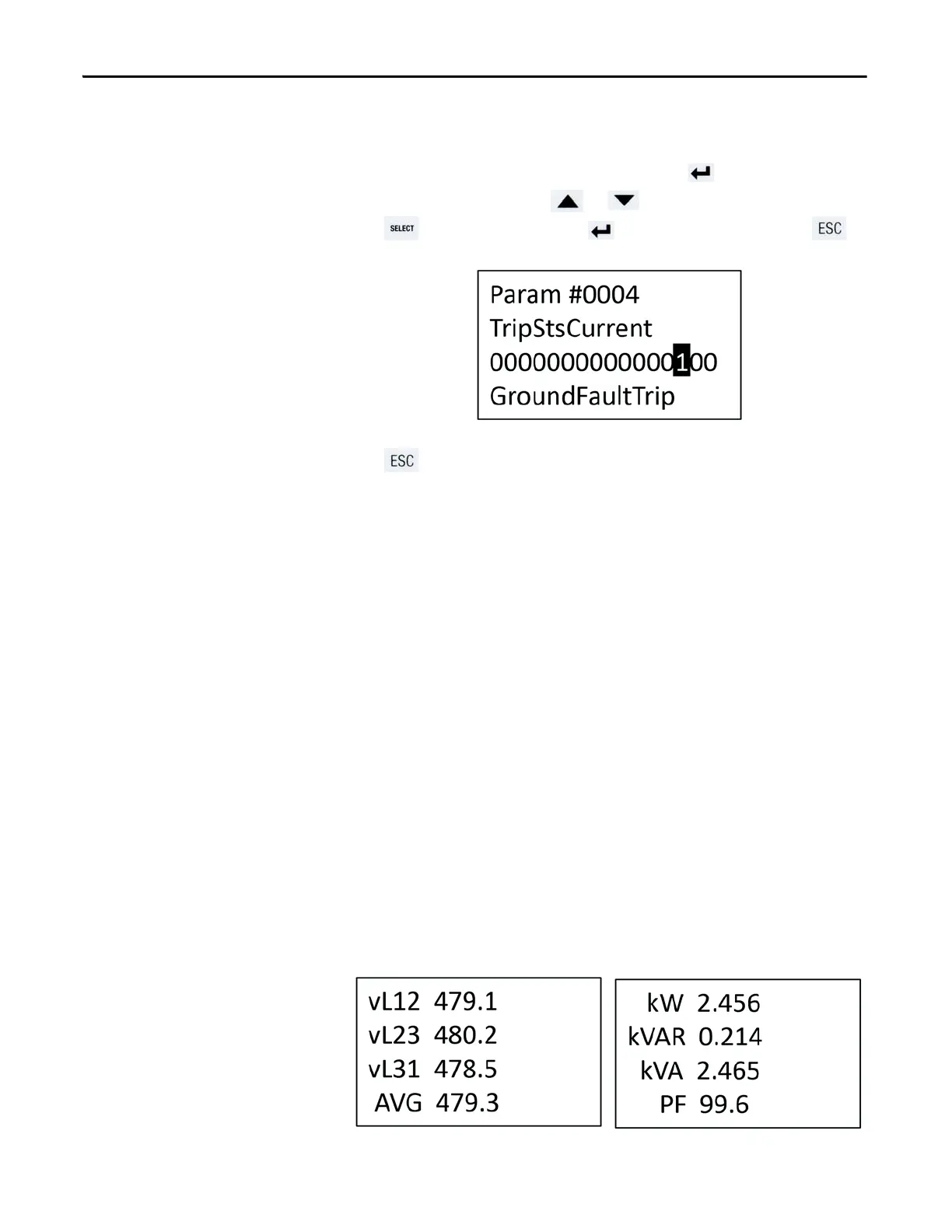

Editing a Bit Enumerated Parameter
When editing a bit enumerated parameter, press the key to view the
description of each bit. Use the or keys to select the new bit value.
Press to edit the next bit. Press to save the new value or press to
cancel the modification and restore the previous value.
Press to return to the navigation menu.
If you do not press any navigation keys for a period that is Defined by Display
Timeout (Parameter 436), then the E300 Diagnostic Station automatically
cancels the modification, restores the previous value, and returns to its
programmable display sequence.
Programmable Display
Sequence
Display Sequence
The E300 Diagnostic Station sequentially displays up to seven screens every five
seconds.
• Three-phase current
• Three-phase voltage
• To ta l p o we r
• User-defined screen 1
• User-defined screen 2
• User-defined screen 3
• User-defined screen 4
The three-phase voltage and total power screens are only included in the
sequence when the E300 Electronic Overload Relay has a voltage, current, and
ground fault current (VIG)-based Sensing Module.
