432 Rockwell Automation Publication 193-UM015D-EN-P - February 2015
Chapter 10 Firmware Updates
E300 Firmware Update
Example

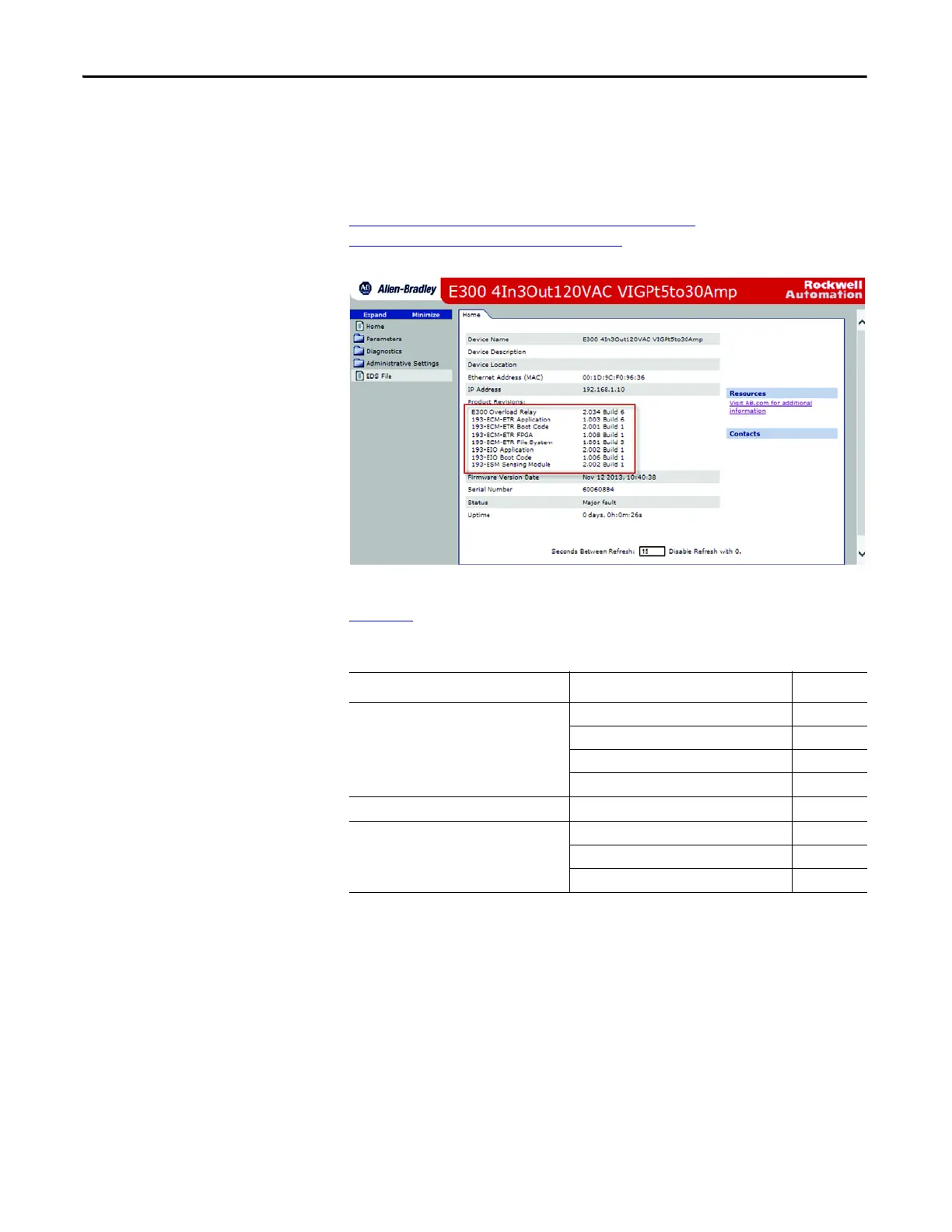

Updating the firmware for an E300 Electronic Overload Relay involves updating
multiple internal firmware subsystems. The Communication Module, Control
Module, and Sensing Module have their own firmware. This example explains the
process to update an E300 Electronic Overload Relay from v2.034 to v3.033
firmware. Download the firmware update files from
http://compatibility.rockwellautomation.com/Pages/
MultiProductDownload.aspx?crumb=112.
Table 502
contains the firmware files that are associated with v3.033.
Table 502 - E300 Firmware v3.033 Files
The firmware for the EtherNet/IP communication and sensing module did not
change in the update for an E300 Electronic Overload Relay with firmware
v2.034 to v3.033. No firmware update is needed for the E300 EtherNet/IP
Communication Module and Sensing Module. However, five control module
firmware subsystems changeed. Update the following control module firmware
subsystems:
• 193-EIO Boot Code
• 193-EIO Application
• 193-EIO Uncompressed EtherNet/IP EDS File
• 193-EIO Compressed EtherNet/IP EDS File
E300 System Revision 3.033
E300 Communication Module
193-ECM-ETR Application 1.003
193-ECM-ETR Boot Code 2.001
193-ECM-ETR FPGA 1.008
193-ECM-ETR File System 1.001
E300 Sensing Module 193-ESM Sensing Module 2.002
E300 Control Module
193-EIO Application 3.001
193-EIO Boot Code 1.007
193-EIO EDS Files 3.001
