Editing Parameters
Editing a Configuration Parameter
The E300 Diagnostic Station allows you to edit configuration parameters using a
group menu system or by a linear list. To start the navigation menu, press the
key. You will be prompted to view parameters by groups, parameters in a
linear list, or E300 system information. Choose the appropriate method and
navigate to the parameter to be modified.

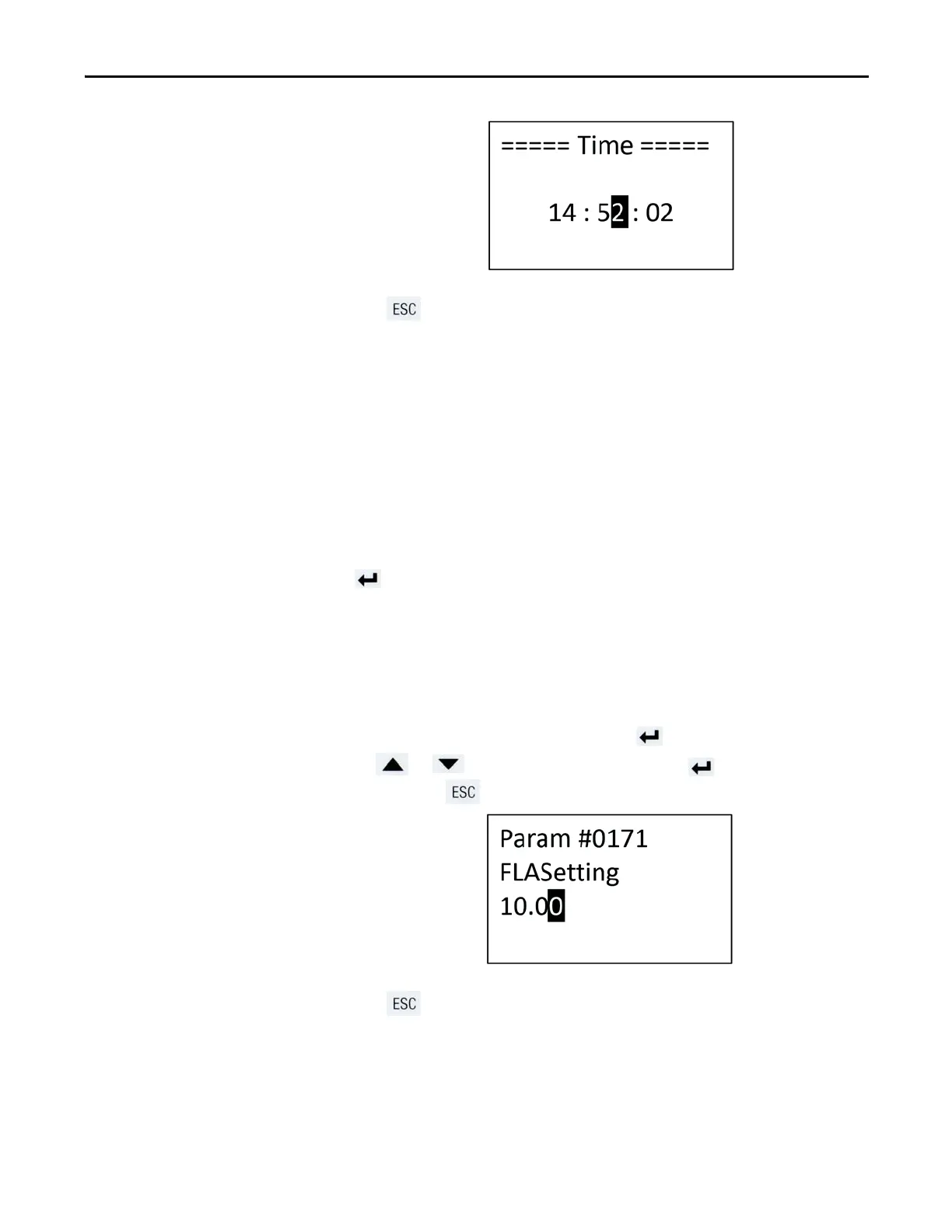

Editing a Numeric Parameter
To edit a configuration parameter, press the key to modify the value. Use
the or keys to select the new value. Press to save the new system
values or press to cancel the modification and restore the previous value.
Press to return to the navigation menu.
If you do not press any navigation keys for a period that is Defined by Display
Timeout (Parameter 436), then the E300 Diagnostic Station automatically
cancels the modification, restores the previous value, and returns to its
programmable display sequence.
