The options are as follows:
Gap + I-Mark
Adjusts both the Gap sensor and I-mark sensor.
Gap
Adjusts the Gap sensor.
I-Mark
Adjusts the I-mark sensor.
Dispenser
Adjusts the dispenser sensor.
◦ Does not appear when the optional cutter kit or partial kit is installed.
Linerless
Adjusts the linerless sensor.
◦ Appears only if the optional cutter kit or partial cutter kit is installed.
The procedure to auto-calibrate the media sensor is as follows:
1. Open the top cover. (Cover Open error occurs.)
2. Load the media.
◦ For [Gap + I-Mark]/[Gap]/[I-Mark]

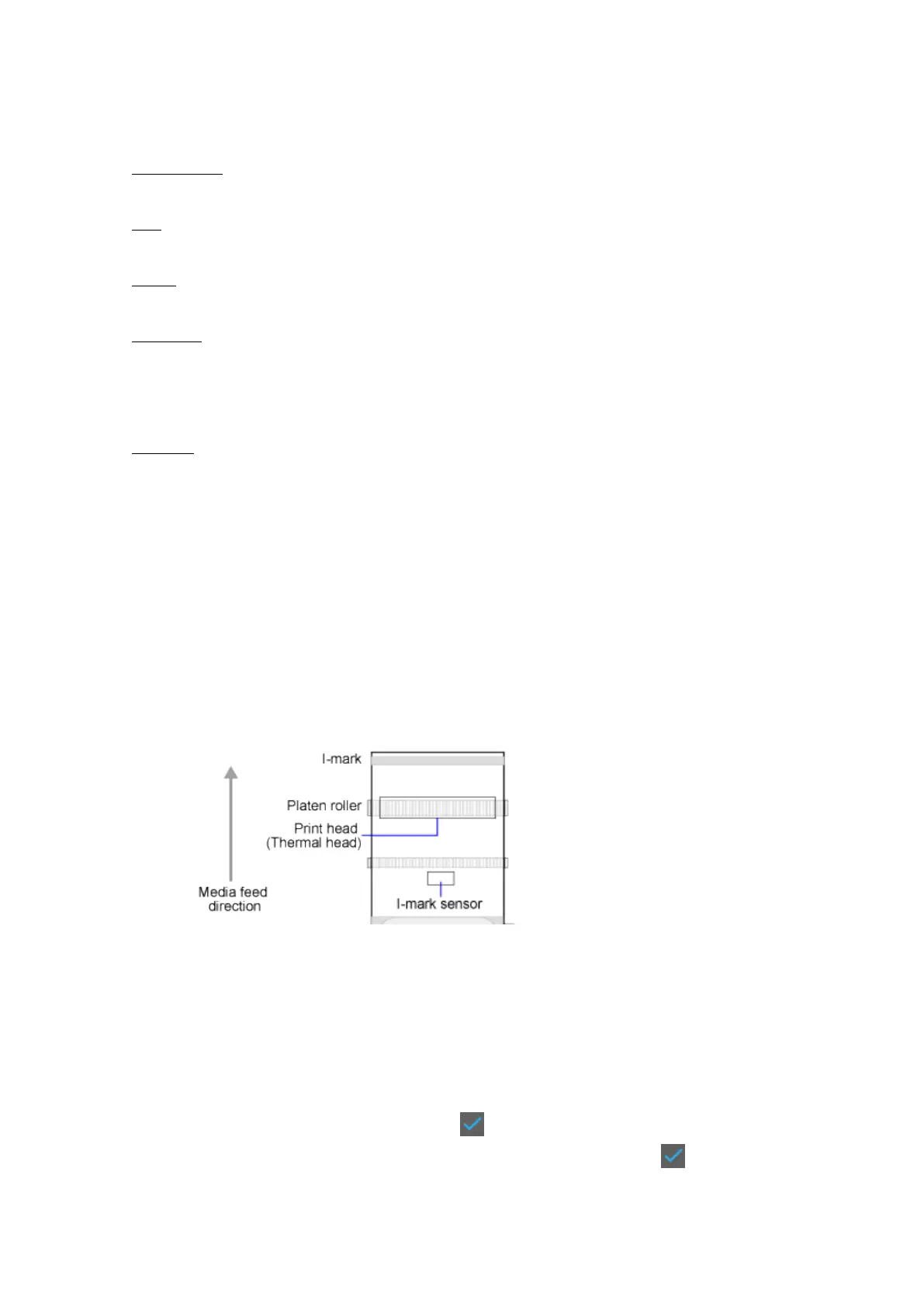

Remove the label from the liner and pass the liner above the I-mark sensor so that it does not
detect the I-mark (black mark).
◦ For [Dispenser]
Set the media for dispenser mode and pass the label through the media discharge outlet.
◦ For [Linerless]
Pass the media through the discharge outlet of the optional cutter/partial cutter kit.
3. Close the top cover.
4. Tap the type of sensor from the list to be adjusted.
5.
When the confirmation screen appears, tap to start the sensor adjustment.
6.
The result of the sensor adjustment is shown. To exit the adjustment, tap .
If a failure message appears, set the media correctly and try again.
7. Set to Offline mode. Tap [FEED] to confirm that the media is fed correctly.
