Parts Identification
36

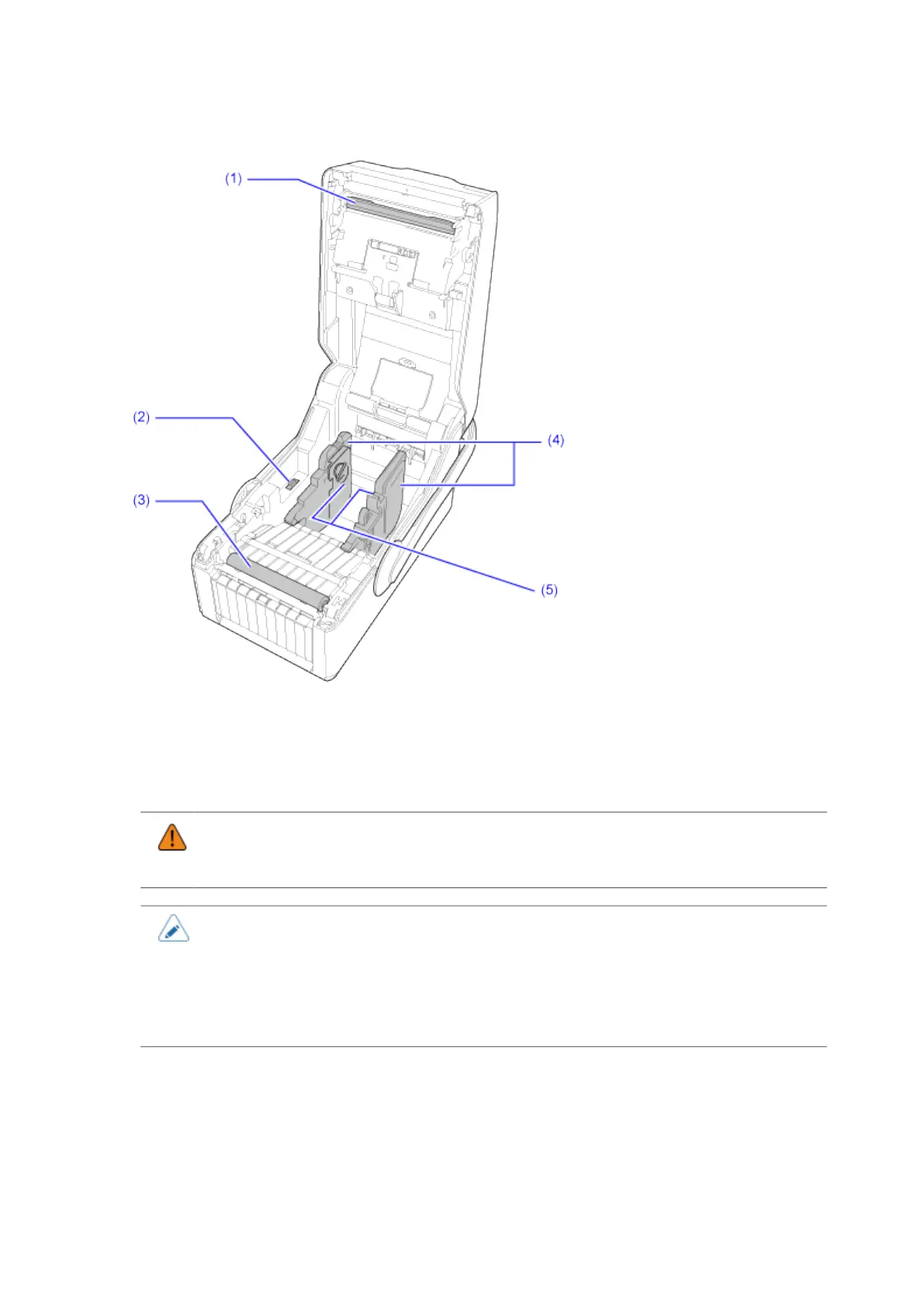

Internal View
(1) Print head (Consumables)
Creates an image on the media. Clean the print head regularly.
(2) USB connector (Type A)
Enable the storage of printer settings information with USB memory.
• Be sure to perform a virus check on the USB memory before connecting it to the
printer. SATO Corporation shall not be held responsible for any printer malfunctions
caused by a virus spread via USB memory.
• The size of the USB memory that can be connected inside the printer is as follows.
◦ Length: under 37 mm (1.46") (excludes the metal part of the connector)
◦ Width: under 20 mm (0.79")
◦ Thickness: under 8 mm (0.31")
(3) Platen roller (Consumables)
(4) Media guide
(5) Flap
