Page 114
STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0

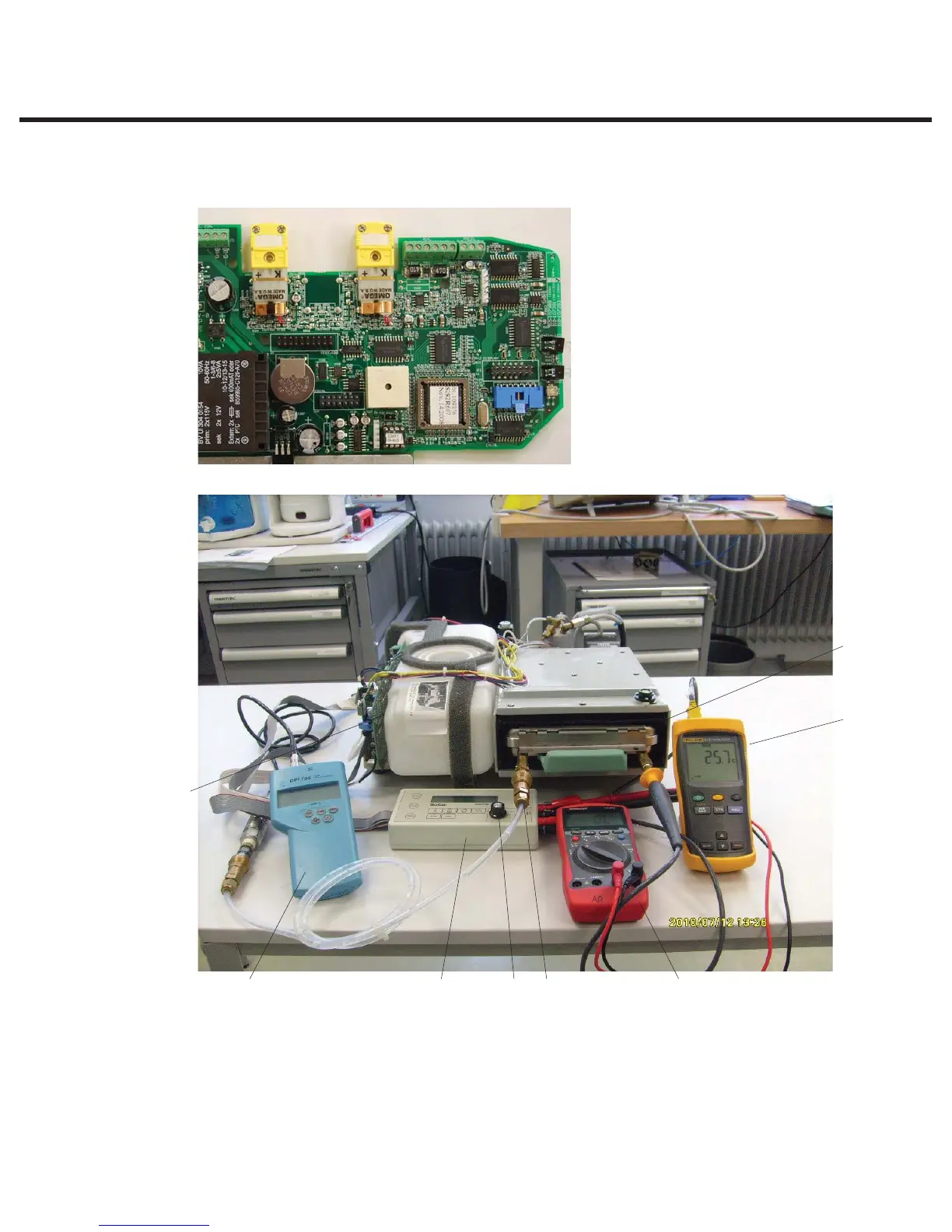

5. STAT IM 2000S Calibration
1. Control box
2. Controller board
3. SELECT knob
4. Digital voltmeter
5. Calibration cassette
6. Thermocouple
7. Digital thermometer
8. Pressure meter
Figure 3
STATIM 2000/2000S/2000 G4 Service Guide
Note: The cover MAY be removed and the control box attached if deemed appropriate, but
the unit can be calibrated with the cover on as well as adjustments to the calibration offsets
are undertaken using the keypad on the units.
18
2
34
5
6
7
