Page 24
STAT
IM
2000/2000S Service Guide
96-108639 Rev 3.0
2. Tools, Maintenance Schedules, Procedures and Testing

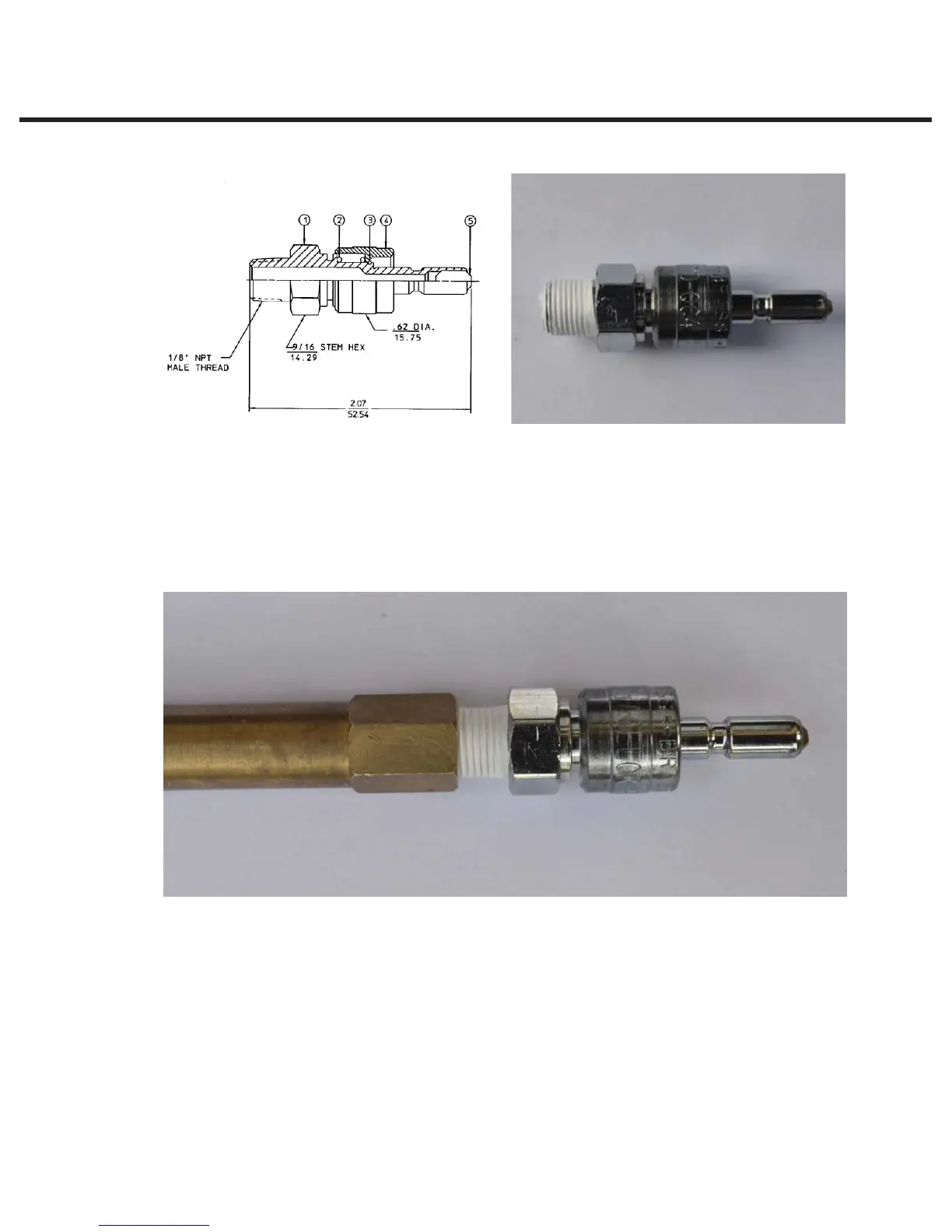

Figure 10. Male Swagelok B-QC4-S-2PM ‘Quick Connect’ fitting.
Attach and tighten the ‘Quick Connect’ fitting to the cassette extension fitting in place of the 1/8
NPT to ¼ BSP adaptor (see Figure 11).
NOTE: PTFE tape should be used when assembling these parts to ensure a steam tight seal.
Figure 11. Male Swagelok ‘Quick Connect’ fitting and cassette extension fitting assembly.
Attaching the pressure tube to the cassette
The pressure tube (see Figure 12) supplied with the calibration cassette is designed to insulate
the pressure transducer used with the pressure reference meter from the high temperatures
experienced during sterilization, which may damage the transducer.
