2. Tools, Maintenance Schedules, Procedures and Testing
STATIM 2000/2000S/2000 G4 Service Guide

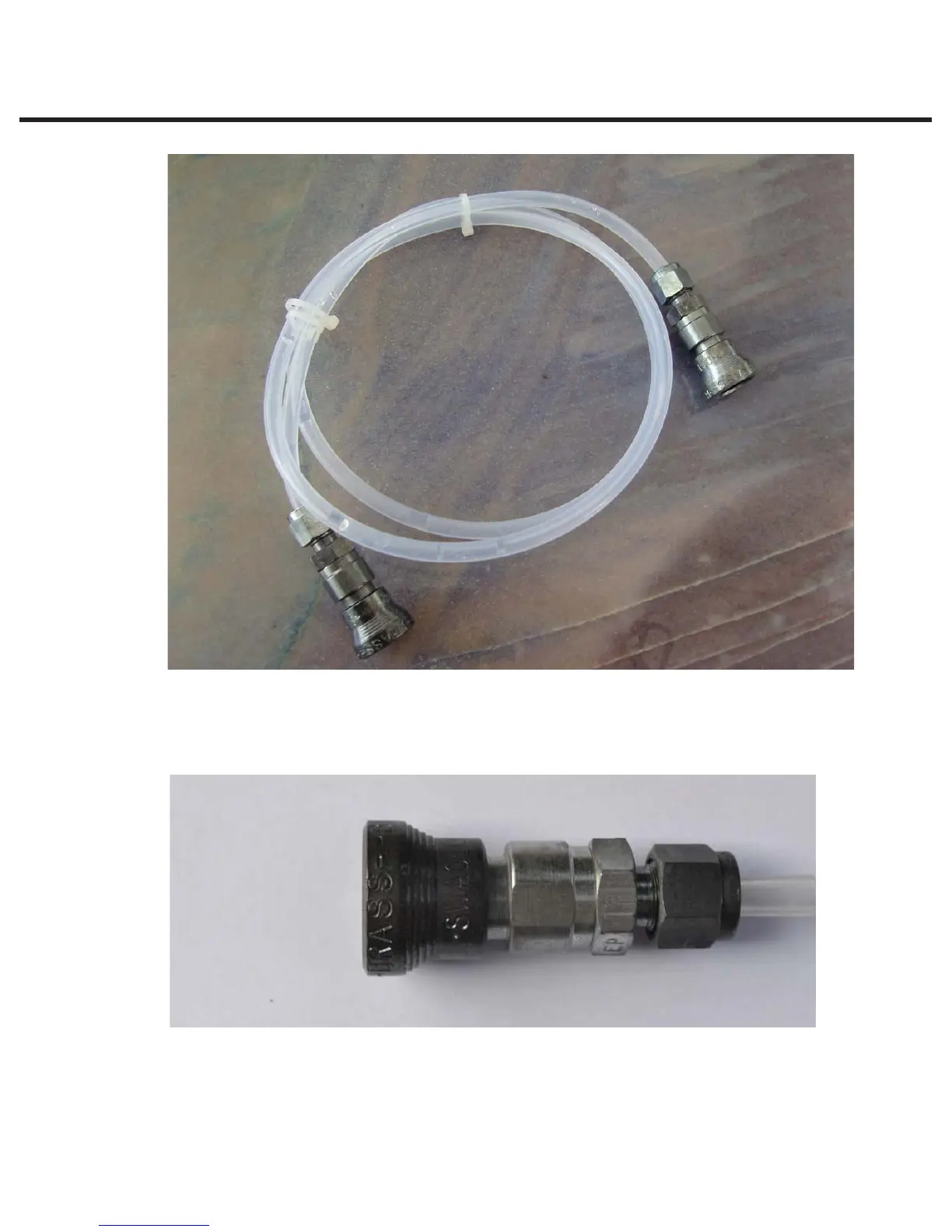

Figure 12
The tube is fitted with a Swagelock, self sealing ‘Quick Connect’ QC4 female connector (see
Figure 13) on either end. These connectors attach to the male ‘Quick Connect’ fitting shown in
Figure 10 above.
Figure 13. Swagelock ‘Quick Connect’ QC4 female connector
To attach the pressure tube to the cassette (via the male Swagelok connector), press the male and
female fitting together until a ‘click’ is heard and the couplings are firmly attached. (See Figure 14)
